Lamona LAM2301 - General Information & Operation; Control Panel Layout

www.howdens.com
Page _ 7
1. Exhaust / Recirculation Vent
2. Extractor Body
3. Light
4. Control Panel
5. Grease Filter
6. Extractor Facia
General Information & operation

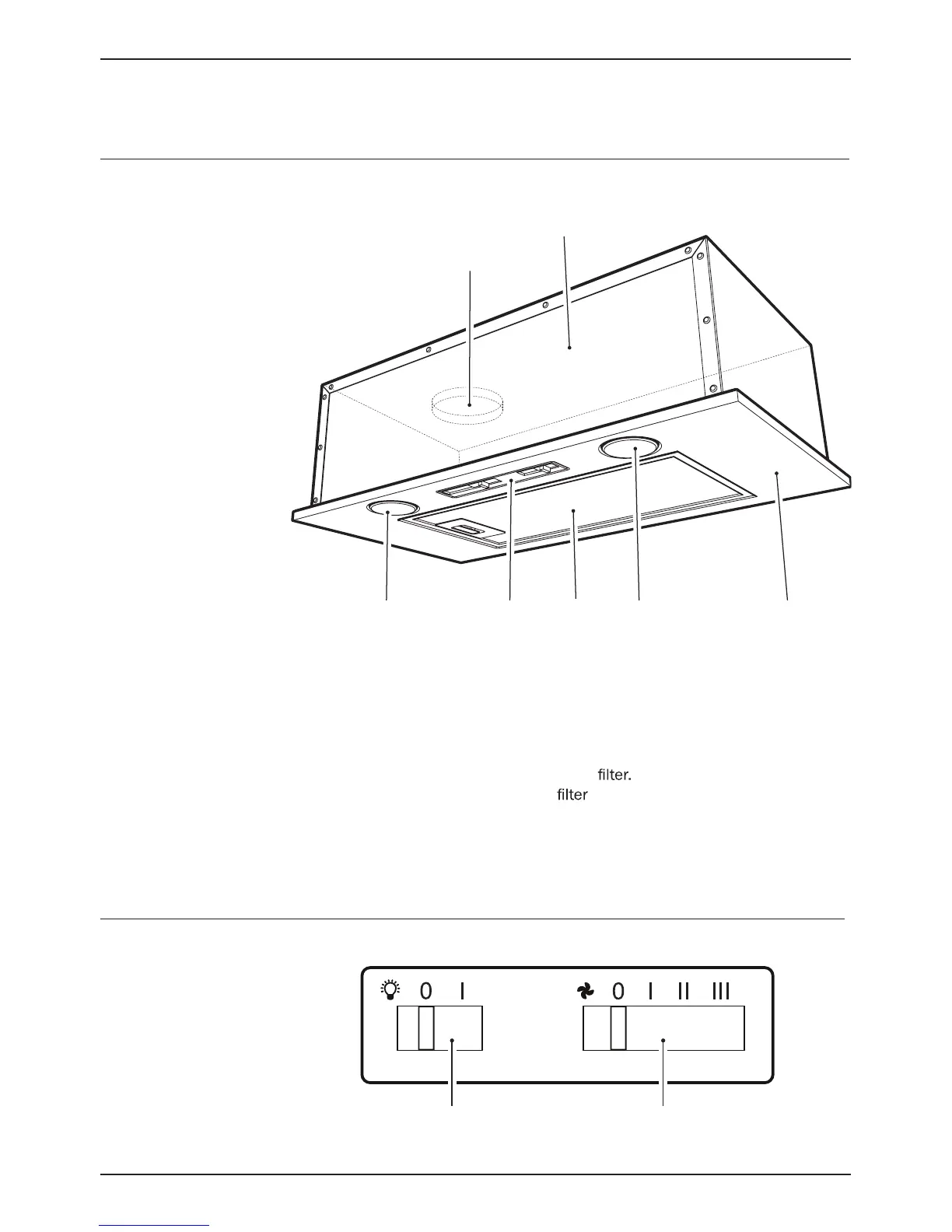

Extractor layout
Control panel layout
7. Light off / Light on
8. Extraction off (0)
Low speed (I)
Medium Speed (II)
High Speed (III)
3. 4. 5. 3. 6.
1.
2.
7. 8.
Dimensions:
Extractor width: 525mm
Extractor depth: 275mm
Extractor height: 162mm
Aperture Size: 495mm x 257mm
( Not including vent adapter)
Features:
• Slider control operation.
• 3 speed extraction.
• 2 x 40W GU10 lamps.
• Ducted-out or recirculation modes.
• Metal grease
• Carbon HJA2906
(optional for recirculation installation only)
• Ducting kits APL2805/6 / 7
(optional)
