Lamona LAM8702 - Tools Required; Installation; Parts Supplied

3
Exclusive to Howdens
10mm open
ended spanner
Flat and
cross head
screw drivers
DO NOT use high
speed impact
power tools.
B (3x15mm)
A (4.5x10)
x2
x1
x2
x2 x5
x1

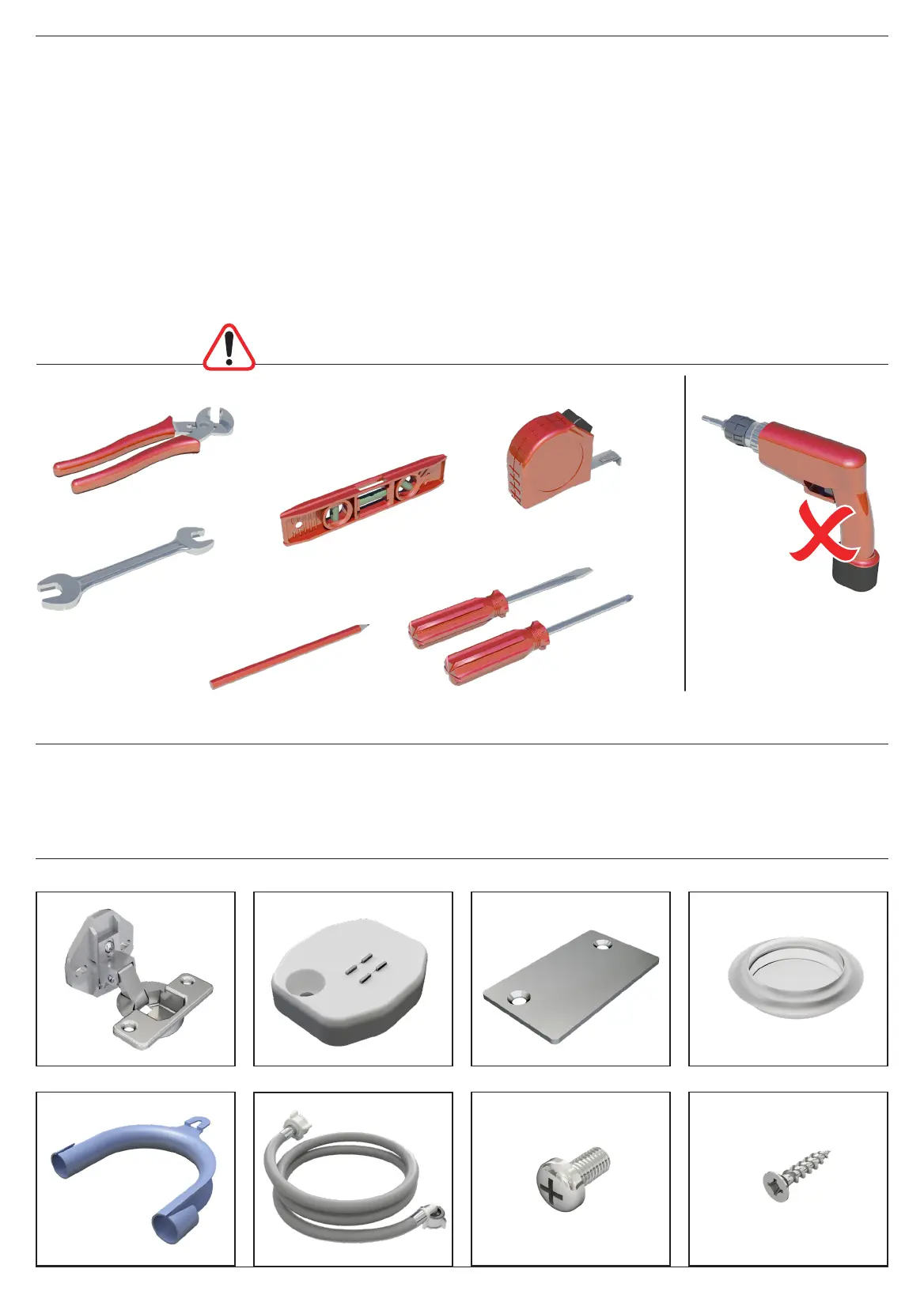

Tools required
1. REMOVE TRANSIT POLY BLOCK .......................... p.4
2. REMOVE TRANSIT BOLTS. ..........................................p.4
3. Dimensions .........................................................................p.5
4. Fit fascia fillet and anti-tilt support ........................p.5
5. Prepare the decor door ...............................................p.6
6. Washing machine connections ............................... p.7
7. Connecting water hose ................................................ p.8
8. Positioning the washing machine ..........................p.9
9. Check machine fills and empties. ........................... p.10
10. Fit decor door and magnetic catches .................p.10
11. Raise and level the machine .....................................p.11
12. Drain hose and filter ......................................................p.12
13. Plinth ....................................................................................... p.12
Installation
Installation overview guide
Parts supplied
