Position the washing machine
relative to service connections.
Decor fillet
can be added
Example
nominal
set-up
Min 5mm
Max 15mm
Gap - as per
the block
at rear
Anti-tilt block
45-50mm
*25mm
Approx 830mm
*At nominal set up -
170mm from floor to the
base of cabinet.
min
15mm
817mm -
831mm
554mm
597mm
820-920mm
min
575 mm
*600mm

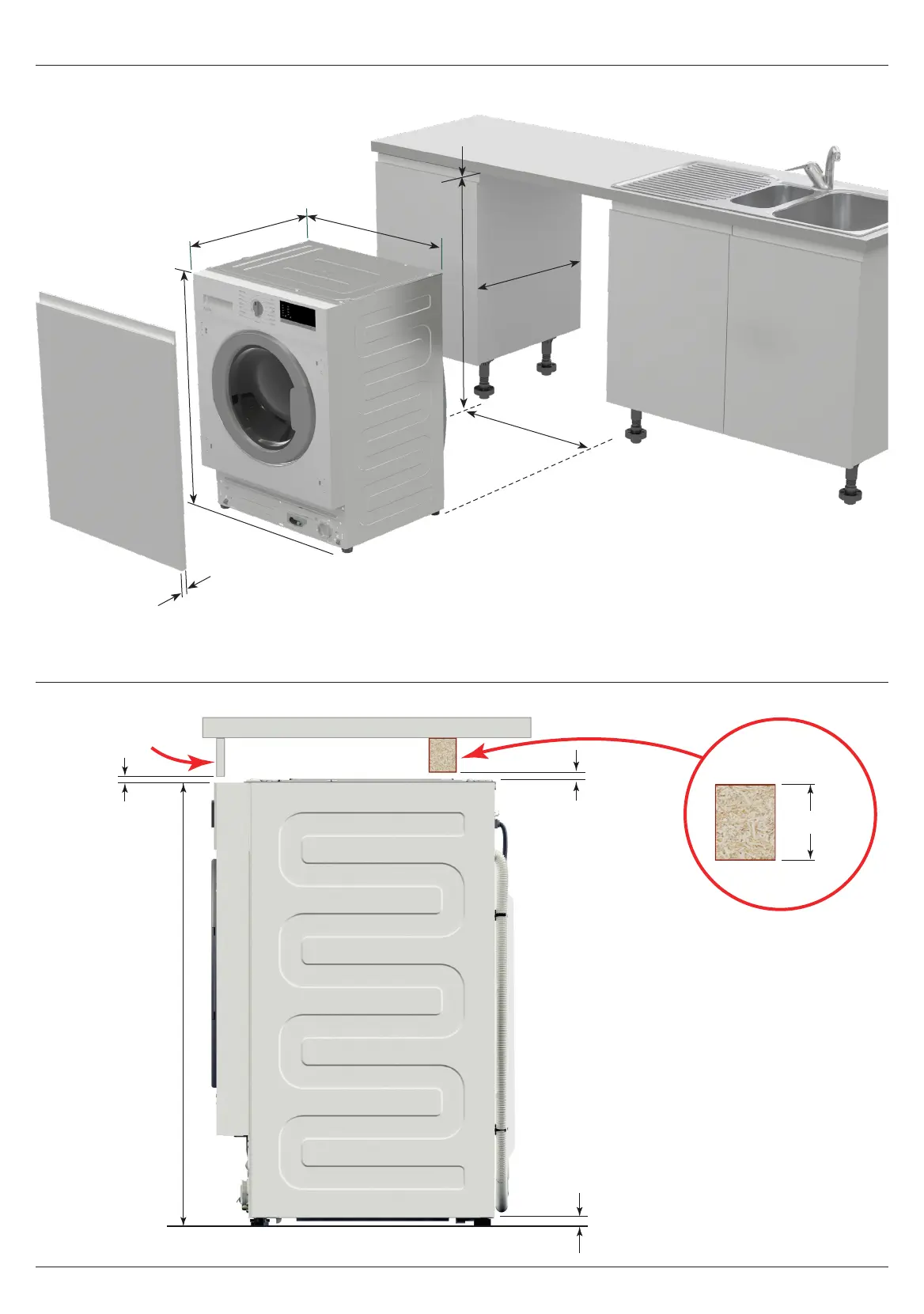

3 - Dimensions
4 - Fit decor fillet and anti-tilt block
*Ensure the floor is level and strong enough
to support a fully loaded washing machine.
If necessary to raise machine use a solid
8-10mm board secured to the floor.
To Next Page
