Lamona LAM8775 - Furniture Door Mounting

!
EN
7
!
Fix the hinges in place with the
4 screws provided (A).
!
Fix the magnet (B) in place
using screw (C).
! Mount the plate (D) on the right
or left-hand side, depending on
your installation requirements.
Place the plastic support (E)
under the plate and fix it in
position with screw (F).

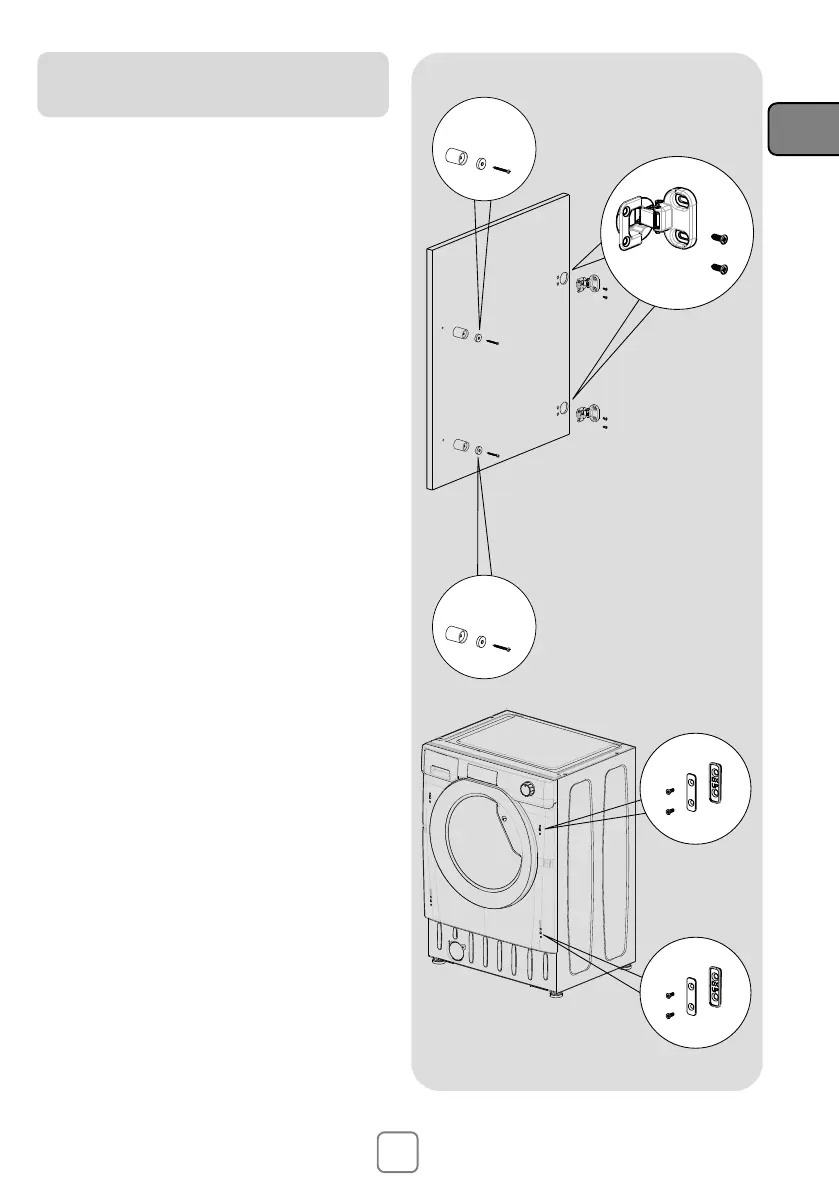

Instructions for mounting the
furniture door
D
E
F
D
E
F
A
B
C
B
C
!
Measure, mark and drill upper
hinge hole in frontal (387.5 mm
and closure magnet on the right
or left-hand side depending on
your requirements. Mark the
screw hole positions, then drill
out these positions.
It is possible to mount the hinges
from bottom pre-drilled hole).
