FMS Commissioning Programming Curves
st
Programming 1 point For safety reasons
(separate ignition point) "Setting” mode permits direct access to the control elements
with the burner running. It is therefore essential to follow the
safety rules laid down by the burner manufacturer!
"Setting mode” with the system running must only be
undertaken by trained and experienced personnel, whilst
keeping a constant watch on the system.
_________________________________________________________
The first point entered after clearing the memory is always the
ignition load point. This is fixed at a load rating that can no
longer be run to whilst in operation (load rating 002)
_________________________________________________________

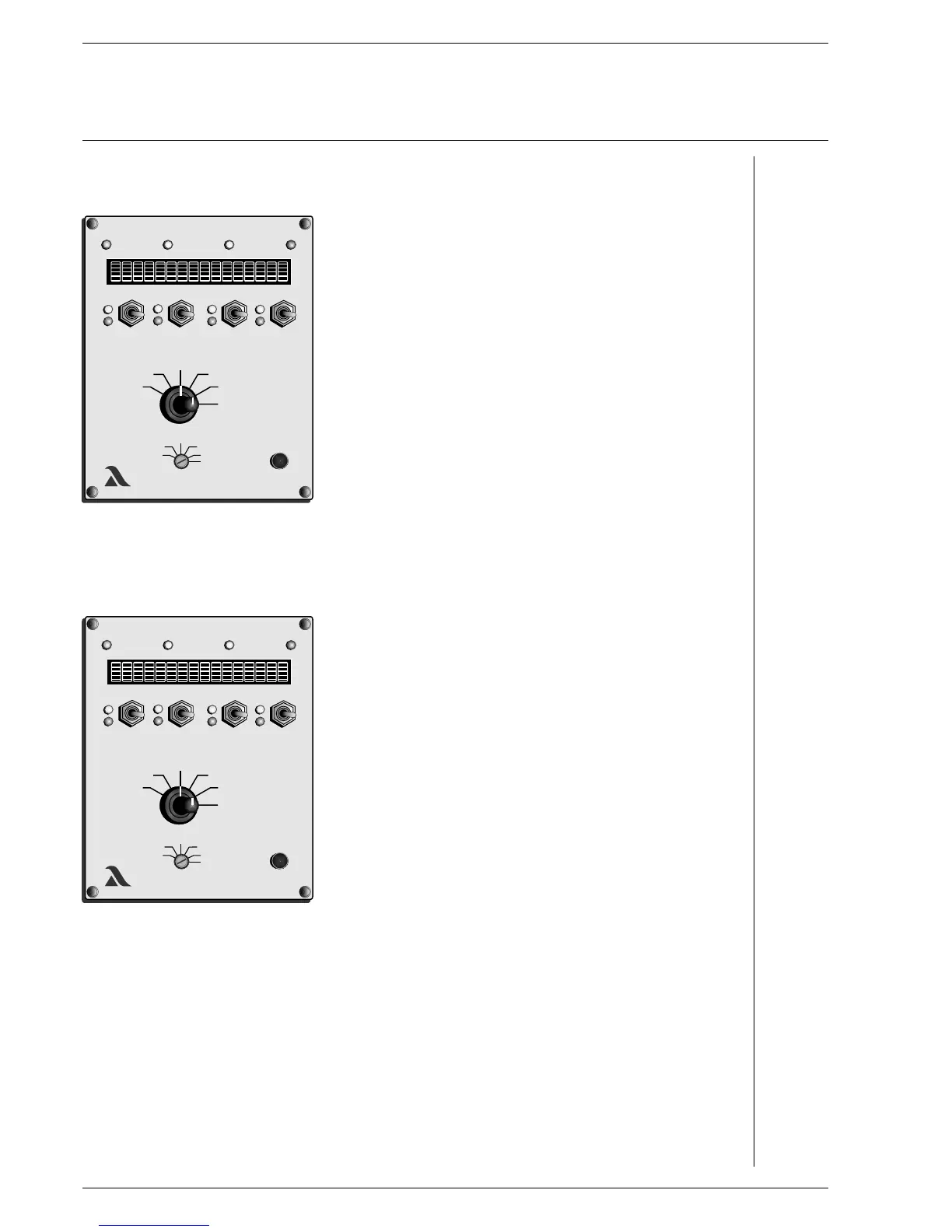

Mode selector switch (2) to "Setting”
- "EI” appears in the middle of the display A6
Selector switch (1) to "Set point”
Switch (4) up or down
until system is optimally adjusted at ignition load point
- control element reacts E2
- display changes B1,C1,E12
On FMS 5: Selector switch (1) to "Channel 5 display”
- set point and feedback actual value are
displayed
Switch (4) (channel 2) up or down
until channel 5 is optimally adjusted
Selector switch (1) to "Actual value feedback”
- Value of the external feedback (with continuous output)
is displayed
- with three-point step channel the same value as in
"set point” position is displayed
Wait until feedback has stopped
Programming with burner running Press Acceptance (3)
(i.e. pre-ventilation has been - "Really ignite?” appears on display
carried out previously without
programmed point) _________________________________________________________
By operating the switch the ignition point
setting can be corrected again
_________________________________________________________
Aids
44
LAMTECLAMTEC
xxx
xxx
xxx
xxx
2
1
LAMTECLAMTEC
xxx
xxx
xxx
xxx
3
4
1
LOAD RATING
(CORR. INPUT)
SETTING
CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4
SETPOINT
FEEDBACK
ACTUAL VALUE
FEEDBACK
SETPOINT
CHANNEL 5
SETPOINT
ACTUAL VALUE
FEEDBACK
ENTER
