15
3 Product Description

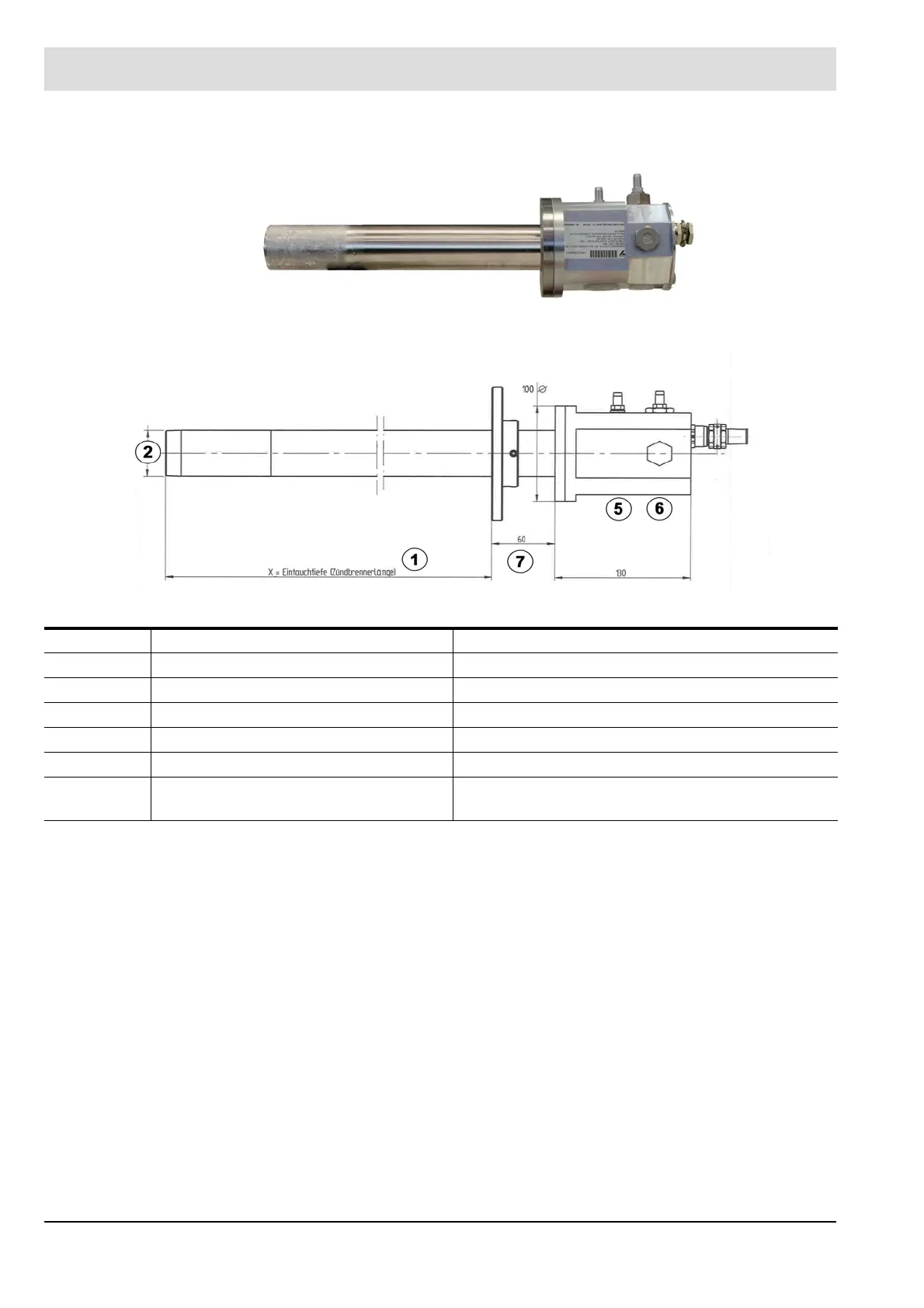

Fig. 3-11 Side view of GFI48 pilot burner design C
Fig. 3-12 Dimensions of GFI48 pilot burner design C
1 Dimension outer tube length (customer-specific)
2 Outer tube diameter 48.3 mm x 2 mm (1.90 x 0.078 in)
3 Housing length versions A and B
4 Housing dimensions
5 Air supply connection 1 inch (BSPP inner threads)
6 Gas supply connection 1/2 inch (BSPP inner threads)
7 Distance between housing and connec-
tion flange
