Mount the pilot burner
NOTICE
If the combustion chamber overpressure is greater than 200 mbar (2.90 psi) , the attachment
of the pilot burner to the feed-through flange must be secured by additional means against de-
taching due to vibration or other forces.
An additional possibility would be to dispense with the sliding flange altogether and for an ap-
propriate mounting flange to be factory-fitted.
NOTICE
For this, the precise installation length must be specified in advance as it will not possible to
adapt later on site.

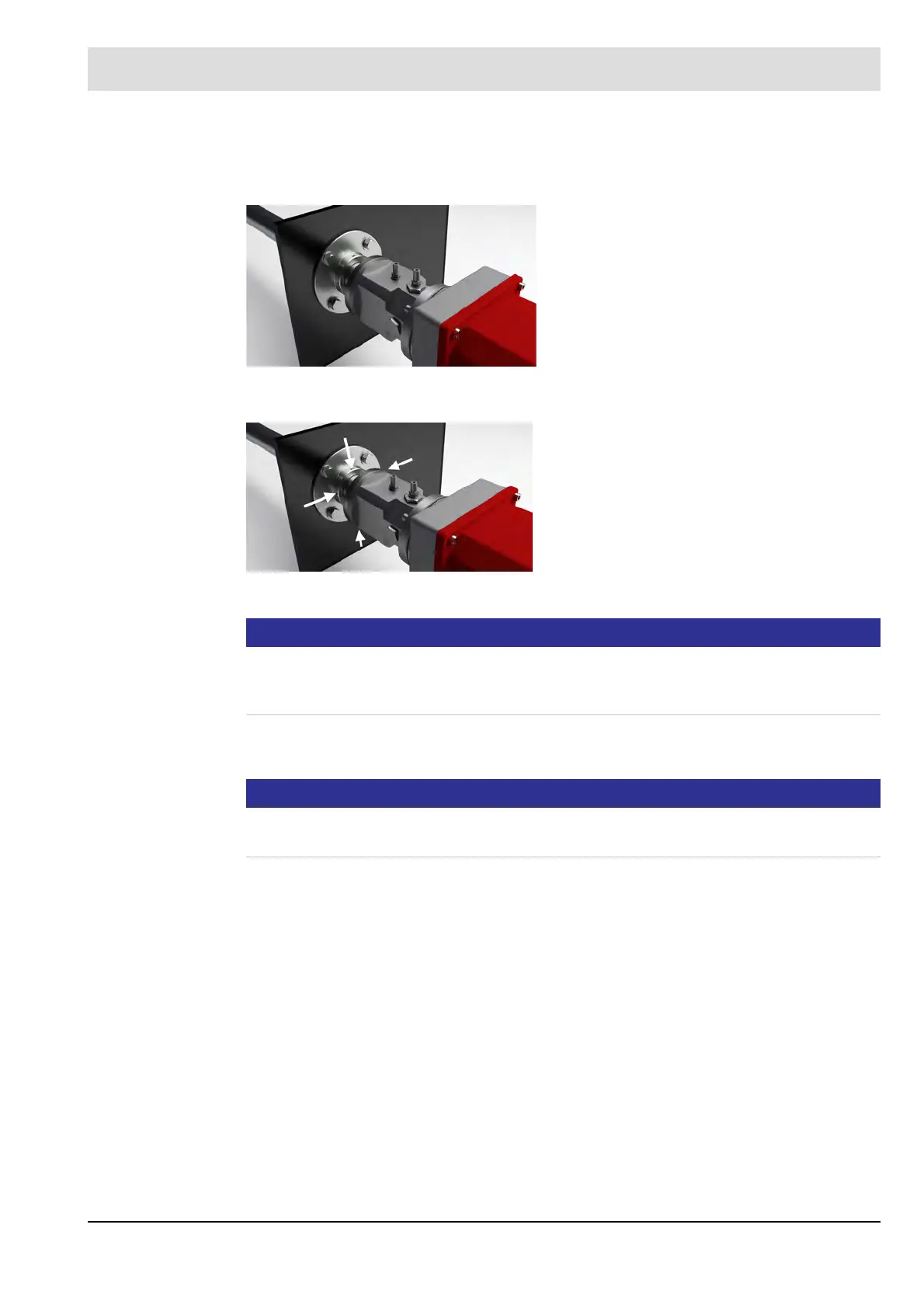

Fig. 5-7 Mount the pilot burner
Loosen the grub screws on the feed-through
flange and insert the pilot burner up to the
desired position in the feed-through flange.
Fig. 5-8 Tighten the grub screws
Tighten the
grub screws in a cross-wise pattern to secure the
pilot burner.
