6 Maintenance
Replace wear parts

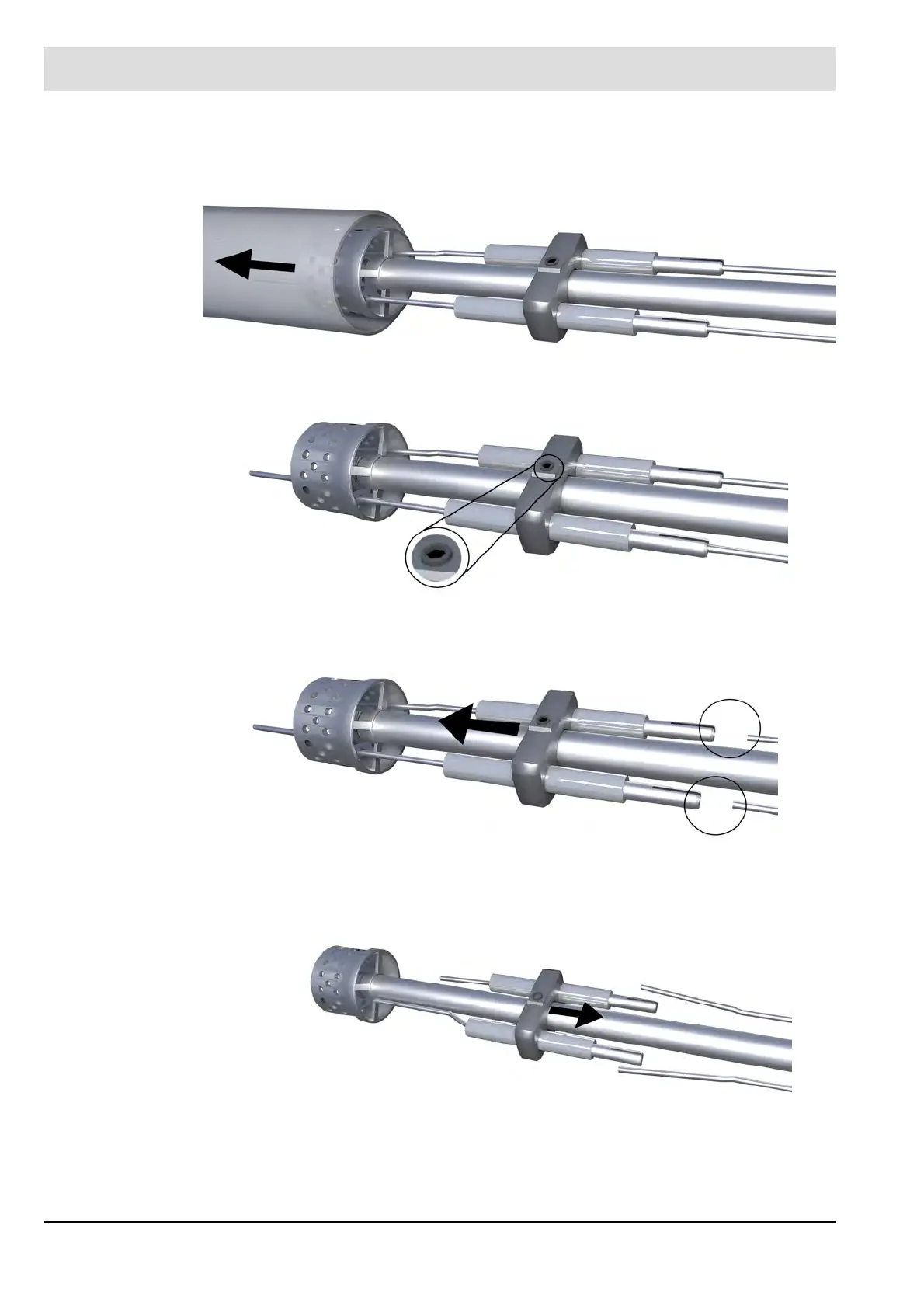

1. Separate air enclosure and gas block, then pull off outer tube.
Fig. 6-3 Step 1 - Replace wear parts on the pilot burner
2. Loosen in-hex screw of the spacer and centre holder.
Fig. 6-4 Step 2 - Replace wear parts on the pilot burner
3. Slide the spacer and centre holder forward so that their plug sockets
release the electrode rods.
Fig. 6-5 Step 3 - Replace wear parts on the pilot burner
4. Bend the electrode rods to the side slightly. Slide the spacer and centre holder back far
enough
that a socket wrench can be placed on the nozzle.
Fig. 6-6 Step 4 - Replace wear parts on the pilot burner
5. Unscrew nozzle and remove flame stabiliser
