9. Make sure the electrodes are in the correct position.
Ignition electrode (short): left
ionisation electrode (long): right
Re-tighten all hexagon screws.

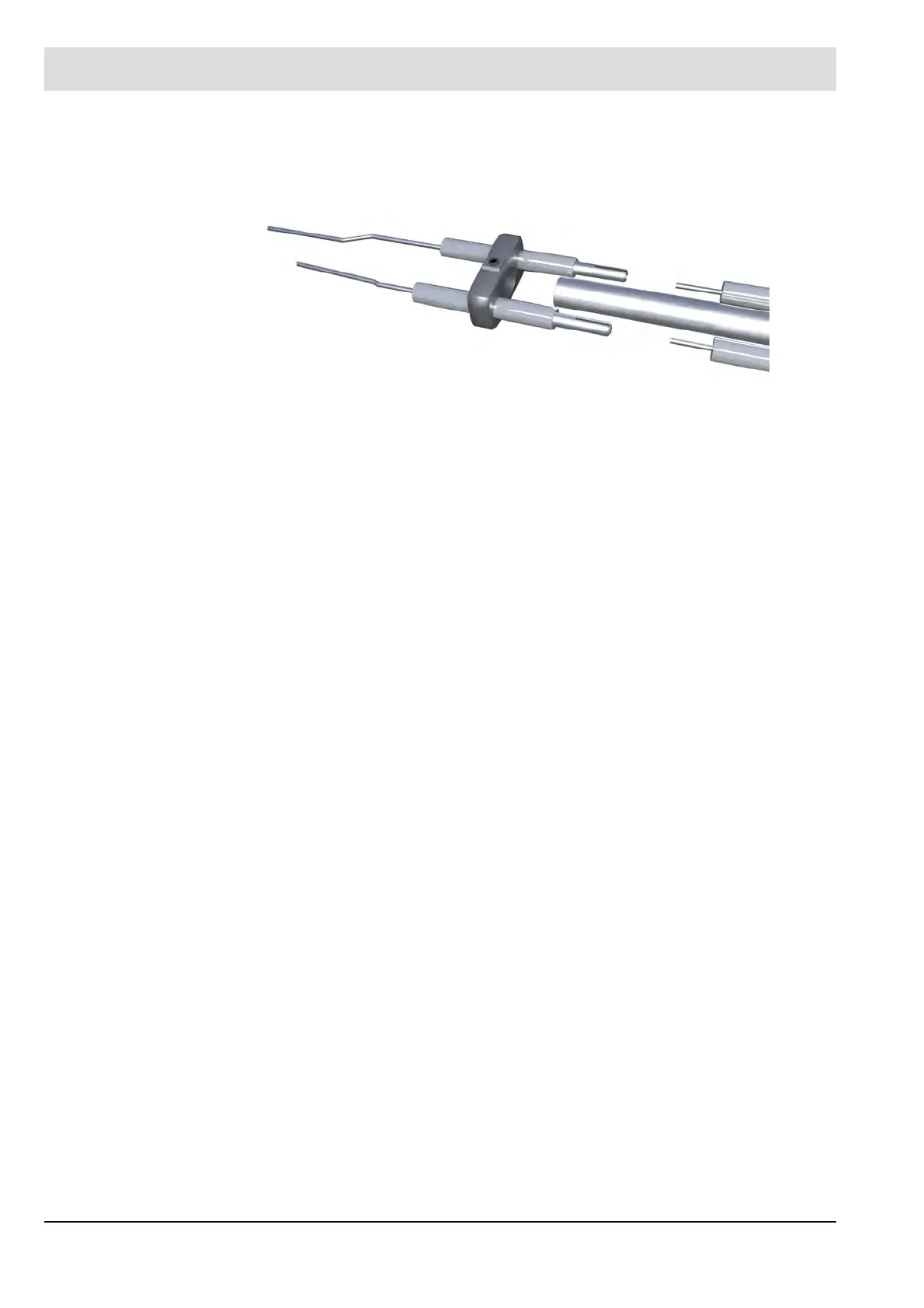

Fig. 6-11 Step 9 - Replace wear parts on the pilot burner
10. Mount the outer tube again and perform electrode test, see chapter 5.2 Assembly check
ionisation electrode.
Mount the device again
Procedure:
1 Install the pilot burner again, see also chapter 5.2 Assembly
2 Connect gas and air supply again.
3 Connect electrical connections again.
4 Perform leak test, see also chapter 5 Commissioning
5 Perform functional test, see also chapter 5 Commissioning
