Section 3: Adjustments
ZT60 and ZT72 Zero Turn Radius Mowers Riding Mowers Accu-Z
®
357-103SM
10/11/06
Land Pride
Section 3: Adjustments
!
WARNING
Unless specifically required, DO NOT have engine running
when servicing or making adjustments to the mower. Place
both control levers in the park position and remove ignition
switch key. Read and observe safety warnings in front of
manual.
Repairs or maintenance requiring engine power should be
performed by trained personnel only. To prevent carbon
monoxide poisoning, be sure proper ventilation is available
when engine must be operated in an enclosed area.
Your Accu-Z was adjusted before it left the factory and
was checked during pre-delivery set-up. However, after
start-up and continued use, a certain amount of break-in
wear will cause some adjustments to change.
Remain alert for unusual noises, they could be signaling
a problem. Visually inspect the machine for any
abnormal wear or damage. A good time to detect
potential problems is while performing scheduled
maintenance service. Correcting the problem as quickly
as possible is the best insurance.
!
WARNING
Keep your machine clean. Remove heavy trash deposits and
clippings from the machine. Keep all moving parts, hydraulic
system, engine cooling system and exhaust system clean of
trash and clippings. Accumulation of trash and/or clippings
can cause fires, hydraulic overheating and excessive belt
wear.
Clear away heavy build-up of grease, oil and dirt,
especially in the area of oil, fuel and engine combustion
air; minute dust particles are abrasive to close-tolerance
engine and hydraulic assemblies.
Some repairs require the assistance of a trained service
mechanic and should not be attempted by unskilled
personnel. Consult your Land Pride service center when
assistance is needed.
Torque Values
!
WARNING
Particular attention must be given to tightening the drive
wheel lug nuts and blade spindle bolts. Failure to correctly
torque these items may result in the loss of a wheel or blade,
which can cause serious damage or personal injury.
Torque Values
Ft - lbs. N-m
Wheel lug nuts 75 102
Blade bolts 135 183
It is recommended that the following be checked after the
first 2 hours of initial operation, and every 50 hours
following removal for repair or replacement:
• Wheel lug nuts
• Wheel motor nuts
• Blade bolts
• For engine torque values, see engine owner’s manual.
Neutral Creep Adjustment
Refer to Figure 3-1:
The steering has been factory adjusted to eliminate
creeping when control levers are in neutral position.
However, should the mower begin to creep, adjustments
can be made to the pump linkage rods.
Control Lever In Neutral Position

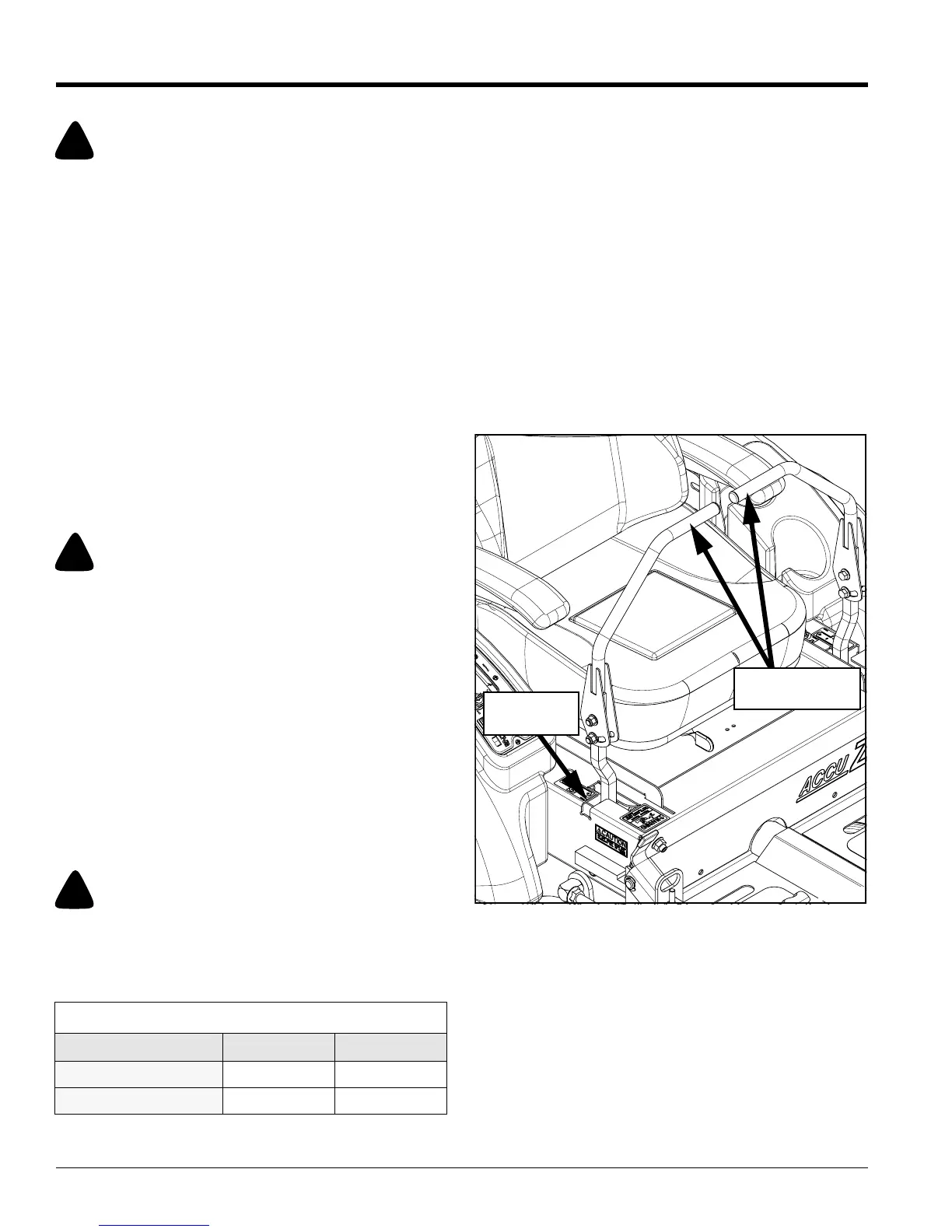

Figure 3-1
Before considering any adjustment, check tire air
pressure and make certain hydraulic oil is at operating
temperature. Unequal tire pressure will cause the mower
to drift to one side. Refer to “Tire Inflation Chart” on
page 36 and page 28.
Adjustments for neutral position is made to the pump
linkage rods located between the control lever and pump
arms. The pump linkage rods are properly adjusted when
control levers are in neutral position and drive wheels are
not turning.
23934
Neutral and
Parking Slot
Control Levers in
Neutral Position
To Next Page
