Landa PE - VBA35 Unloader Exploded View and Parts List

LANDA PE • 8.913-998.0 • Rev. 03/12
27
PRESSURE WASHER
OPERATOR’S MANUAL

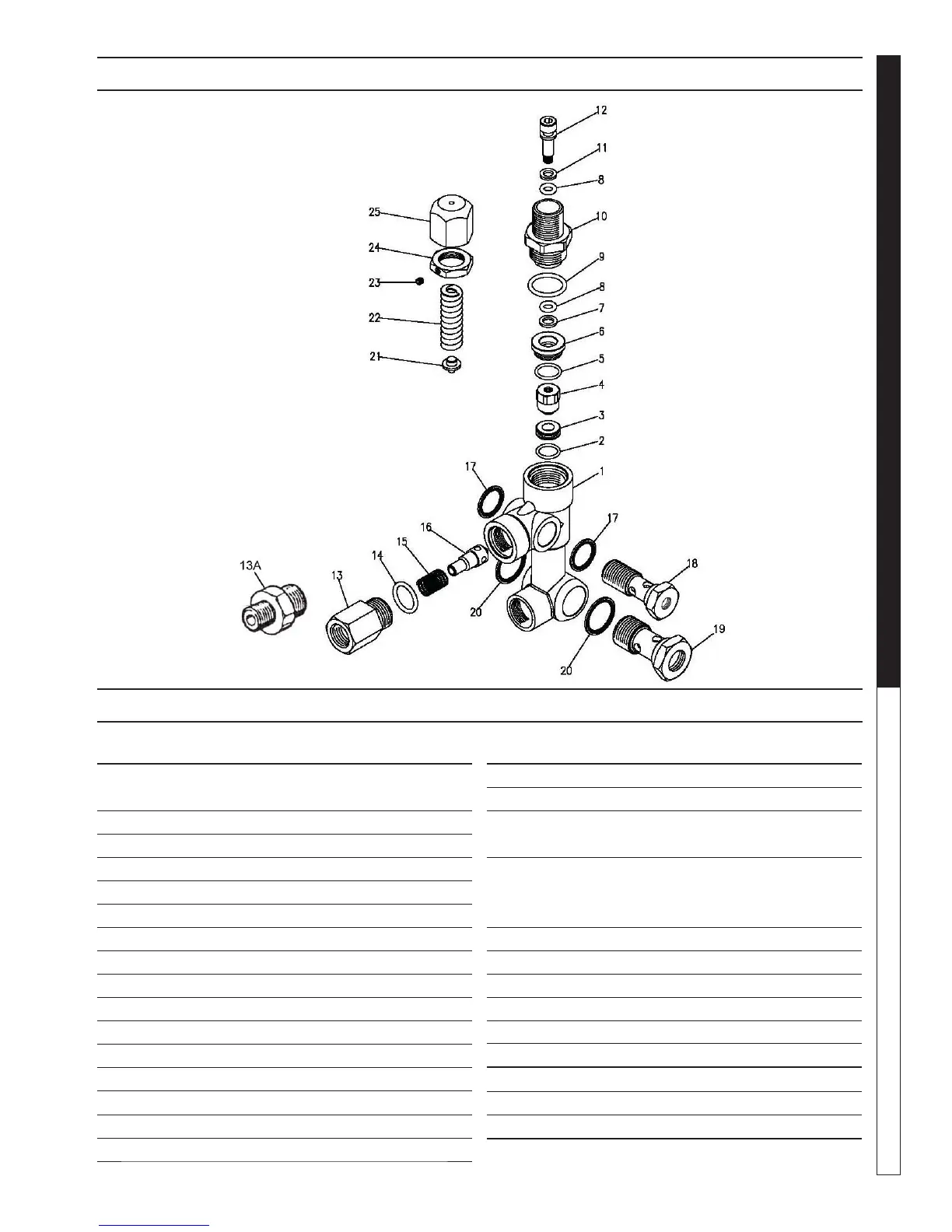

VBA UNLOADER EXPLODED VIEW
VBA UNLOADER EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION KIT QTY
1 Body Valve (KG) 1
Body Valve (KS) 1
2O-RingA,C1
3Seat C1
4 Ball, Sub-assy C 1
5O-RingA1
69.803-907.0Guide Bushing 1
7
Tefl on Ring
1
8O-RingA1
9O-Ring A2
10 9.803-911.0 Connector 1
11 Tefl o n Ring A 1
12 70-120207 Stem C 1
13 9.803-941.0
Connector Female
1
13A 9.702-892.0
Connector Male
14 O-Ring A,B 1
15 Spring B 1
ITEM PART NO. DESCRIPTION KIT QTY
16 Poppet B 1
17 9.802-893.0 Seal Washer 3/8 2
18 9.803-915.0 Banjo Bolt 3/8" w 1/8" Pilot 1
9.803-919.0 Banjo Bolt 3/8" Solid Cap 1
19 9.803-920.0 Banjo Bolt 1/2" w 1/4" Pilot 1
8.750-105.0 Banjo Bolt 1/2" Solid Cap
9.803-919.0 Banjo Bolt 3/8" Solid Cap
20 9.803-921.0 Seal Washer 1/2 2
21 Plate C 1
22 Spring C 1
23 8.933-021.0 Set Screw 1
24 9.803-925.0 Nut 1
25 9.803-926.0 Brass Handle 1
Kit A 8.717-672.0 O-Ring Repair Kit
Kit B 8.717-673.0 Outlet Kit
Kit C 8.717-674.0 Stem Repair Kit
#5-3329
#5-3330
