Landa PE4-2000 - Hose & Spray Gun Assembly Parts List; Hose and Gun Components

LANDA PE • 8.913-998.0 • Rev. 03/12
19
PRESSURE WASHER
OPERATOR’S MANUAL
HOSE & SPRAY GUN ASSEMBLY
7
4, 5
1
8
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8" Female 1
9.802-100.0 ▲ Quick Coupler O-Ring Large 1
2 8.739-072.0 Hose 3/8” x 50’, 1-Wire, Tuff-Skin 1
3 8.751-234.0 Gun, Landa, 5000 PSI, 10.4 GPM 1
4 8.904-430.0 Wand, Straight, Assy 1
8.711-279.0 Wand, SS 1
5 8.711-323.0 Cover, Wand 1
6 Nozzle, See Page 16, Item # 31 1
7 Nozzle, See Page 17, Item # 32
8 9.802-216.0 Injector, Chem, Non-Adj, 3-5 GPM 1
9 9.802-164.0 Coupler, 1/4" Female 1
9.802-096.0 ▲ Quick Coupler O-Ring Small 1
10 9.802-251.0 Tube, 1/4” x 1/2” Clear Vinyl 6 ft.
11 6.390-126.0 Clamp, Hose 2
12 8.707-057.0 Strainer, 1/4” Hose Barb 1
▲ Not Shown
6
9
3
2

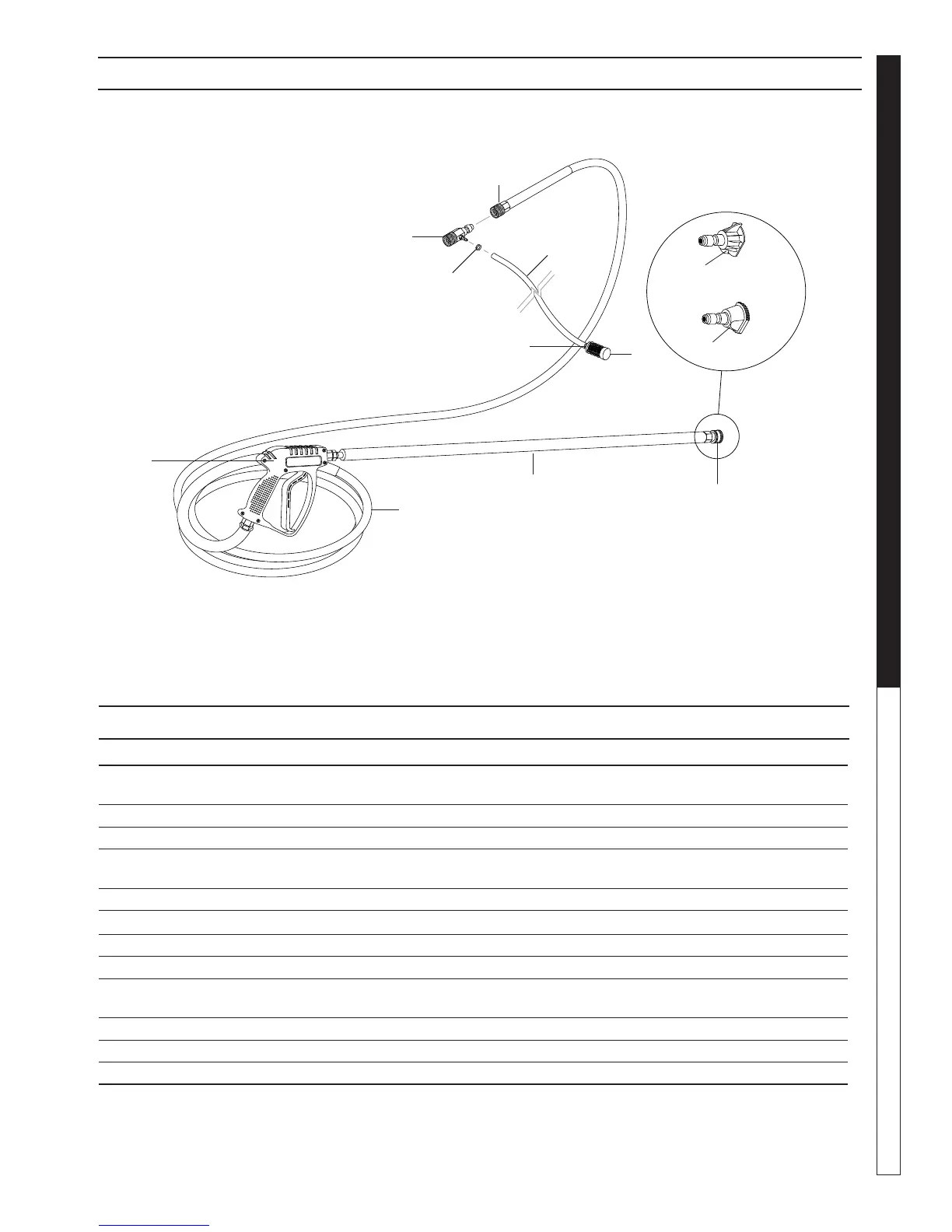

HOSE & SPRAY GUN ASSEMBLY PARTS LIST
