INSTALLATION

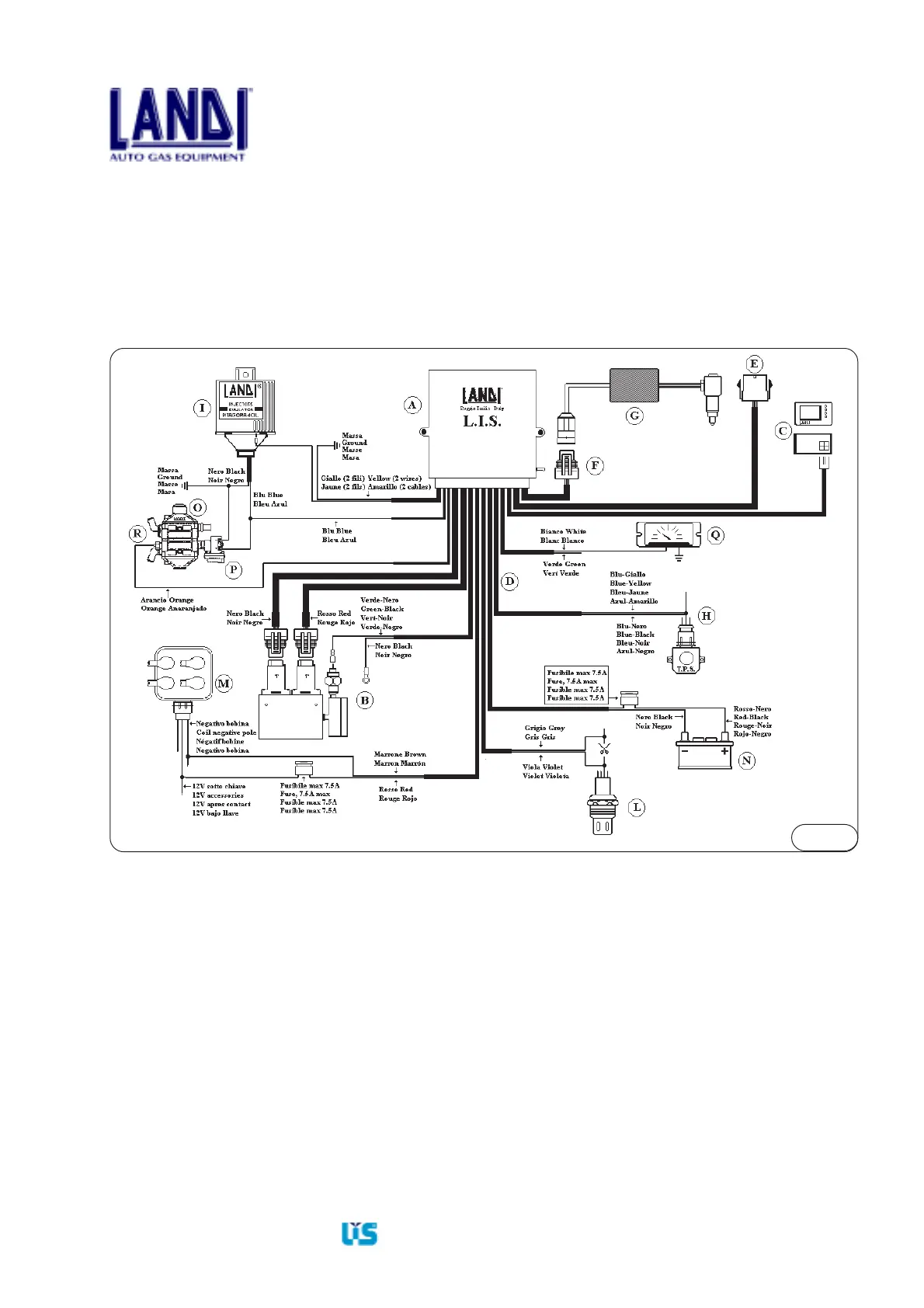

Legenda:
A) ECU
B) Proportioner with cut-off electrovalve
C) Switch
D) Harness
E) Connector for programming & diagnosis unit
F) Connector for pressure tester
G) Pressure diagnosis device
H) Throttle Position Sensor
I) Simulator
L) Lambda sensor (oxygen sensor)
M) Ignition coil
N) Battery
O) Regulator-vaporizer
P) Electrovalve
Q) Fuel level sensor
R) Temperature sensor
4.4.10 Installation of LPG tank and tubing for
liquid LPG
The installation of these components is not different from
the installation of a conventional aspirated system using
the Venturi mixer.
4.4.10.1 LPG tank - General information
The installation of the LPG tank must comply with the
following criteria. For more detailed information on
regulations, check local regulations.
Fig.4.7
