Landmann 470430 - Control Board and Wiring Information

PAGE
Pellet Grill
26

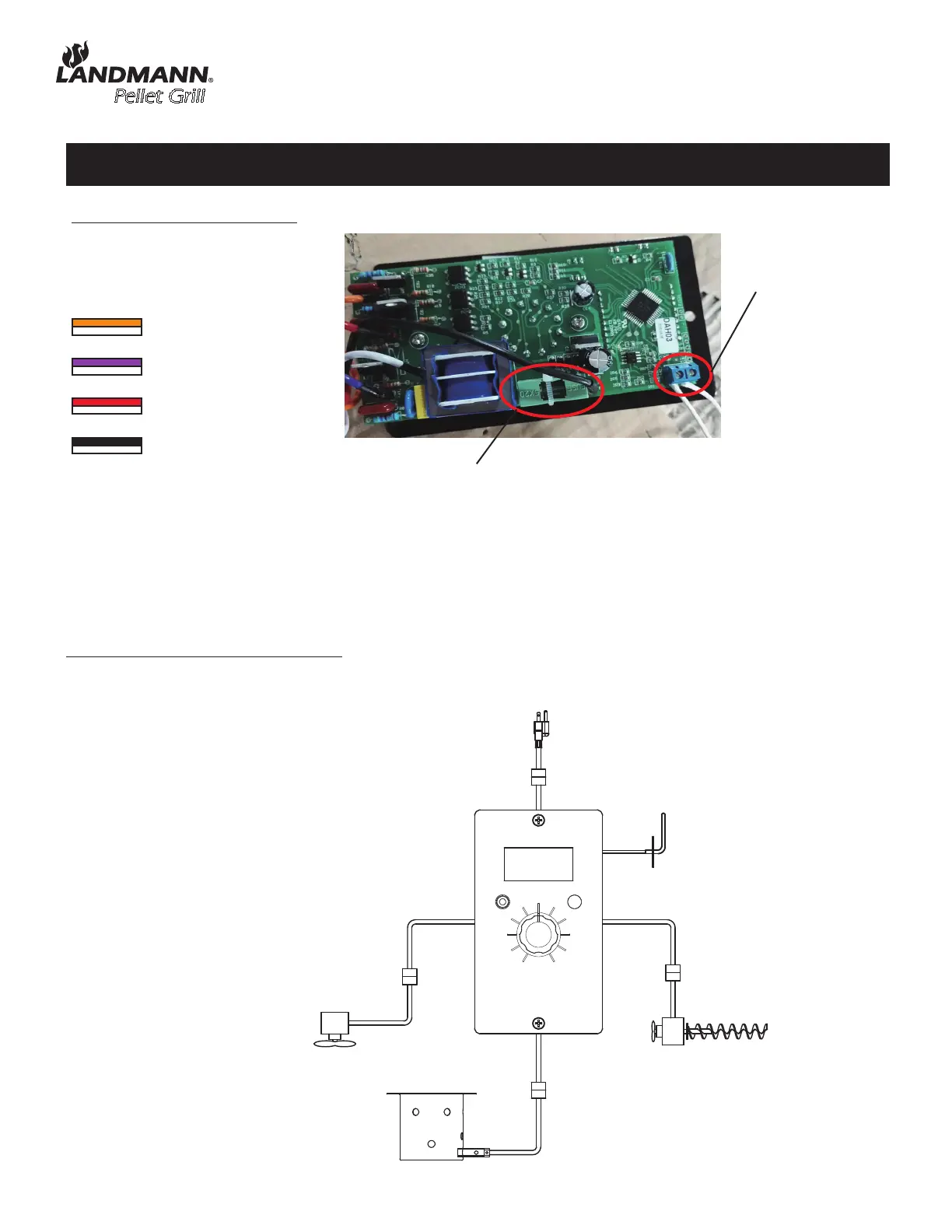

470430 WIRING DIAGRAM
Smoke
225
250
275
300
325
350
400
450
℉
110mm
90mm
Troubleshooting
Control Board Back View
Board Wire Harness
Connection
Digital Control Wiring Diagram
POWER CORD
BLACK
ORANGE
PURPLE
WHITE
WHITE
WHITE
AUGER MOTOR
FIRE POT
BLOWER FAN
PROBE
Off High
Meat/P
IGNITER
WHITE
WHITE
GRILL PROBE
RED WHITE
Blower Fan
Igniter
Auger Motor
Power Cord / AC Input
5 amp 120 Volt Fuse w/ Housing
Cartridge Fuse
The circuit board is equipped with a 5 amp, 120 volt fuse to help protect against power
surges and electrical shorts. When not in use, always unplug and store your grill. This will
help prevent electrical damage from power surges or storms.
Grill Probe
connections
