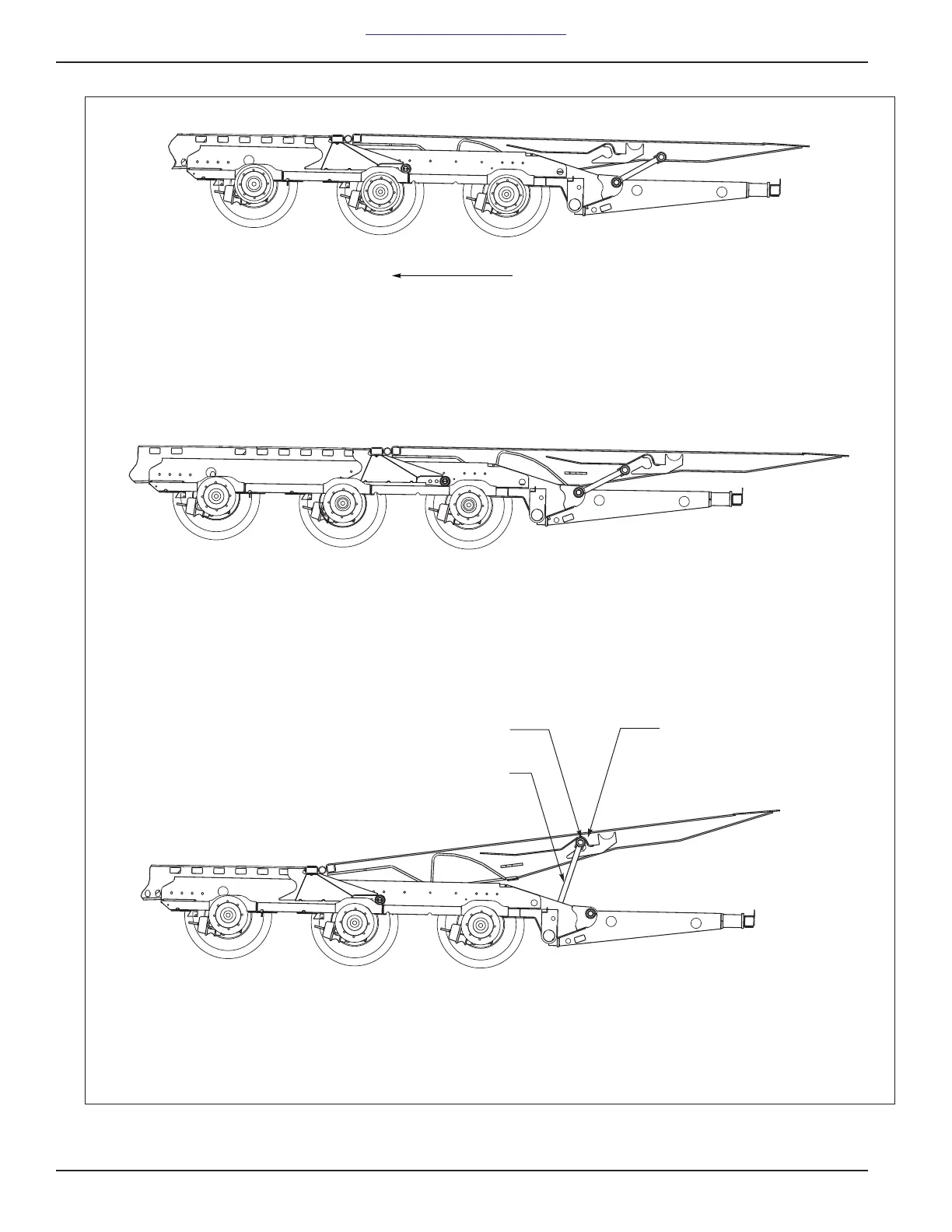

Figure 3-7: Dock Leveler Operation
30”
DOCK LIFT ARM
ENGAGING POSITION
DOCK LIFT ARM
STOP POSITION
POCKET LIFT ARM
RECEIVER W/SEATED
LIFT ARM ROLLER
DOCK
LIFT ARM
DOCK LIFT ARM
ENGAGED POSITION
BEGIN ON LIFT
DOCK LIFT ARM
ENGAGED POSITION
FULL LIFT
