Air Activated Upper Deck Ramp
(Option)
1. To raise ramp, push ramp activation button (in).
Hold button until ramp raises past ramp support
latches. Rotate ramp support out for ramp to rest on.
Release button allowing ramp to settle upon ramp
supports (See Figure 3-9.)
CAUTION
2. To lower ramp, push ramp activation button (in).
Hold until ramp raises off ramp supports. While
holding ramp palm button, rotate ramp support
handle to release position. Now release ramp palm
button to allow ramp to settle down to normal deck
position (See Figure 3-9.)

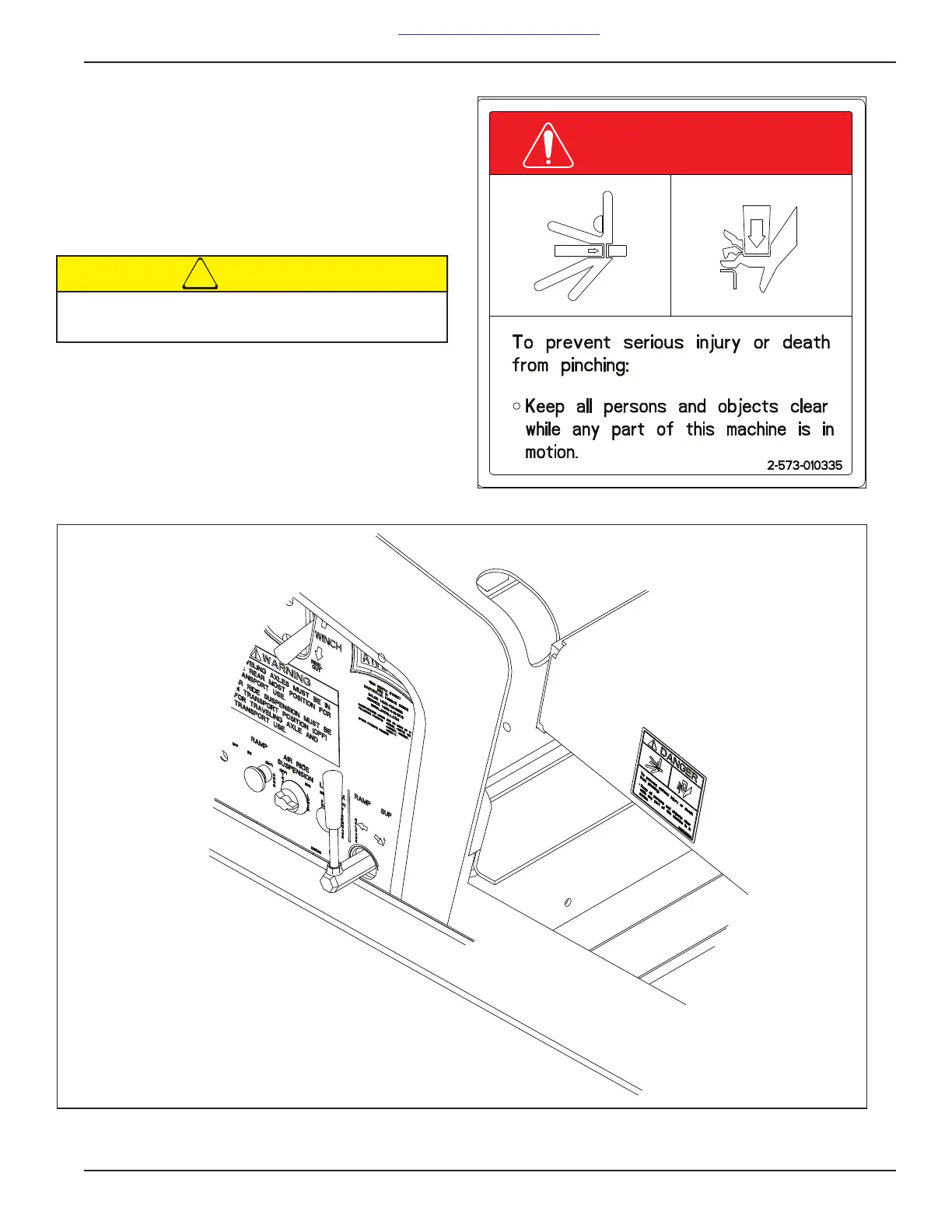

Figure 3-8: Air Ramp Pinch Point
Figure 3-9: Air Activated Upper Deck Ramp (Option)
Raised ramp maximum capacities 5,000 lb. wheel
load/ 10,000 lb. total.
