Oil / water separators final stage
MAINTENANCE AND SERVICE
Oil / water separators final stage - maintenance
Change/clean oil / water separators final stage as follows:
• Loosen pipe connections and mounting screws.
• Remove oil / water separators.
• Open ring nut and remove separator top (Fig. 1).
• Loosen nut at the separator top.
• Change sinter filter (Fig. 2).
• Reassemble all parts and tighten nut.
• Change o-ring, previously grease new o-ring (Fig. 3).
• Place separator top and tighten ring nut manually.
• Replace silencer.
• Mount oil / water separators.
• Tighten pipe connections and mounting screws.
The oil / water separator maintenance is now completed.

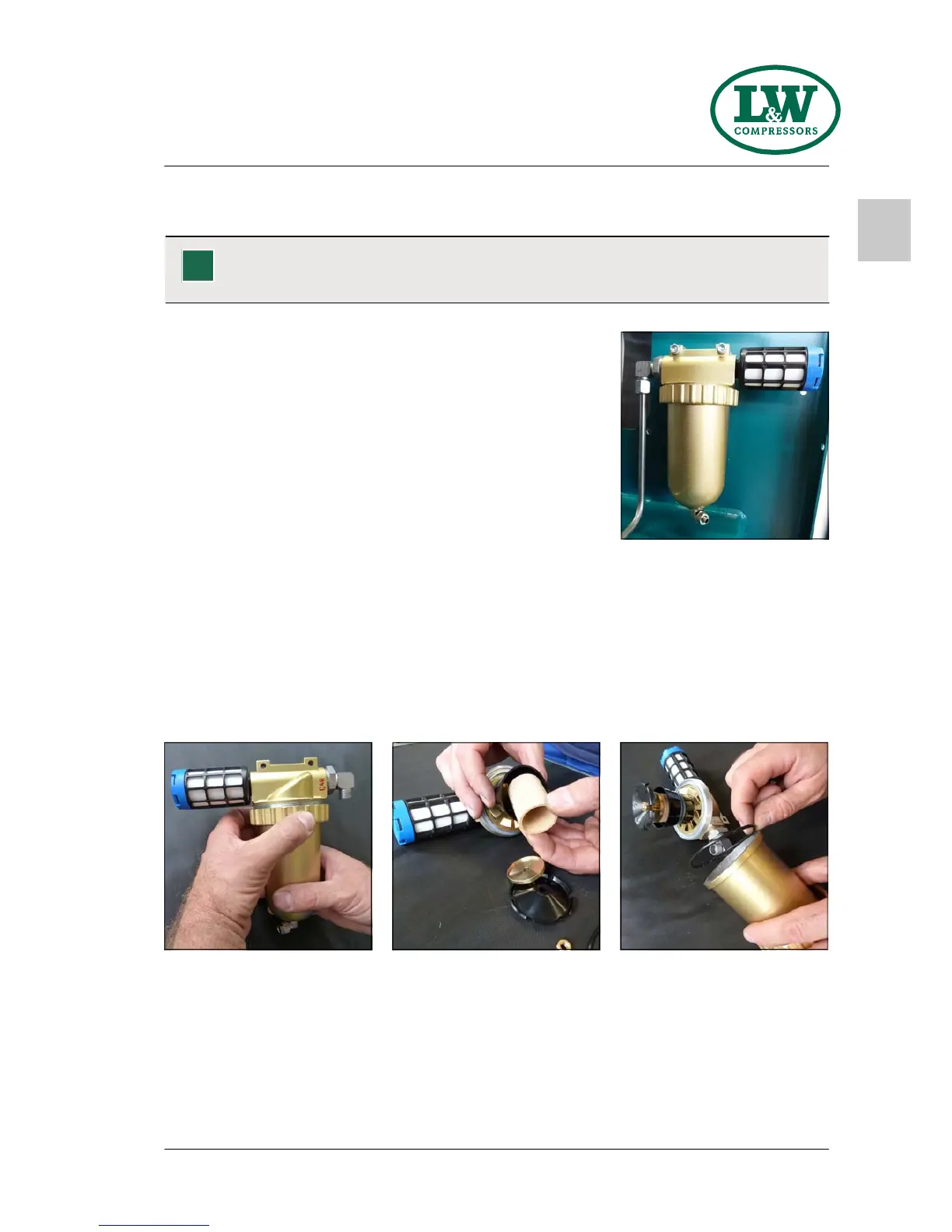

Fig. 1 - Loosen ring nut Fig. 3 - Change o-ring Fig. 2 - Change sinter filter
Note
Clean all parts thoroughly before assembly.
i
