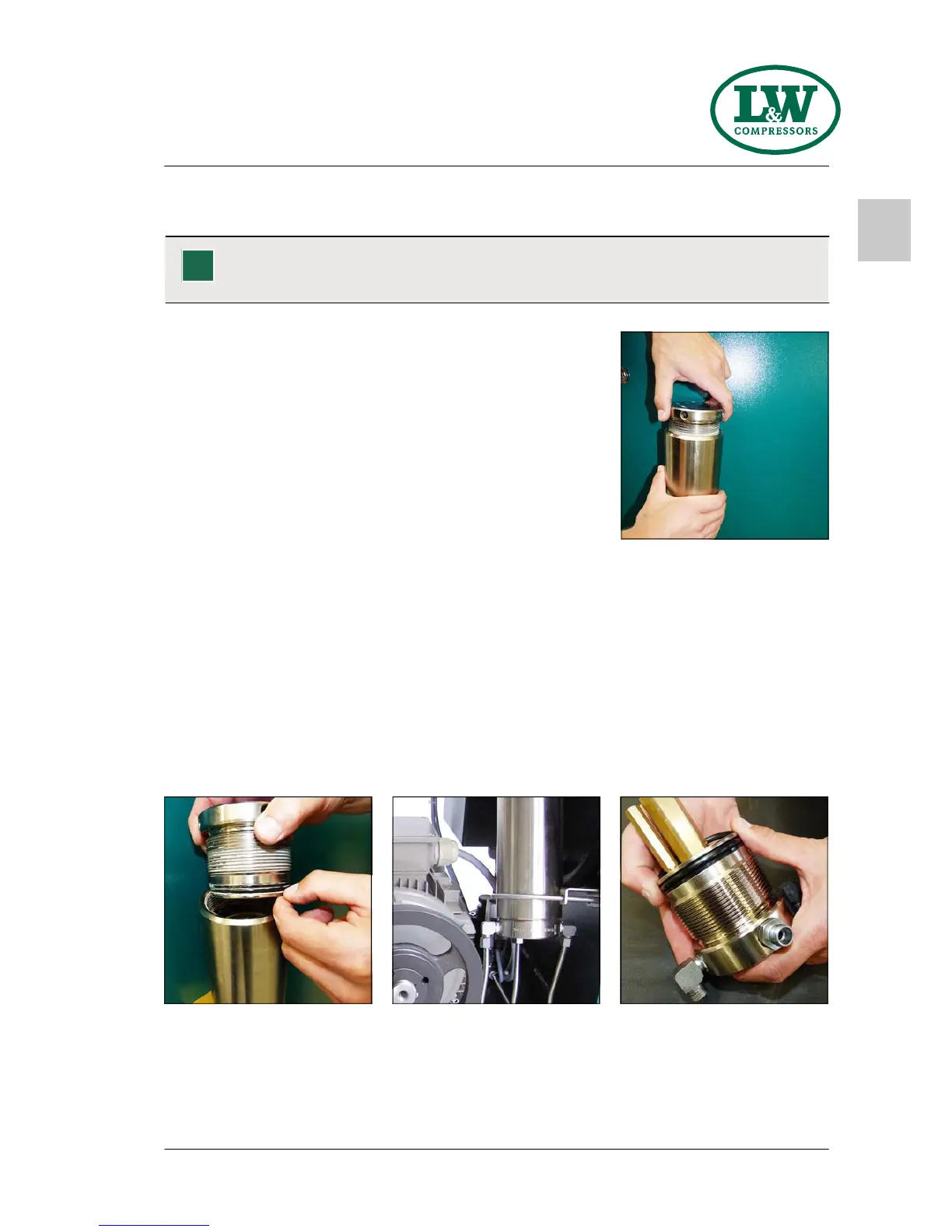

Fig. 1 - Open Filter cover
MAINTENANCE AND SERVICE
Filter housing - maintenance
Filter housing maintenance as follows:
• Open Filter Cover (Fig. 1).
• Change o-ring and back-up ring, previously grease both
(Fig. 2).
• Grease filter cover thread and close.
Dismount filter housing
• Loosen pipe connections and nuts (Fig. 3).
• Remove filter housing.
• Dismount filter housing base.
• Change o-ring and back-up ring, previously grease both (Fig. 4).
• Screw filter base tight in.
Mount filter housing
• Connect pipe connections and tighten.
• Adjust holding clamp and tighten nuts.
The filter housing maintenance is now completed.
Fig. 2 - Change o-ring and back-up
rings
Fig. 4 - Change o-ring and back-up
rings
Fig. 3 - Loosen pipe connections and
nuts
Note
Clean all parts thoroughly before assembly.
i
