CUB-8
4

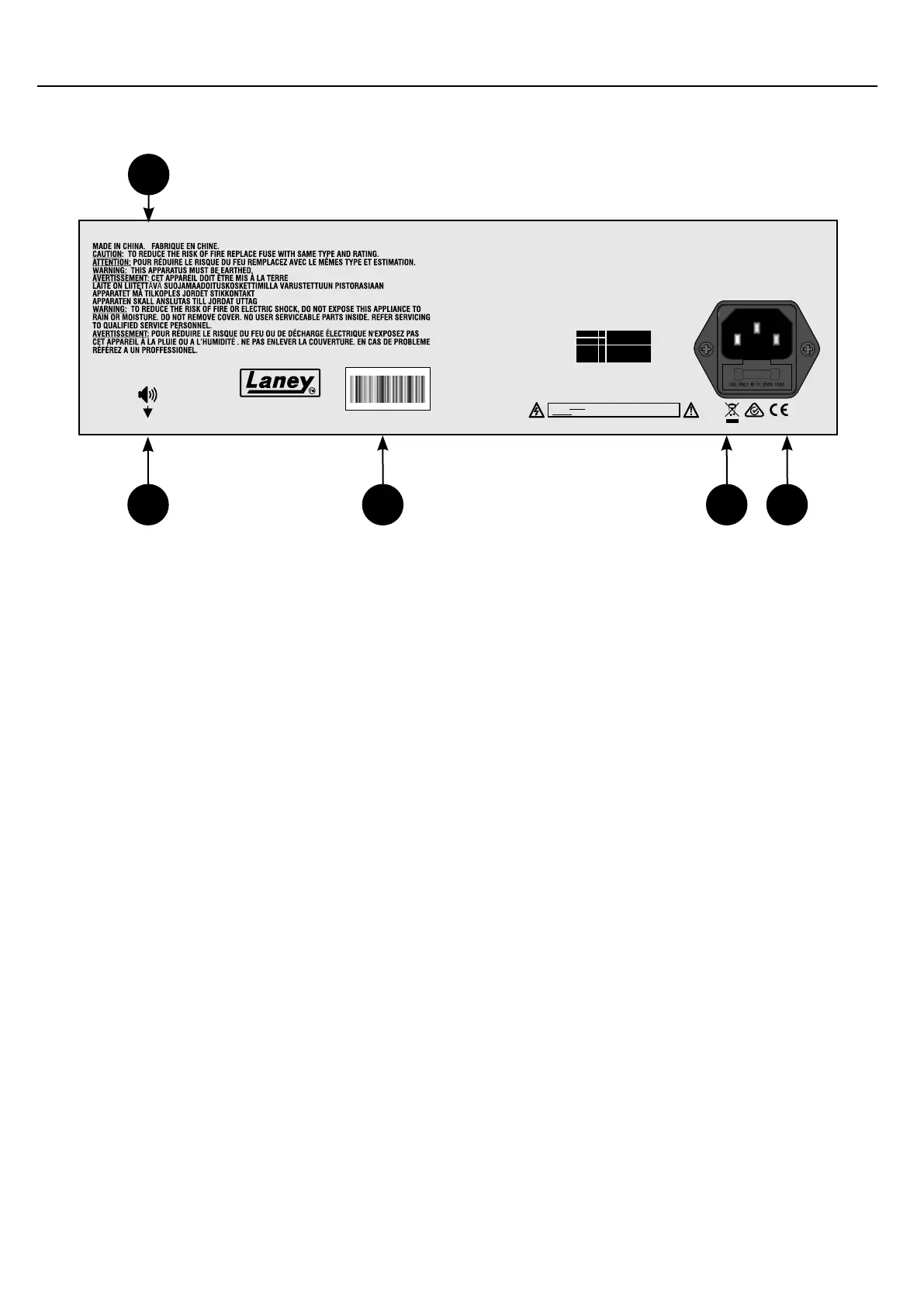

FEATURES CONTINUED
EXTERNAL SPEAKER
IMPEDANCE
8-16 OHMS
CAUTION - RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION - LE RISQUE DE DÉCHARGE ÉLECTRIQUE NE S'OUVRENT PAS
SUPPLY VOLTAGE
50 WATTS 50/60Hz
MAXIMUM POWER CONSUMPTION
~120V
~220V
~230V
~240V
T500mA L 250V
~100V
T250mA L 250V
7
8
9 10
11
MODEL: CUB-8
SN: ABC1234567890
DESIGNED & ENGINEERED IN THE UK
BY LANEY ELECTRONICS LTD
11 – MAINS FUSE TRAY – This drawer contains the main safety fuse for the unit. The fuse protects the amplifier from
damage in the event of fault by disconnecting the mains power supply. USE ONLY THE CORRECT SIZE AND RATING
SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size and rating is installed which in turn
blows, the amplifier has suffered a malfunction and needs immediate service from a qualified technician. DO NOT TRY A
FUSE OF HIGHER RATING - Using a fuse that is too large in current rating may cause serious, irreparable damage to the
amplifier and presents a serious fire hazard. The mains fuse ratings are detailed in the Specifications section of this manual,
as well as printed on the rear of the amplifier. There is a spare fuse located in the fuse drawer of the mains power inlet in the
event of a failure.
10 – POWER SOCKET – Connected the supplied IEC power cord here.
9 – SERIAL NO – Displays the model details and serial number of the unit.
8 – EXTENSION CABINET – Using a good quality speaker cable, connect an external cabinet (8-16 Ohm) here.
Recommended suggestions include the CUB-112 and CUB-212 cabinets. If an alternative is used, please note a mismatched
impedance will reduce the amplifiers performance and in some cases may cause damage to your amplifier. When an external
loudspeaker is connected, the Onboard loudspeaker will be muted.
7 – SAFETY WARNINGS – Please adhere to the warnings for your safety and the prolonged operation of the Cub-8
amplifier.
Always switch off and disconnect the power cord when not in use.
