Laney CUB12R User Manual

CUB
2
SPECIFICATIONS
Laney
Page
7 / 16
Nominal Supply Voltage ~100V, ~115V, ~230V, 50/60Hz
Power Consumption 50W
Output Power Rating 15W
Loudspeaker
Input Impedance 1MOhm
Size (H*W*D) 427*435*235
Unit Weight
Operating voltage Factory set
Celestion Custom Driver 8 Ohm
Loudspeaker outputs Extension speaker socket (Disconnects Internal speaker)
(8 - 16 Ohm Impedance)
Features Class A/B Push/Pull circuitry
2xEL84 Power Tubes
3xECC83/12AX7 Preamp Tubes
Gain, Tone, Volume & EQ Controls
FX Loop
Hi & Lo Power Inputs (See later description)
11.5Kg (Shipping Weight 13Kg)

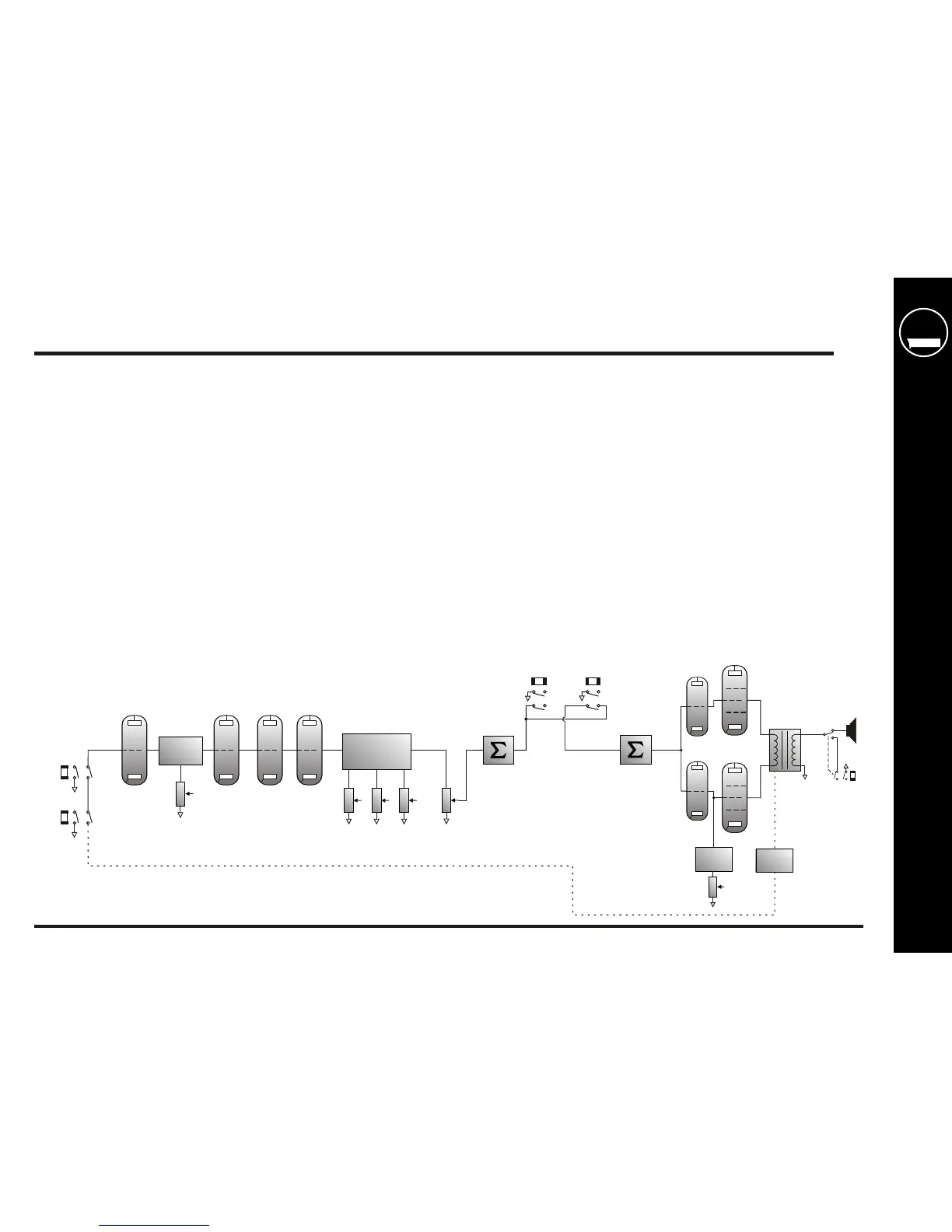

BLOCK DIAGRAM
15W INPUT
<1W INPUT
V1b
V1a
GAIN
GAIN
CONTROL
INTERNAL
LOUDSPEAKER
EXT. LOUDSPEAKER
EQ
BASS
MID
TREBLE
VOLUME
V2aV2b
8-16 OHMS
V3a
V3b
V4
V5
FX RETURN
LINE OUT
FX SEND
TONE
TONE
CONTROL
POWER
SCALING

Laney CUB12R Specifications

General

Power	15W
Output Valves	2 x EL84
Reverb	Yes
Type	Tube Combo Amplifier
Effects Loop	Yes
Controls	Gain, Tone, Volume, Reverb
Footswitch	No
EQ Controls	Tone
Preamp Valves	3 x ECC83
Inputs	2 x 1/4" (15W and <1W input)
