CV
30
SPECIFICATIONS
V
C
30
Laney
Page
14 / 16
Page
15 / 16
This product conforms to the requirements of the following European Regulations, Directives & Rules:-
CE Mark (93/68/EEC), Low Voltage (72/23/EEC), EMC (93/68/EEC),
RoHS (EU2002/95/EC), WEEE (EU2002/96/EC)
In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal
household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the
WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country.

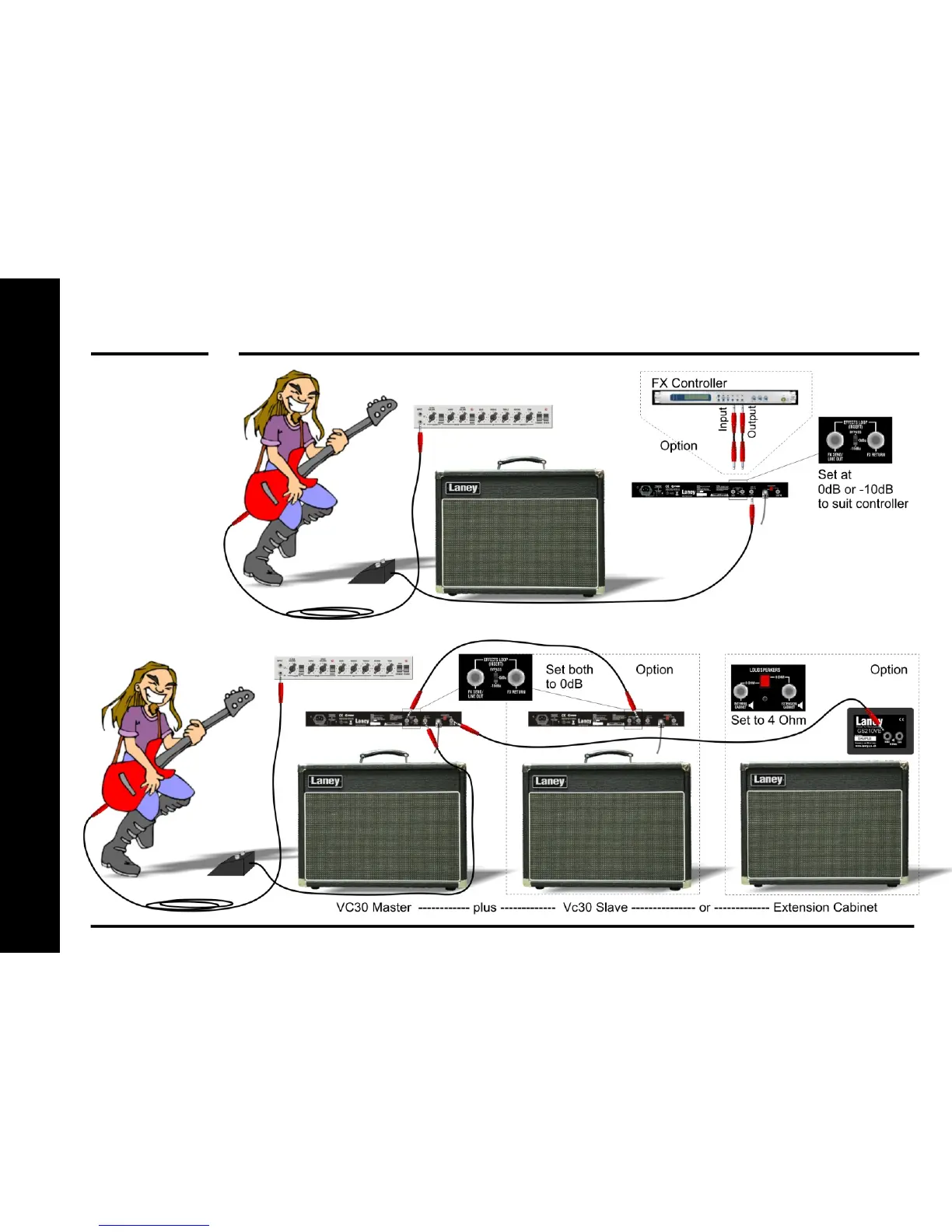

VC30 SAMPLE SYSTEMS
Laney
Supply Voltage ~100V, ~120V, ~230V, ~240V 50/60Hz Factory Option
Mains Fuse (~230V>240V = T630mA L 250V) (~100>120V = T1.6A L 250V)
HT Fuse T315mA L
Power Consumption 100W
Output Power Rating 30W
Loudspeaker VC30-112 12” Celestion 8 Ohms
Features Pure Class A Valve tone
4xEL84 Power Tubes (Matched Quad Set TAD)
3x12AX7/ECC83 Preamp tubes (TAD)
Hi & Lo Gain Inputs
FX Loop with Switchable Level & By-pass
Footswitchable Yes, Channel and Reverb (FS2 Optional)
Reverb Yes (Springline ‘Sound Enhancements’)
EQ Passive Bass, Middle and Treble
Bright Switch (Works on both channels)
Input Impedance 1MOhm/47pF
Size
Unit Weight (VC30-112=22Kg) ( VC30-210=22Kg) ( VC30-212=28Kg)
Loudspeaker VC30-210 2* 10” Jensen C10Q16
Loudspeaker VC30-212 2* Celestion 70 Eighty 16 Ohms
Loudspeaker outputs Extension speaker socket (Minimum 8 Ohm Impedance)
(W*H*D) (VC30-112=562 423 3 562 423 3* *25 ) (VC30-210= * *25 ) (VC30-212=679*523*253)
