EQUIPMENT DESCRIPTION
Exterior Construction
The griddle dimensions are 17” (43.18cm) High, 30” (76.20cm) Deep, and width is dependent on the
actual model number.
The Sides, Bottom, and Rear wall are constructed of double wall stainless steel, which allows closer
installation to combustible surfaces.
The griddle surface is made of 1” thick, highly polished steel to reduce hot and cold spots, recovery
problems, warping, and ensure even heat to the edges of the griddle.
Controls
Each twelve-inch section has its own temperature selector switch that snaps into place to lock in any
temperature from 175°F to 450°F (79°C to 232°C) in 25° increments.
Each twelve-inch section of the griddle is controlled by an area sensitive RTD probe, which can sense
and react to a temperature change of +/- 4°F.
Each twelve-inch section has a set of 6 K.W. elements for high effi ciency, quick recovery and outstanding
performance
Technical
The 100 series thermostat griddle operates on either 208, 220, 240, 380 or 480V, are shipped three
phase, (unless in specifi c specifi cations). 208, 220, 240V can be fi eld converted to single phase.
Minimum clearances: 2” from side and back
NOTICE The data plate is on the right side of the griddle. The oven voltage,
wattage, serial number, wire size, and clearance specifi cations are
on the data plate. This information should be carefully read and
understood before proceeding with the installation.

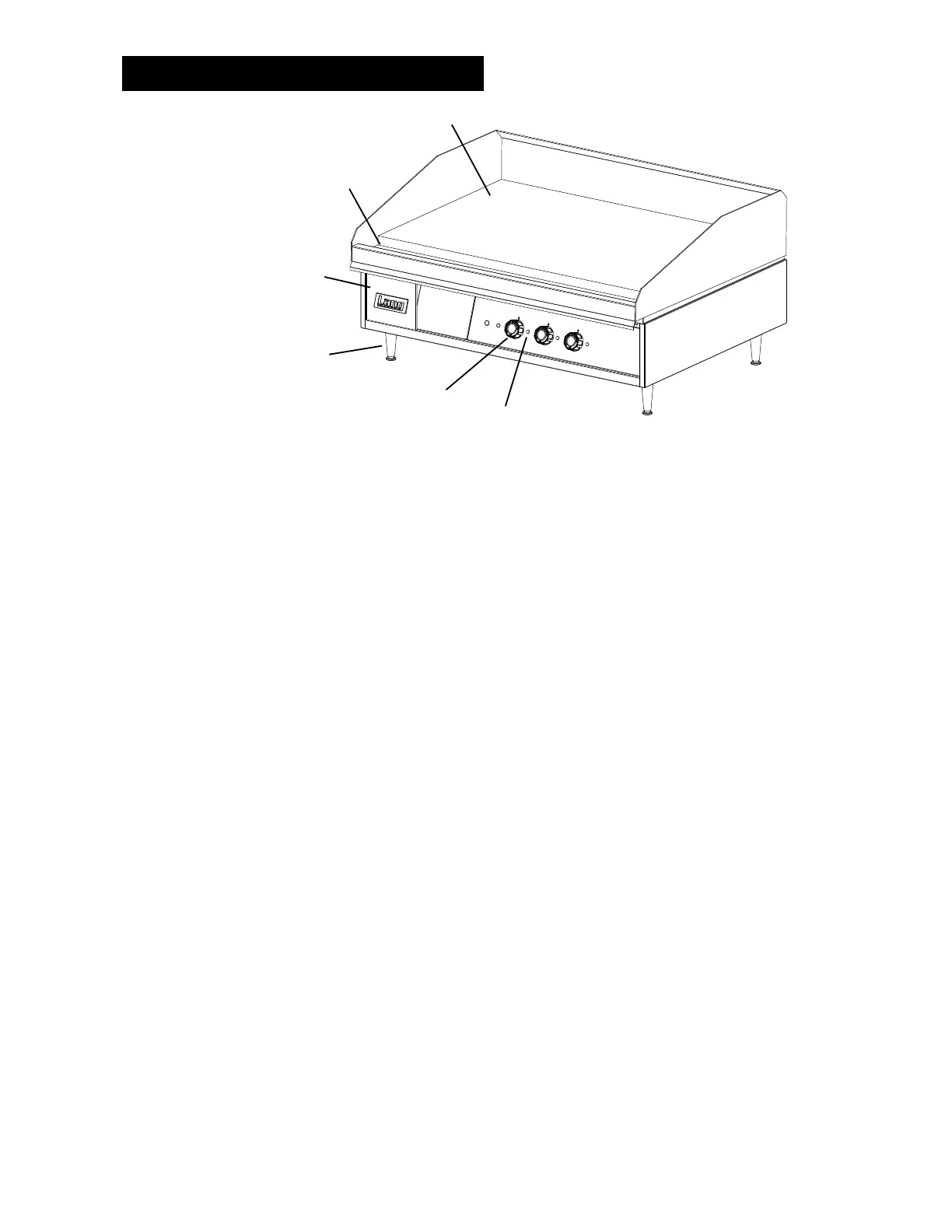

Griddle Surface
Gutter
Grease Pan
Legs
Section
Temp. Dial
Section
Pilot Light
IL1553
