MAINTENANCE
44

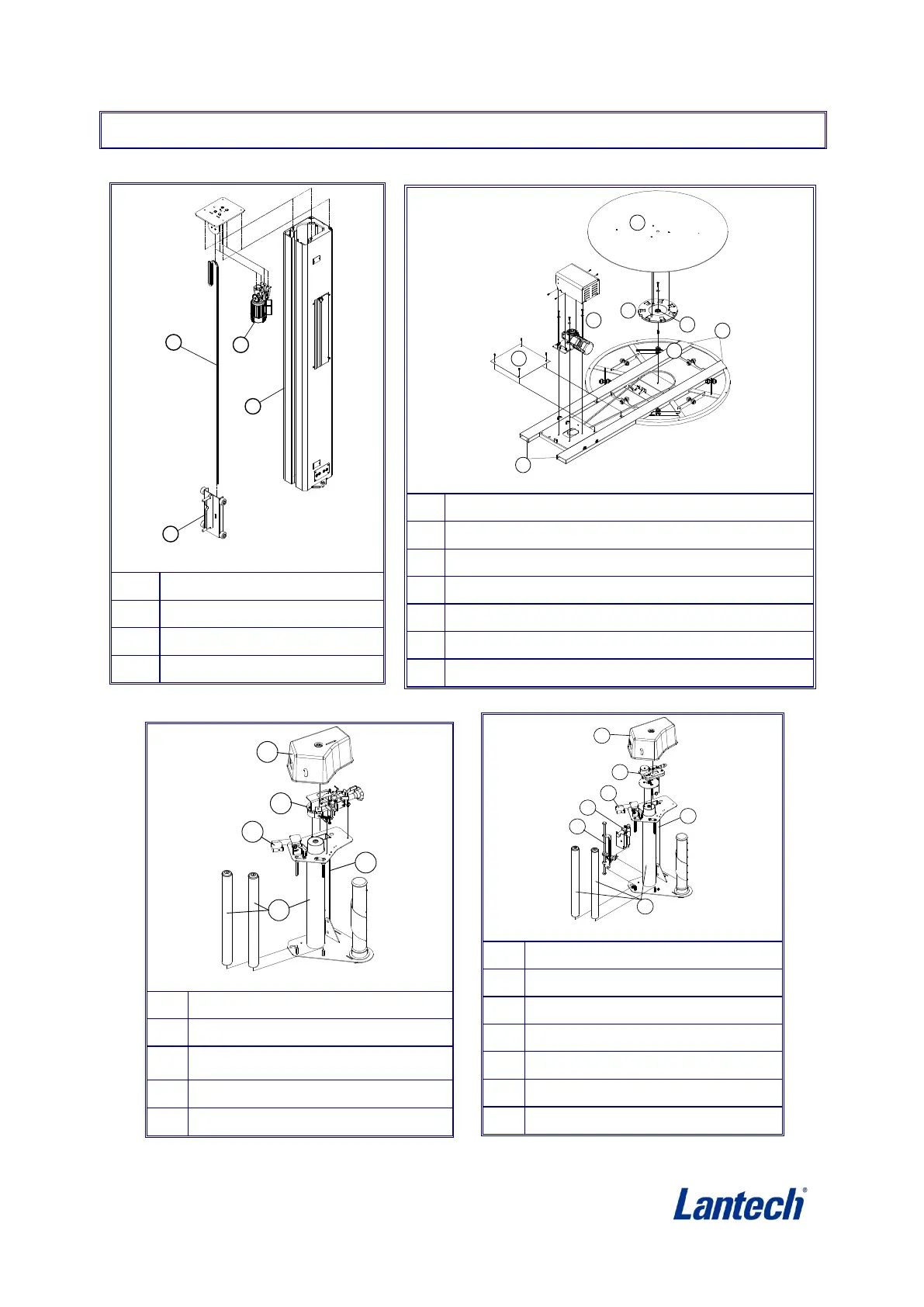

Figure 7.3
1 Turntable Top
2 Drive Ring with Home Proximity Actuator
3 Bearing Support with Home Position Proximity Sensors
4 Turntable Motor and Belt
5 Cover Plate
6 Center Bearing
7 Forklift tubes and access points
Figure 7.2
1 Mast Frame
2 FDS Carrier
3 Lift Drive
4 Lift Chain
Figure 7.4 – Mechanical Brake
1 FDS Top Cover
2 Film Tension Assembly
3 Film Overwrap Photoelectric Sensor
4 Film Rollers
5 FDS Frame
Figure 7.5 – Electrical Brake
1 FDS Top Cover
2 Film Tension Assembly - Electrical
3 Film Overwrap Photoelectric Sensor
4 Film Rollers
5 FDS Frame
6 Auto Film Cut-off™ (Option)
7 Pallet Grip® (Option)
1
2
3
4
5
6
7
7
1
3
4
2
1
2
3
4
5
1
2
3
4
5
6
7
