8: Line and Tunnel Settings

EDS1100/2100 Device Server User Guide 45

Line Configuration

This page shows the configuration settings for the serial line selected at the top of the page and

lets you change the settings for that serial line.

To configure a specific line:

1. Select Line on the menu bar, if you are not already in the Line web page.

2. Select a line number at the top of the page.

3. Select Configuration. The Configuration page for the selected line appears.

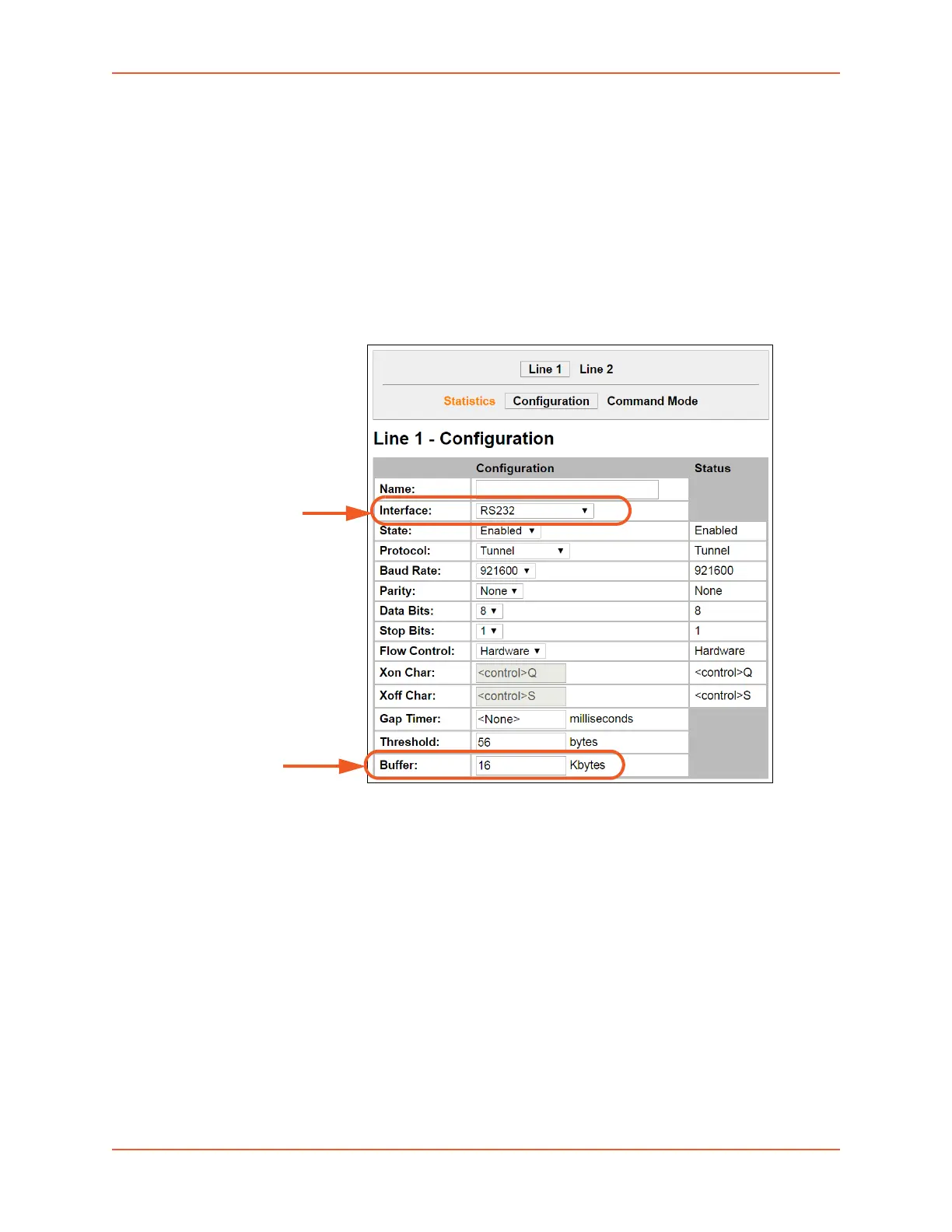

Figure 8-2 Line 1 Configuration

Note: The Interface

option is only supported

in XPort Pro, EDS4100,

EDS1100 and

EDS2100.

Note: The Buffer option

is only supported in

EDS1100 and

EDS2100.
