C-1
C: Pinouts
In the following diagrams, unlabeled pins are not connected.
C.1 Ethernet Connector
The MSS uses a standard Ethernet pinout. The figure below shows the MSS RJ45
Ethernet connector pin connections.

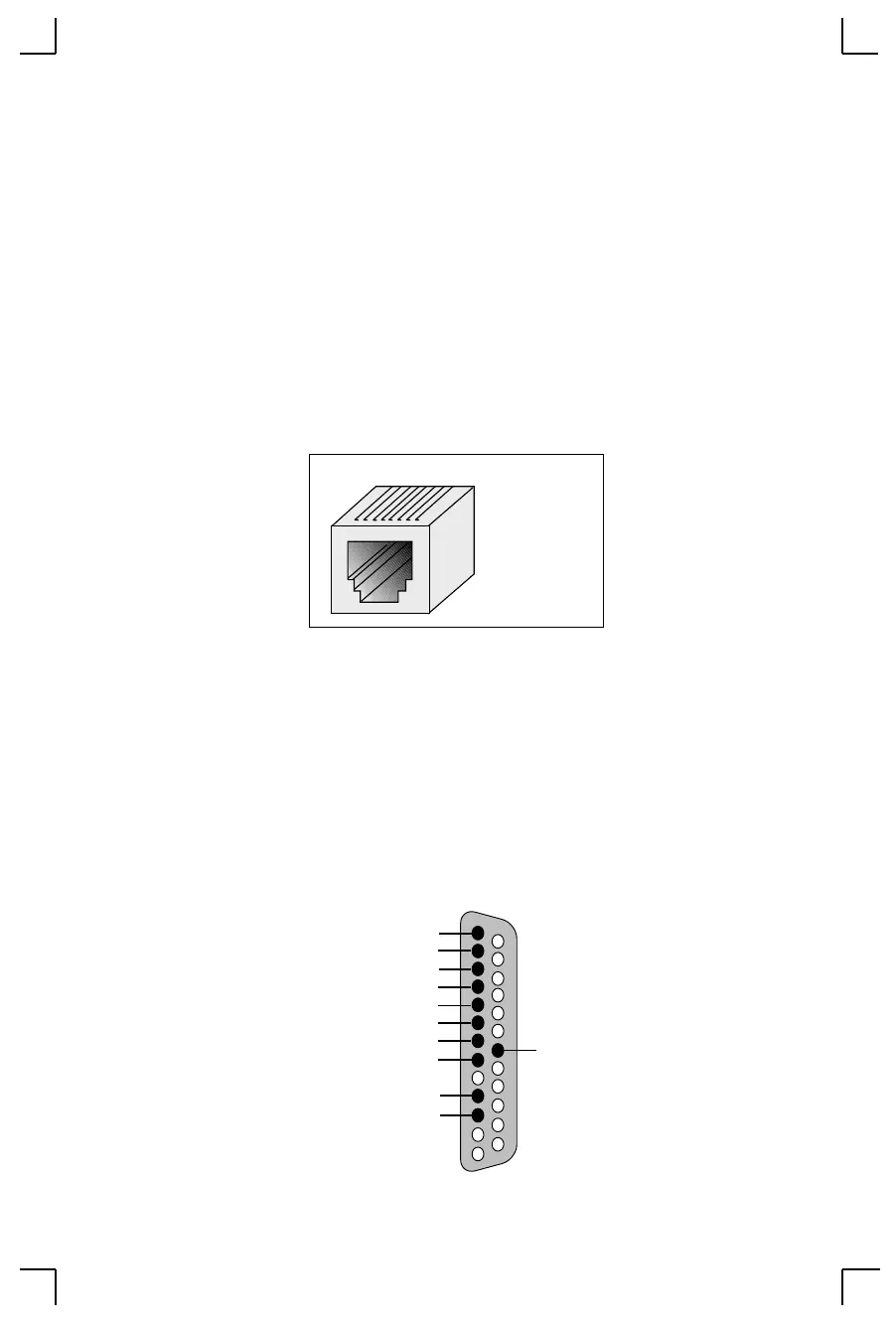

Figure C-1: RJ45 Ethernet Connector
C.2 MSS Serial Connector
C.2.1 DB25 Connector
The figure below shows the pin connections of the MSS DB25 connector.
Figure C-2: DB25 Serial Connector
1 2 3 4 5 6 7 8
1 RX+
2 RX-
3 TX+
6 TX-
TX (out)
RX (in)
RTS (out)
CTS (in)
DSR (in)
DTR (out
1
14
GND
CD (in)
Shield
PWR GND*
+5V*
DTE DB25 Male
1
25
