Lanzar SDIN74DU User Manual

6

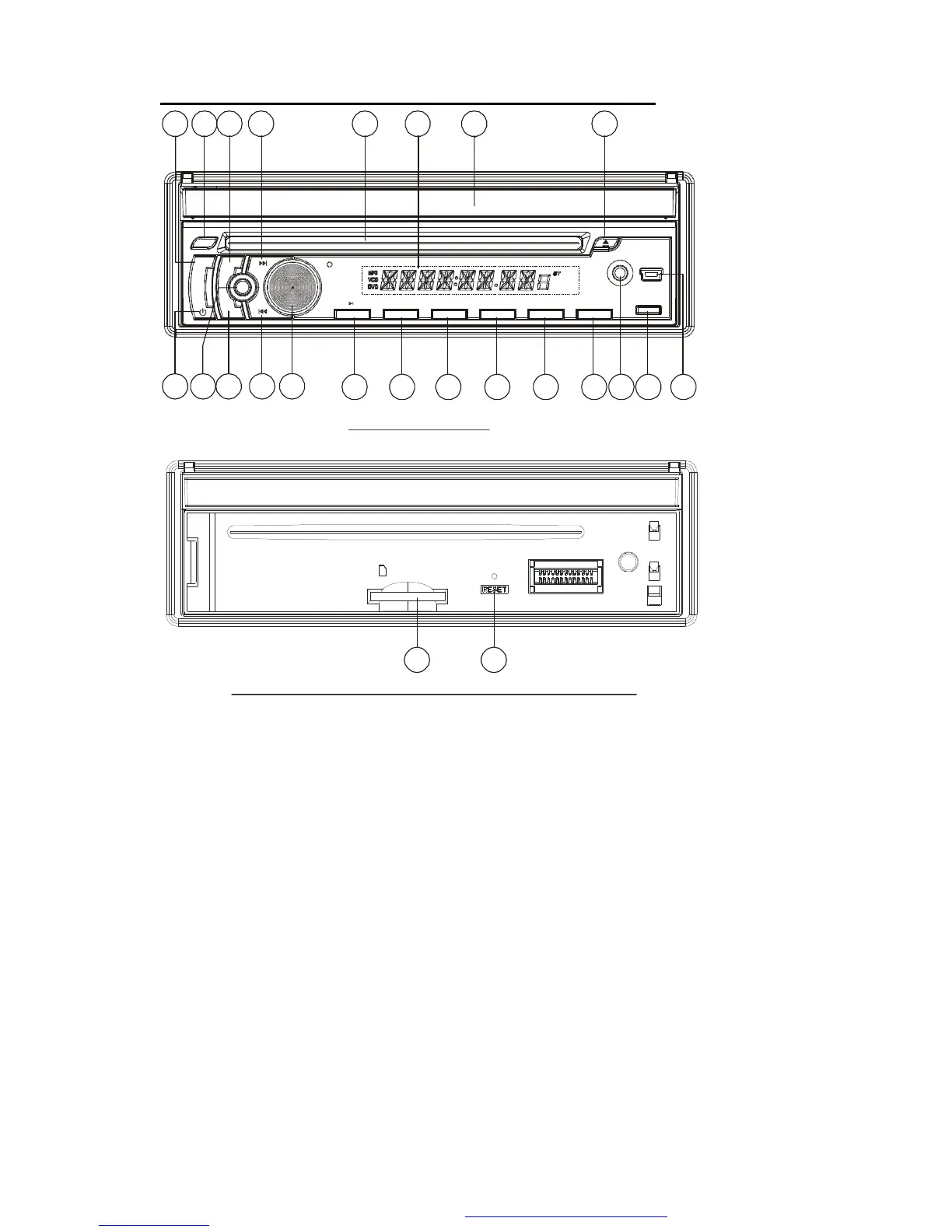

1.6 The Locations and Names of Controls on or in the unit
The Front Facet after removing the front panel
7
21
SD/MMC
1
2
3
4
6
10
9
8
11
12
14
16
17
5
13
18
15
19
20
22
23
24
The Front Panel
MODE
REL
+10
6
USB
1
RPT
INT
2 3
-10RDM
4 5
OPEN
AV IN
APS
MUTE
BAND
1. OPEN button
2. POWER/MUTE button
3. Monitor
4. AV IN socket
5. Disc Slot
6. USB Jack
7. SD/MMC Card Slot
8. MODE button
9. VOL knob
10. >>| button
11. |<< button
12. PLAY/PAUSE/1 button
13. INT/2 button
14. RPT/3 button
15. RDM/4 button
16. - 10 / 5 button
17. + 10 / 6 button
18. BAND button
19. APS button
20. EJECT button
21. RESET button
22. Small LCD Screen
23. IR Remote Sensor
24. REL button
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

Lanzar SDIN74DU Specifications

Power

power supply requirement	DC 12V
maximum power output	4 x 80W (measured at DC 14.4 V)

Video Specifications

video type	16:9 and 4:3
video output level	Composite: 1.0± 0.2Vp-p
horizontal resolution	500

Audio Specifications

audio output (analog audio)	2.0+0-1.0Vrms
frequency response	20Hz ~ 20KHz (at 1KHz 0 dB)
S/N ratio (audio)	≥90dB (at 1KHz 0 dB)
separation	50dB

Radio Specifications

FM frequency range (EU)	87.5MHz - 108.0MHz
FM frequency range (US)	87.5MHz - 107.9MHz
FM usable sensitivity	3uV
FM I.F frequency	10.7MHz
AM frequency (EU)	522KHz - 1620KHz
AM frequency (US)	530KHz - 1710KHz

Weight and Dimensions

dimensions	178 x 50 x 160 mm
