7.1.4 SR18 / SR18G-DB9 RELEASE

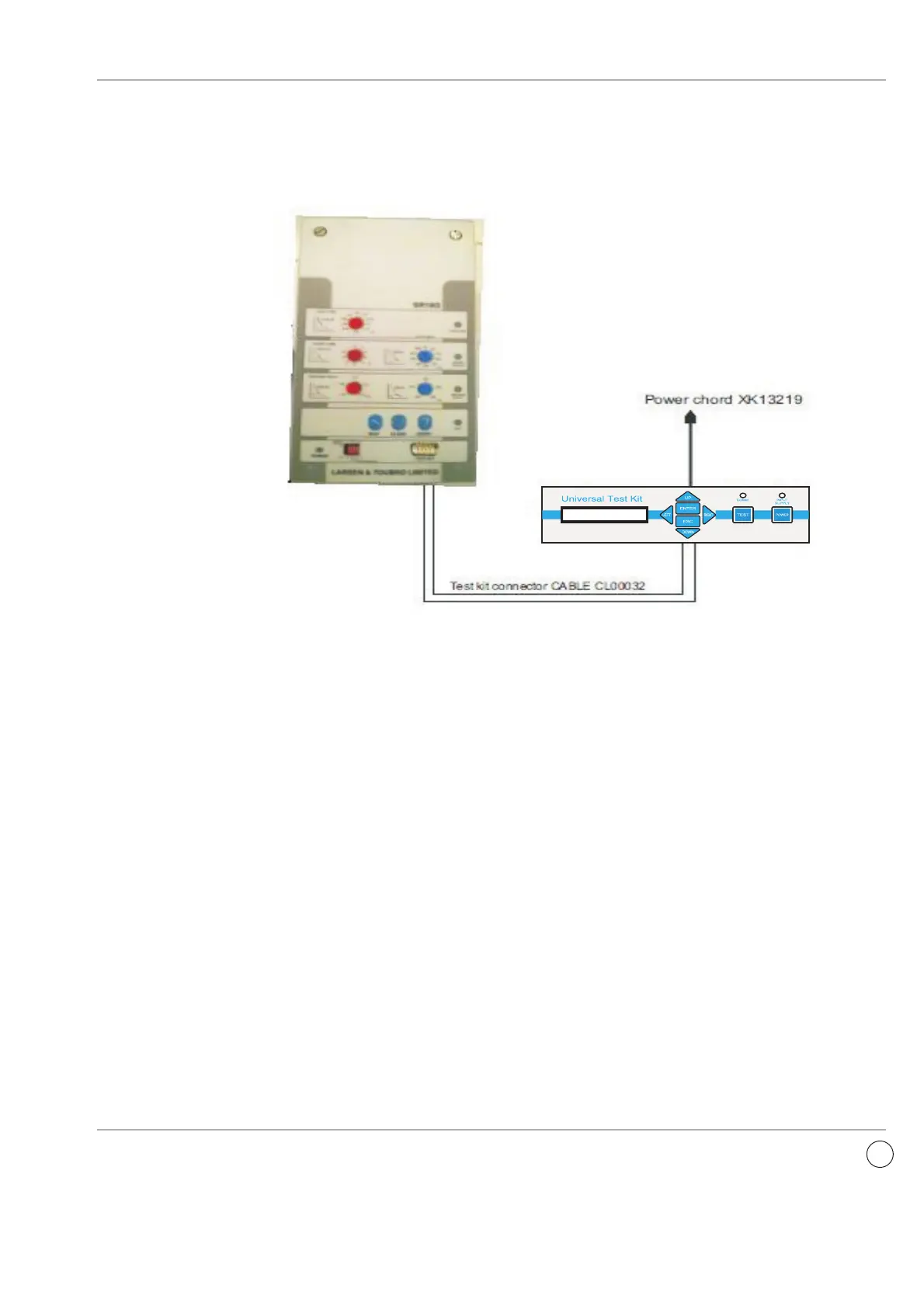

1) Connect CL00032 to release.
2)
3)
Connect the power chord XK13219 to test kit.
4)
Turn on test kit, do the settings of protections to be tested as per
Table 1.
5)
Do the testing.
Reposition the FSD before start of each test to charged condition.
Note :- SR18 release will be test under SR18G.
Note :- DB9 represent 9 pin test port connector.
