Larsen & Toubro Universal Test Kit User Manual

7.1.5 SR18G/SR18GD/GDi RELEASE-DB15

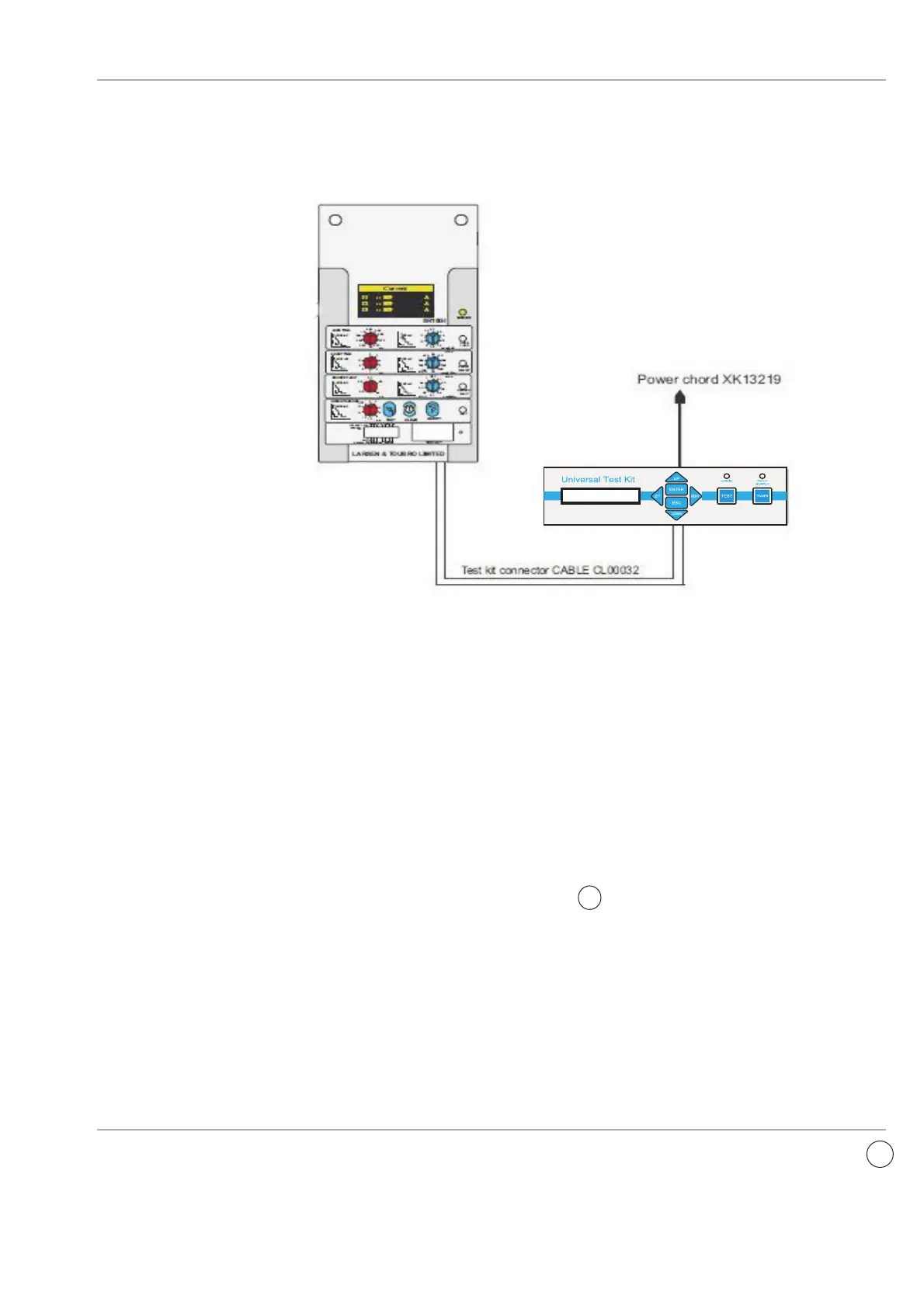

1) Connect CL00032 to release.
2)
3)
Connect the power chord XK13219 to test kit.
4)
Turn on test kit, do the settings of protections to be tested as per
Table 1.
5)
Do the testing.
Reposition the FSD before start of each test to charged condition.
Note :- DB15 represent 15 pin test port connector.
E/F I2T ON test not supported by test kit.
E/F I2T OFF non-trip test not supported by test kit.
