23
FIGURE-8 DEVICE
Before figure-8ing, inspect the reel for nails, sharp edges, missing boards or anything that could
obstruct movement of the cable. Remove or repair accordingly before using the trailer.

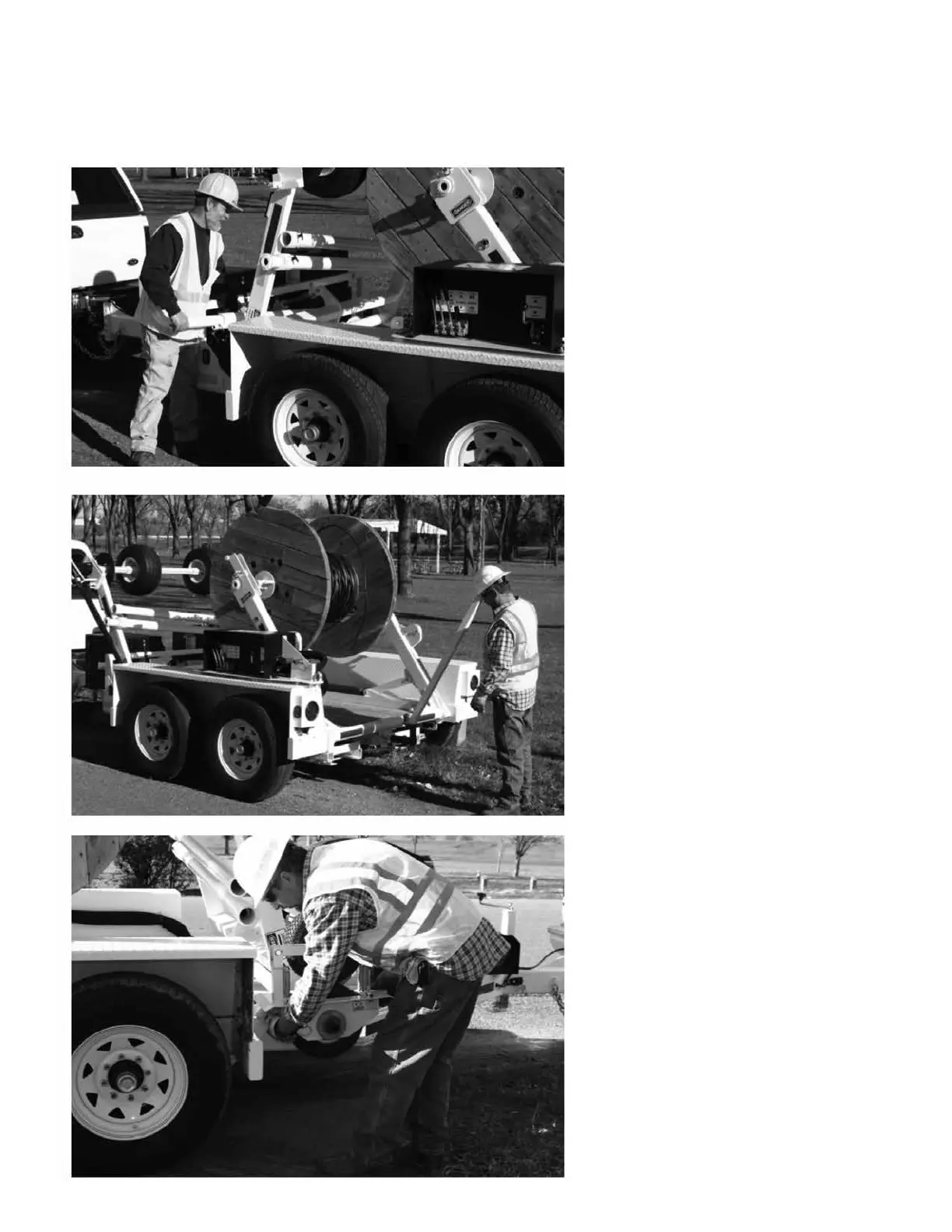

1. Remove the figure-8 pole from
the tool storage tray at the front of
the trailer.
2. Place the pole into the tube on
the receiver hitch.
3. Remove the figure-8 device from
the mount on the right side of the
trailer.
23
FIGURE-8 DEVICE
Before figure-8ing, inspect the reel for nails, sharp edges, missing boards or anything that could
obstruct movement of the cable. Remove or repair accordingly before using the trailer.
1. Remove the figure-8 pole from
the tool storage tray at the front of
the trailer.
2. Place the pole into the tube on
the receiver hitch.
3. Remove the figure-8 device from
the mount on the right side of the
trailer.
