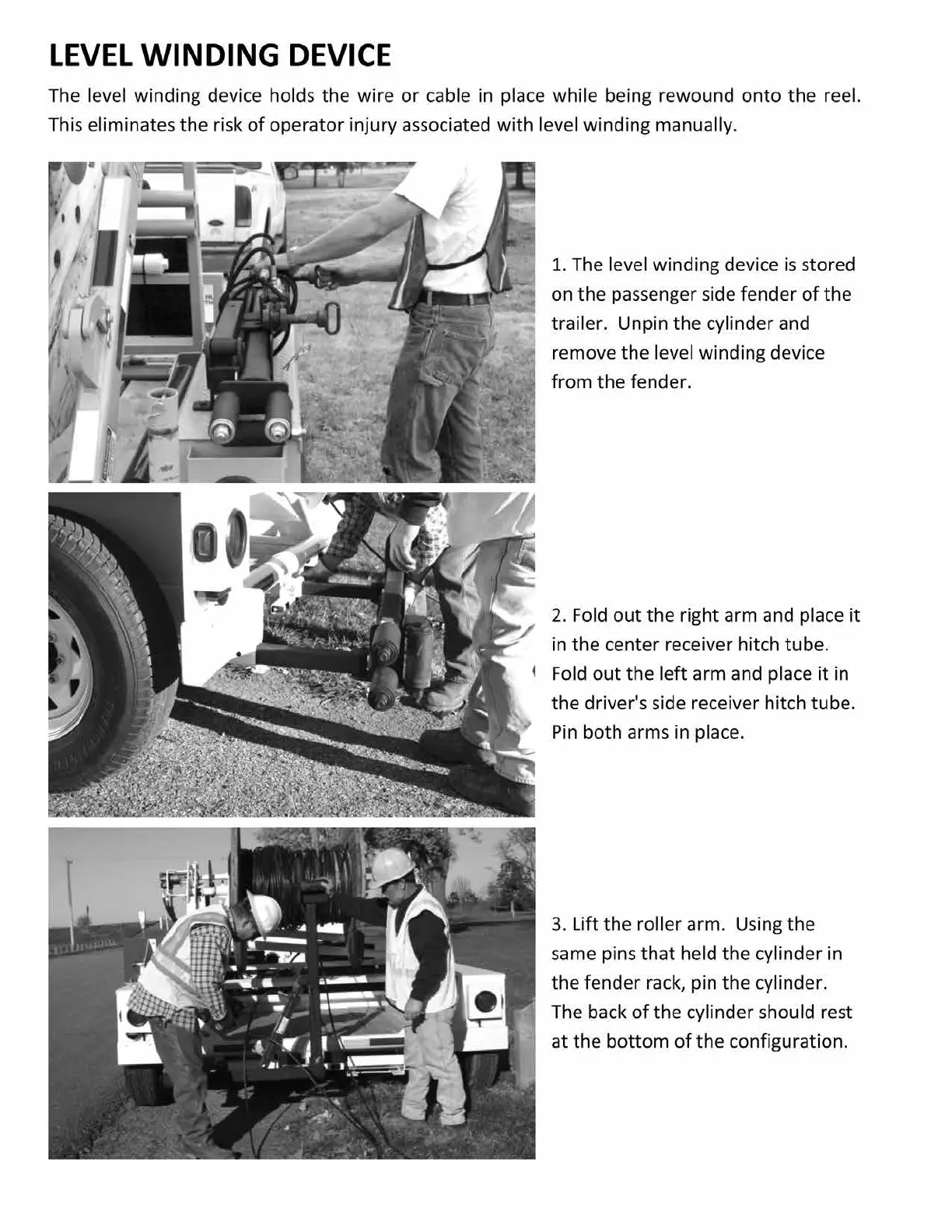

LEVEL WINDING DEVICE
The level winding device holds the wire or cable in place while being rewound onto the reel.
This eliminates the risk of operator injury associated with level winding manually.
1. The level winding device is stored
on the passenger side fender of the
trailer. Unpin the cylinder and
remove the level winding device
from the fender.
2. Fold out the right arm and place it
in the center receiver hitch tube.
Fold out the left arm and place it in
the driver's side receiver hitch tube.
Pin both arms in place.
3. Lift the roller arm. Using the
same pins that held the cylinder in
the fender rack, pin the cylinder.
The back of the cylinder should rest
at the bottom of the configuration.
