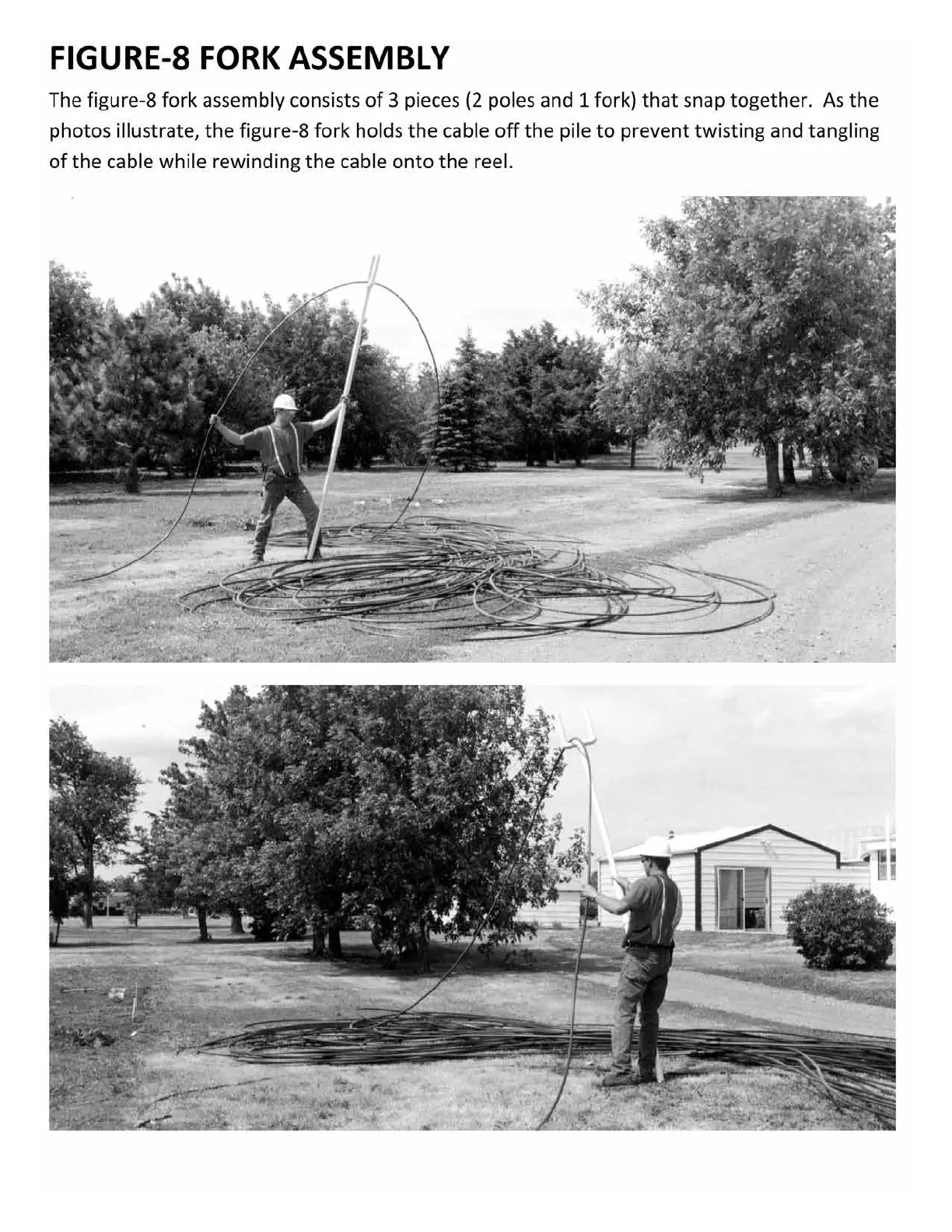

FIGURE-8 FORK ASSEMBLY
The figure-8 fork assembly consists of 3 pieces (2 poles and 1 fork) that snap together. As the
photos illustrate, the figure-8 fork holds the cable off the pile to prevent twisting and tangling
of the cable while rewinding the cable onto the reel.
