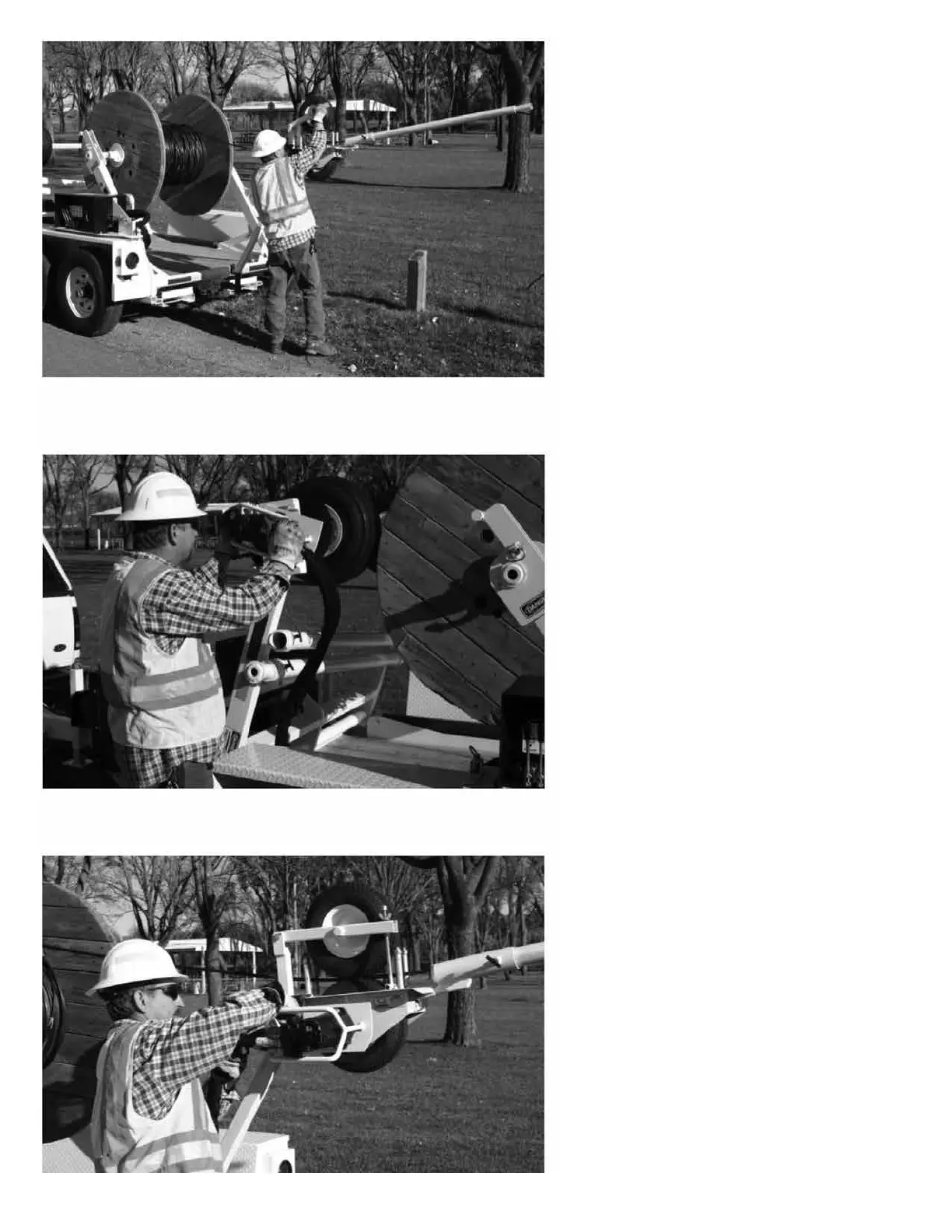

7. Close and lock the figure-8 device.

8. Remove the orbital motor from

the reel-turner axle.

9. Place the orbital motor on the

figure-8 device and engage the

spring latch to lock into place.
