LAS 16260 - Electrical Connection; Replacing a Defective Fuse; Maintenance and Environmental Notes; Maintenance and Care

4
Automatic
Connect the plus cable (red cable with fuse) to the permanent plus, terminal 30. Connect the minus cable (black cable with eyelet) to the
switched plus of the ignition switch, terminal 15. The device is switched o when the ignition is started.
With changeover relay
For this connection method, you will need an additional 12V car changeover relay (not included in the scope of delivery). Connect the
connections of the relay and the ultrasound marten repellent device as follows:
30 permanent plus
85 to earth, terminal 31
86 to the switched plus from the ignition switch, terminal 15
87 is not needed
87a to the red cable of the ultrasound device
Black cable of the ultrasound device to earth,
terminal 31

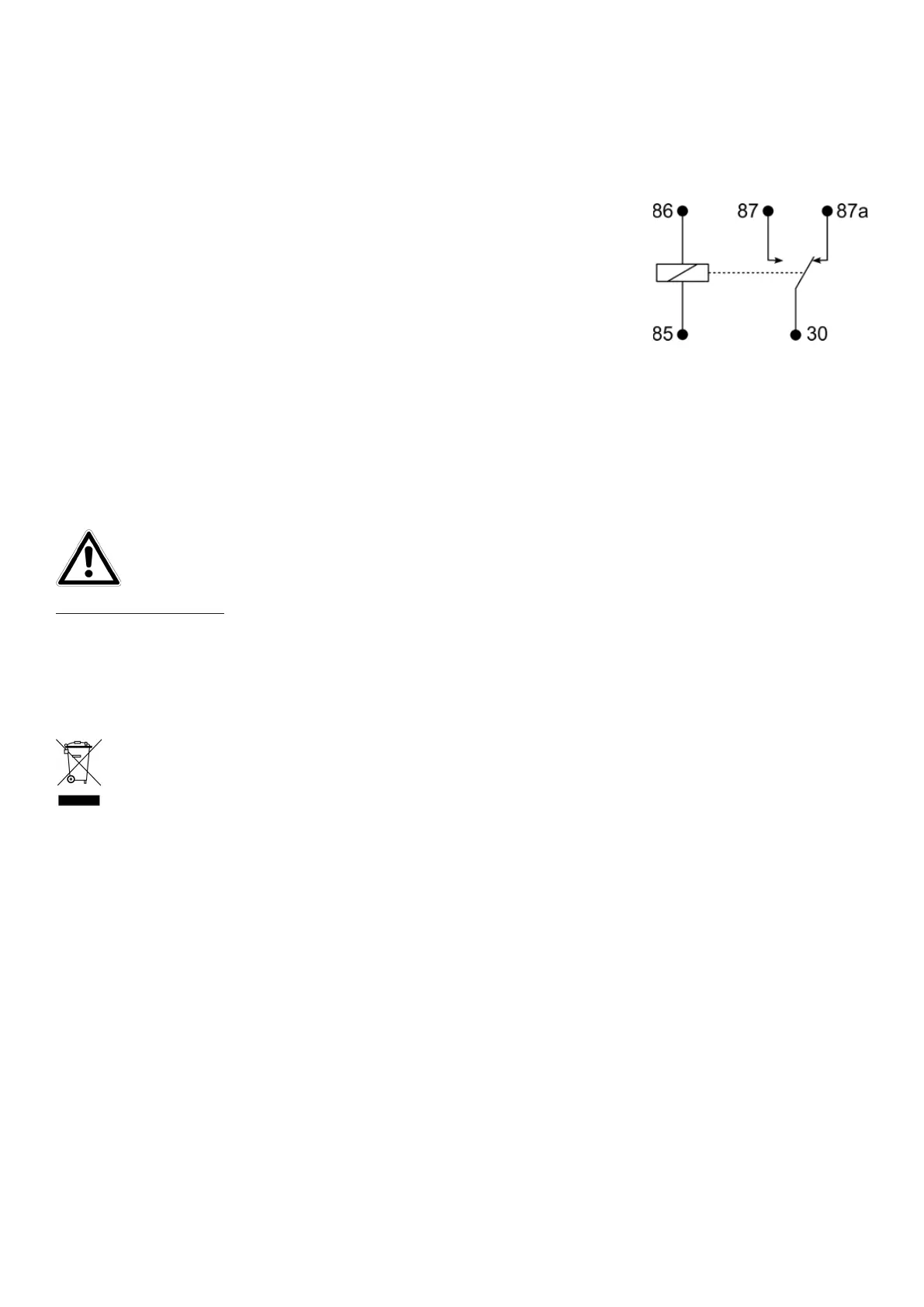

Circuit diagram of changeover relay
The device is now switched o when the ignition is started.
Permanent operation (not permitted for StVZO areas)
Connect the plus cable (red cable with fuse) to the permanent plus, terminal 30. Connect the minus cable (black cable with eyelet) to the earth,
terminal 31. The device will now operate permanently, thus also during travel.
Connect the battery again and check the rm seating of the pole clamps.
Make sure that the installation of the ultrasound marten repellent device does not inuence any other functions of the vehicle.
CAUTION: When the vehicle stands for a long time, the battery may discharge.
Replacing a defective fuse
Unscrew the housing of the fuse holder in the plus cable. Replace the defective fuse with a new, fuse of the same type F 200mA 250V. Screw the
fuse holder back together again.
Maintenance and care
If used in accordance with the intended purpose, the ultrasound marten repellent device is maintenance-free.
Notes regarding environmental protection
Do not dispose of electrical devices with the household waste! Electrical and electronic scrap must be collected separately and
disposed of in an environmentally responsible manner for recycling. Please contact your community or city administration regarding
disposal options for electrical and electronic scrap.
Contact information
EAL GmbH
Otto-Hausmann-Ring 107
42115 Wuppertal
Germany
Telephone: +49 (0)202 42 92 83 0
Fax: +49 (0)202 2 65 57 98
Internet: www.eal-vertrieb.de
Email: info@eal-vertrieb.com
