a = max . 22.5 cm / 9 in.

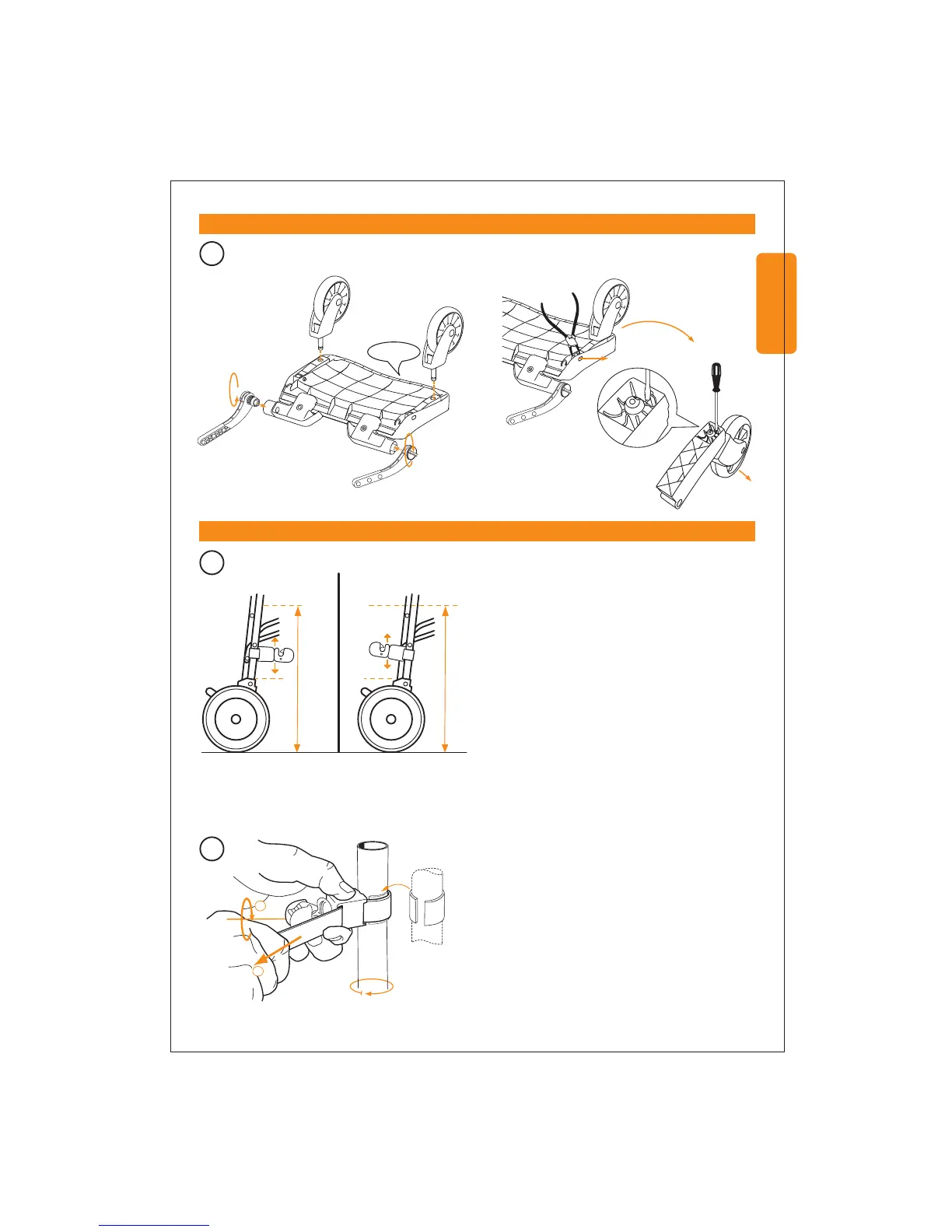

2. Positioning the connectors.
The connectors can be attached facing forward
or backwards. The connectors can be fitted onto
different shapes of tubing with a maximum
circumference of 22.5 cm (9 in.). Bend the
strap round the tubing. Then feed the strap
through the slot in the connector cover and
pull the strap gently. Check the position of the
connectors to be sure that
• the arms (81300/81301) will be able to reach
the connectors (maximum 35 cm (14 in.),
with
extenders accessory 39 cm (15,5 in)
,
above the
ground
).
• they are as low as possible on the stroller.
• they do not interfere with the stroller’s folding
mechanism.
• the arms stay clear of both the braking
mechanisms and the wheels of the stroller.
3. Attaching the connectors.
Once certain of the position of the connectors,
loosen the strap and fix the Friction Tape on the
uprights where the connectors are going to be
attached. Reposition the connector over the
friction tape and pull the strap tight. Secure the
connector by turning the connector-bolt
clockwise. Check that the stroller still folds
properly and the brakes still work properly; if
not, you may need to reposition the connectors.
2
3
2
1
- 5 -
THE CONNECTORS
Friction Tape
(Detaching the wheels)
THE WHEELS AND ARMS
1. Attaching the wheels and the arms.
1
I
II
For more details: www.buggyboard.info
Click
35 (39) cm/ 14 (15,5) in.
35 (39) cm/ 14 (15,5) in.
