AQua-Master
ENGLISH

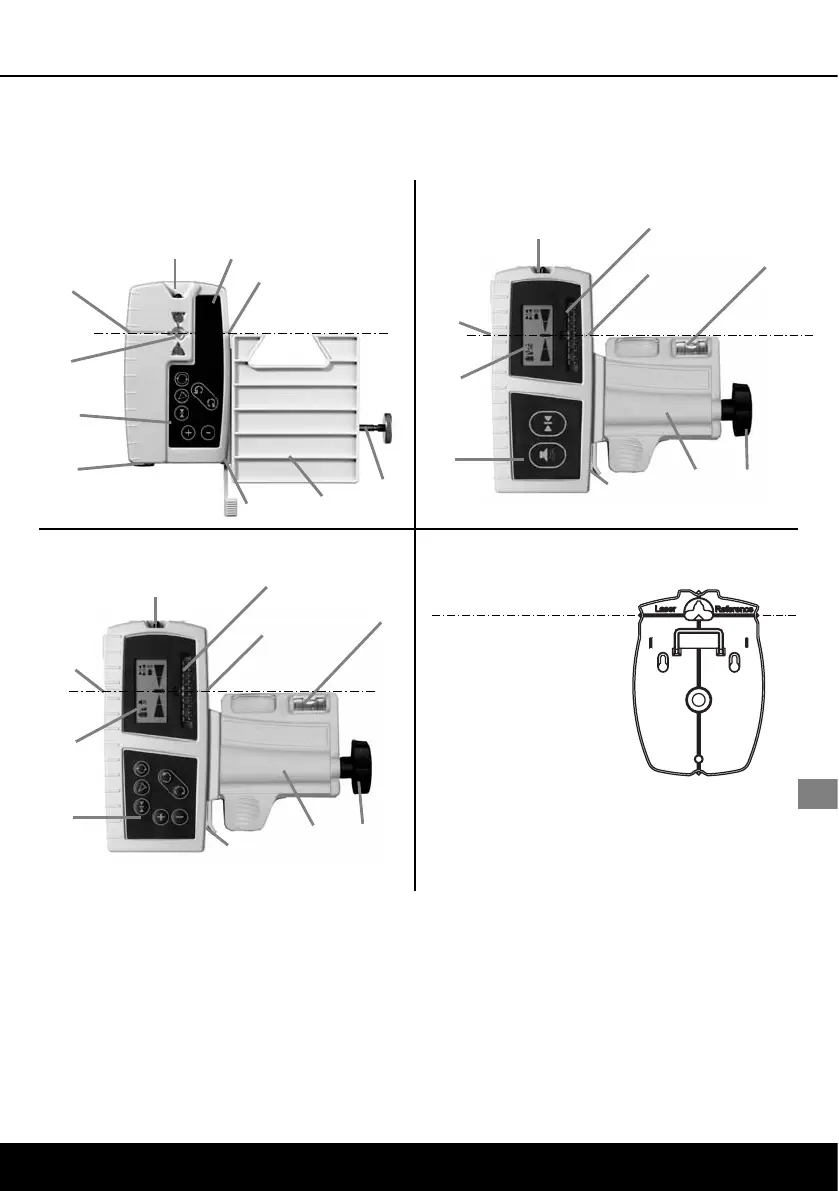

1 IR output signal
2 Receiver field for laser beam
3 SpotLite marking LED (not with
SensoCommander Coolblue)
4 LED display
5 Vial
6 Securing screw
7 Universal mount
8 Securing lever
9 Battery compartment (on back)
10 Control panel
11 LCD display (on back)
12 LCD display
13 All-round marking groove
SensoCommander (optional) - Accessory
The SensoCommander is an all-in-one remote control and laser receiver unit.
3
1
6
7
8
10
13
2
3
1
6
7
8
10
9
11
12
13
5
2
3
1
6
7
8
10
9
12
11
13
5
SensoCommander 120:
(Diodes also on the back)
SensoCommander Classic:
SensoCommander Pro:
2
4
9
(screwed)
Vertical / wall mount
For vertical
applications on
tripod and for
mounting the
AQuaMaster on
walls. The reference line indicates the
laser plane and facilitates alignment of
the laser.
Laser plane
15
