If the device has been placed on a surface with too much of a slope
(more than 4°), the prism head remains stationary and the laser starts
to flash. The device must then be placed on a more even surface.
!
Horizontal levelling and vertical levelling
– Position the device on a level surface or on a tripod, horizontal or vertical.
– Press the „ON/OFF“ switch.
– The device levels itself automatically to within a range of ± 4°. During
the set-up phase, the laser flashes and the prism head remains stationary.
When levelling is complete, the laser lights up continuously and rotates
at maximum speed.
EN

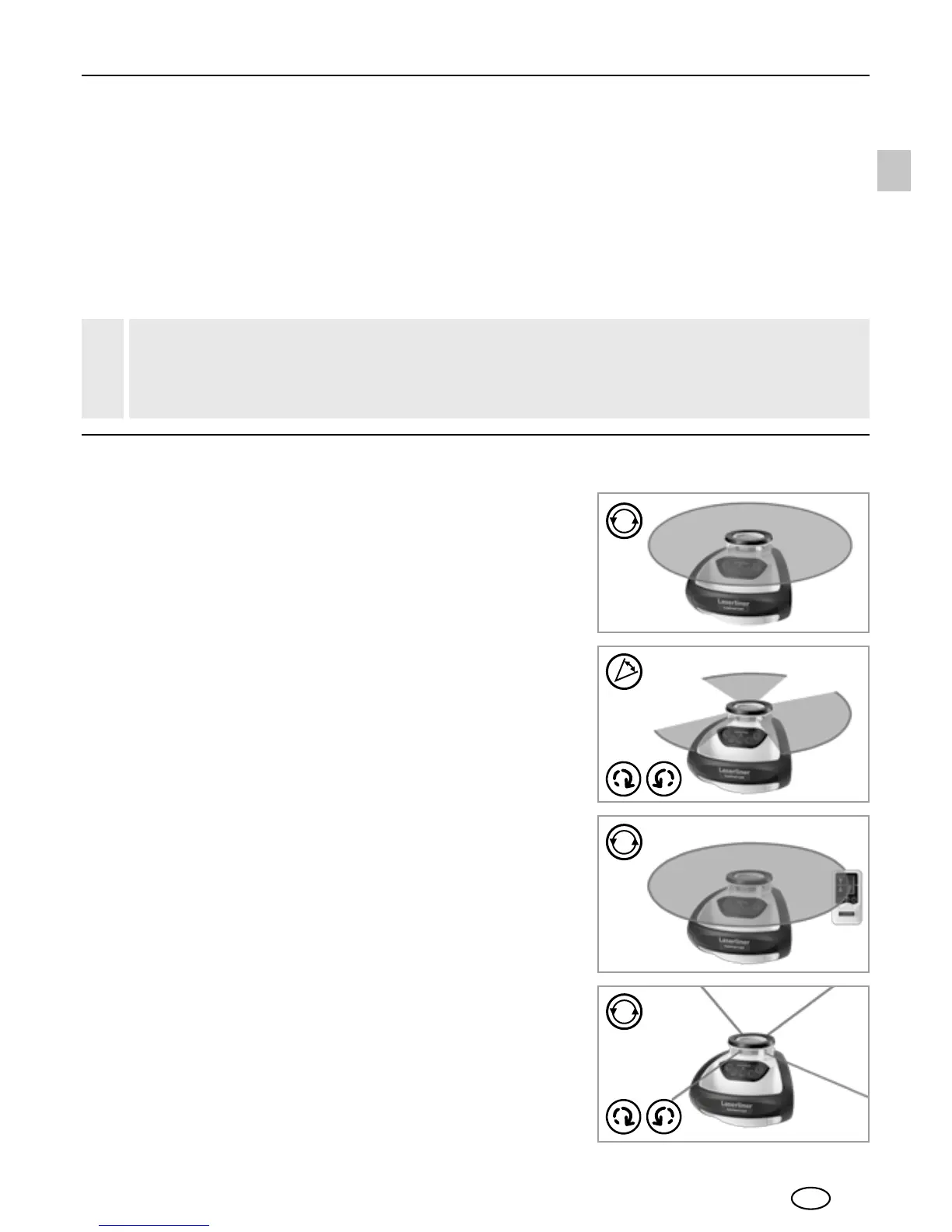

Laser modes
Rotary mode
The following speeds can be set using the rotary
button: 0, 150, 300, 600 rpm
Spot mode
You access spot mode by pressing the rotary
button repeatedly until the laser stops rotating.
The laser is turned into the required position
with the positioning buttons. The prism head
can be alternatively turned by hand.
Scan mode
The scan button can be used to activate and set
a lightintensive segment in 3 different widths.
You position the segment via the direction
buttons.
Hand receiver mode
Working with the laser receiver (available as an
optional extra): Set the rotary laser to maximum
speed and switch on the laser receiver. Refer to
the operating instructions for the respective laser
receiver about this.
