BeamControl-Master BCMBeamControl-Master BCM
ENGLISH 15
Horizontal
Vertikal

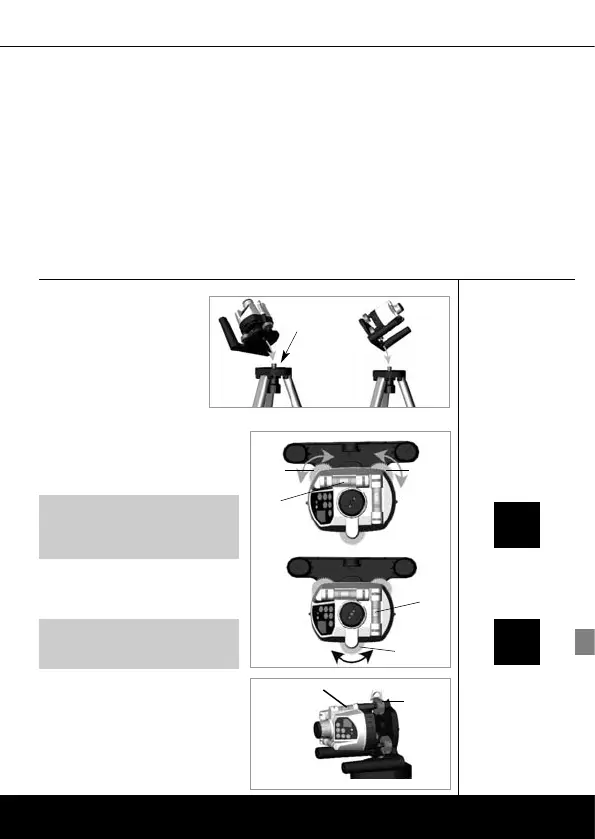

1. Installing
1.1 Setting-up
Set the BCM up on a
firm base or mount it
onto a stand with a
5/8" thread.
B
A
Libelle X
1.2 Adjust horizontal
Start adjusting the vial (X) by turning
the levelling screws (A) and (B).
1.3 Adjust vertical
Set the BCM up vertically on its
integral handles or mount the
BCM onto a stand.
Now adjust only the level (Z)
with the levelling screw (C).
Now turn the levelling screw
(C) to adjust the vial (Y).
Note
Please look always vertically at the
vial in order to avoid reading
errors.
C
Libelle Y
Note
Repeat the whole action, if neces-
sary.
Libelle Z
C
Installing
Setting-up
Adjust
horizontal
Adjust vertical
Note
Note
Warranty
The manufacturer grants a warranty for this
instrument for a period of 24 months after
date of purchase. Within this period we will, at
our own discretion, repair all defects based on
faulty material or workmanship, or we will
replace these parts.Excluded from this
warranty are: damages caused by improper use
(operation with unsuitable electrical
power/tension; connection to unsuitable
power sources) or storage, normal wear and
also defects which do not or do only hardly
minimze the value or the suitability of the
instrument. This warranty becomes null and
void in cases unauthorized persons attempt to
repair this instrument.
The warranty only becomes valid when the
date of purchase has been verified by stamp
and signature of the dealer, and the serial
number of the device is to be stated, too.
The warranty is valid in all countries where this
instrument is being sold by UMAREX-Laserliner
or by authorized dealers. In case of a claim
under this warranty please return this
instrument, together with all accompanying
information and the invoice, to an authorized
dealer or to the manufacturer.
