15
ON
External
influence
Adjustment phase
Sensor Automatic

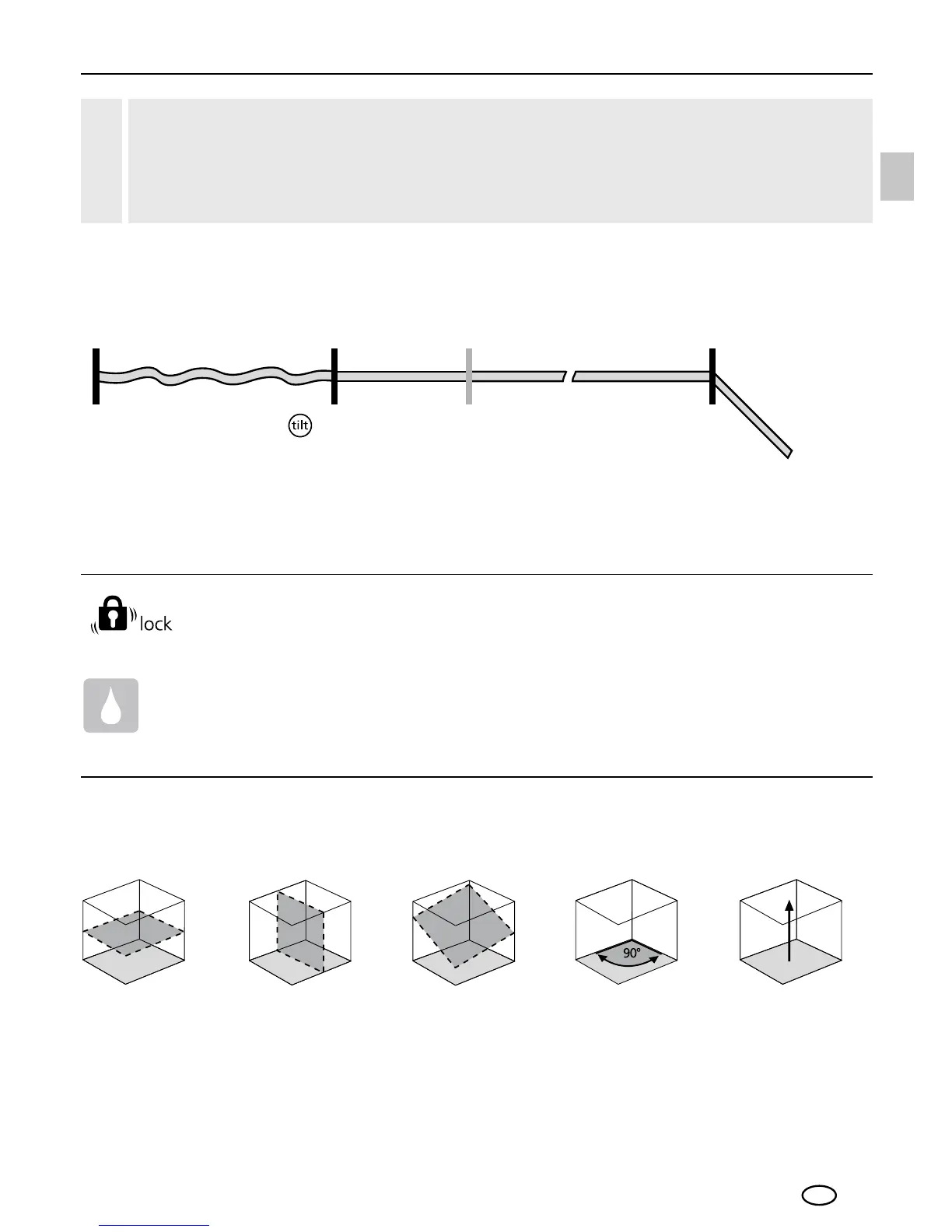

ADS activation:
press the tilt
button; the tilt
LED flashes every
second.
The
laser
remains stationary as
a precaution, the laser
flashes and the tilt
LED is lit continuously.
ADS active after
30 seconds, rapid
flashing of the
tilt LED.
Rotation
begins
ADS function
The ADS does not activate the monitoring function until 30 seconds
after the laser levelling procedure has been completed (set-up phase).
The tilt LED flashes every second during the set-up phase, rapid
flashing, when ADS is active.
!
Transport LOCK: The device is protected by a special motor
brake during transport.
IP 66
The device characterised by specific protection against
dustand rain.
auto auto man
Horizontal
levelling
Vertical
levelling
Inclined plane 90° angle 90° reference
function
Space grids: These show the laser planes and functions.
auto: Automatic alignment / man: Manual alignment
