Completely read through the operating instructions,
the “Warranty and Additional Information” booklet as
well as the latest information under the internet link at
the end of these instructions. Follow the instructions
they contain. This document must be kept in a safe
place and passed on together with the device.
!
Function / application
Digital calliper gauge for precise measurement of lengths
– Functions: External measurement, internal measurement,
depth measurement, differential measurement through
zero position, level measurement
– 5-digit display
– Measurement range: 0 … 150 mm
General safety instructions
– The device must only be used in accordance with its intended
purpose and within the scope of the specications.
– The device and its accessories are not toys.
– The structure of the device must not be modied in any way.
– Do not expose the device to mechanical stress,
extreme temperatures, moisture or signicant vibration.
– When using the device outdoors, make sure that the
weather conditions are appropriate and/or that suitable
protection measures are taken.
– Risk of injury! Not suitable for measuring rotating workpieces.
– Risk of cuts! The measuring surfaces are sharp and pointed and
may cause injuries – only hold them using the handles provided.
Safety instructions
Dealing with electromagnetic radiation
– The measuring device complies with electromagnetic
compatibility regulations and limit values in accordance
with EMC-Directive 2014/30/EU.
– Local operating restrictions – for example, in hospitals,
aircraft, petrol stations or in the vicinity of people with pace-
makers – may apply. Electronic devices can potentially cause
hazards or interference or be subject to hazards or interference.
– The measuring accuracy may be affected when working close
to high voltages or high electromagnetic alternating elds.
1
2
3
4
Measuring jaws for
external measurement
On/Off switch
Zeroing the
digital display
Scale 0 … 150 mm
5
6
7
8
9
Depth gauge
Measuring jaws for
internal measurement
LC display
Hold function
Battery compartment
Device description (see FigureA)
MetricStar
ON/OFF ZERO
HOLD
1.
MetricStar
ON/OFF ZERO
HOLD
2.
1

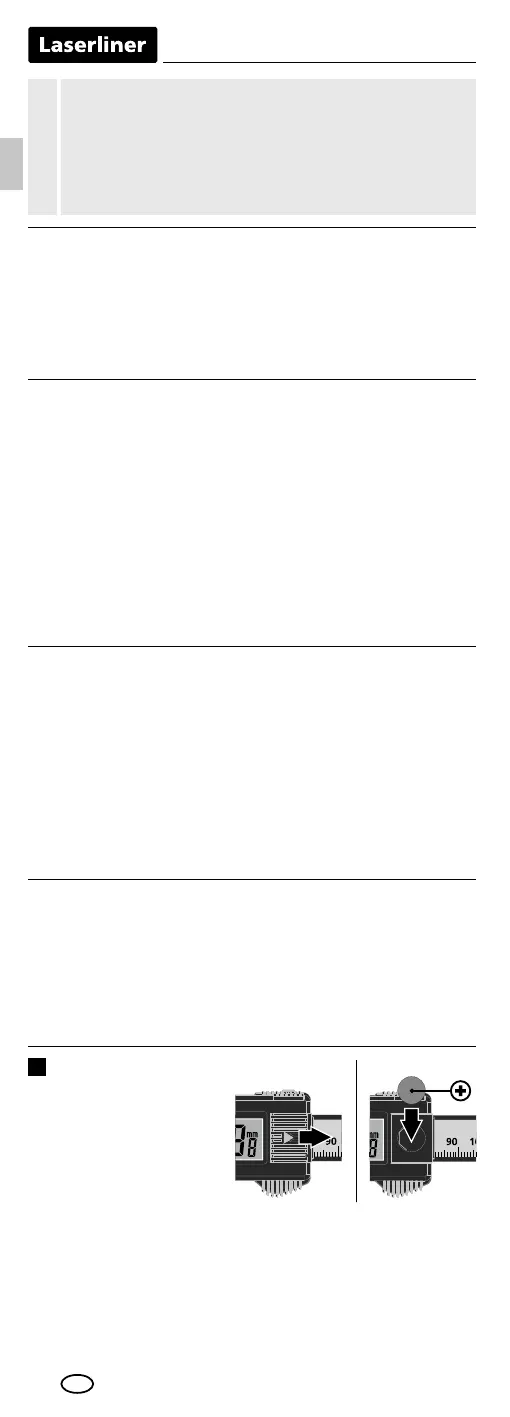

Inserting battery
Open the battery compart-
ment and insert battery
(1x LR44 button cell)
according to the symbols.
Be sure to pay attention
to polarity.
EN
