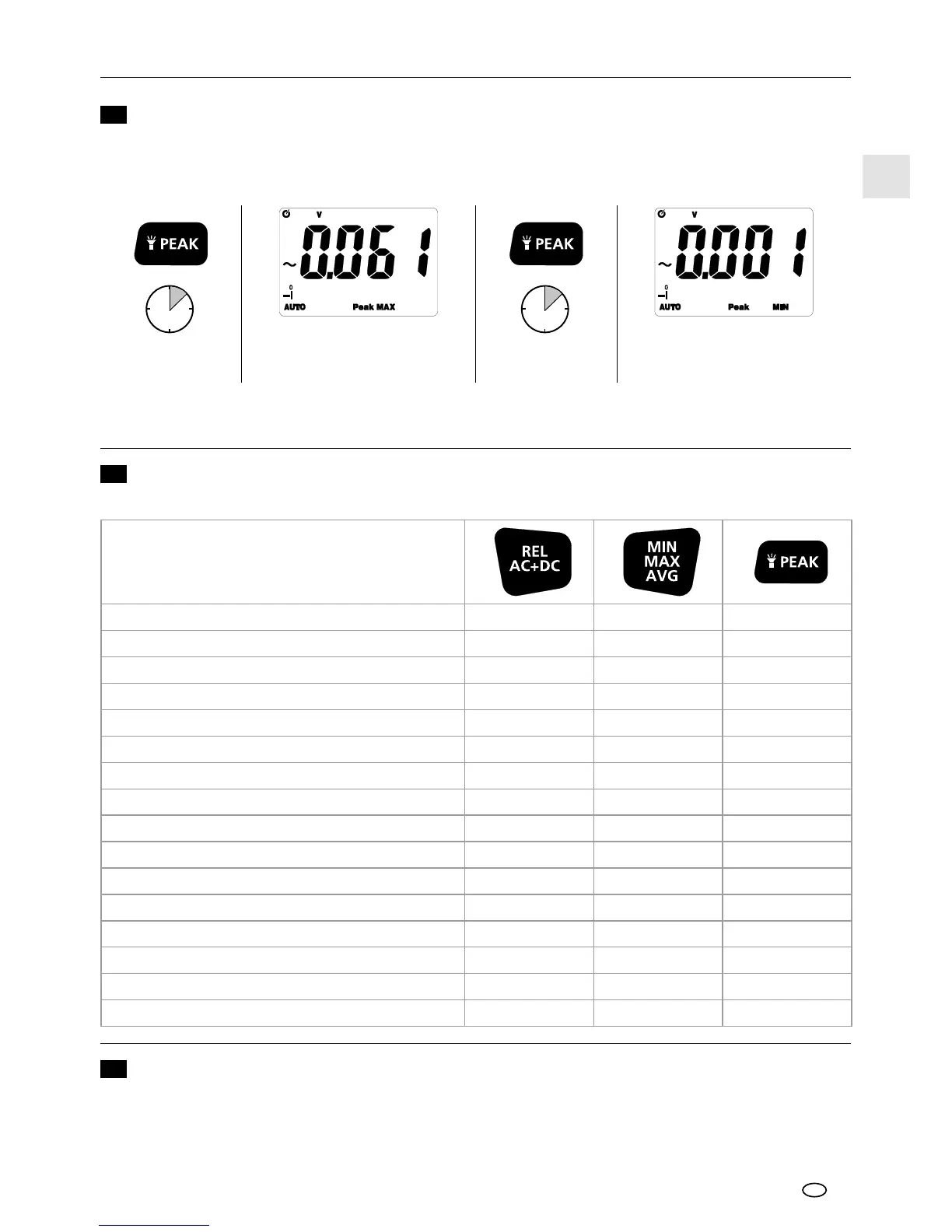

PEAK function (voltage peak function)
18
The PEAK function detects the highest positive and lowest negative peak in an AC voltage or AC
current wave form. The measured values are updated each time a higher positive or lower negative
PEAK is detected.
Briefly keep the PEAK button pressed to switch between Peak MAX and Peak MIN. To return to normal
operation, keep the PEAK button pressed until Peak on the LC display disappears.
Activate PEAK
"Peak MAX"
Switch to
"Peak MIN"
"Peak MAX"
Highest positive peak
"Peak MIN"
Lowest negative peak
Function overview
19
The function described under point 15 to 18 are available in the measurement variable shown below:
Current measurement AC (μA)
•
/ –
•
/
•
/
• •
Current measurement DC (μA)
•
/ –
•
/
•
/
•
–
Current measurement AC (mA)
•
/ –
•
/
•
/
•
–
Current measurement DC (mA)
•
/ –
•
/
•
/
•
–
Current measurement AC (10A)
•
/ –
•
/
•
/
•
–
Current measurement DC (10A)
•
/ –
•
/
•
/
•
–
Voltage measurement AC
•
/
• •
/
•
/
• •
Voltage measurement DC
•
/
• •
/
•
/
•
–
Frequency measurement – / – – / – / – –
Duty factor measurement – / – – / – / – –
Resistance measurement
•
/ –
•
/
•
/
•
–
Continuity test – / –
•
/
•
/
•
–
Diode test – / –
•
/
•
/
•
–
Capacitance measurement
•
/ – – / – / – –
Contact temperature measurement – / –
•
/
•
/
•
–
Low Z voltage measurement – / – – / – / – –
Flashlight function
20
Short-press the button (3) to switch the flashlight on and off.
