08
5
4
+
GB
Technical data Subject to technical alterations. 09.2014
Accuracy ± 0.1%
Range 0 – 9,999.9 m
Circumference of measuring wheel 500 mm
Measuring wheel diameter 159 mm
Measuring wheel radius 79.5 mm
Dimensions (W x H x D)
124 x 1100 x 159 mm (extended) /
124 x 550 x 159 mm
Weight 550 g

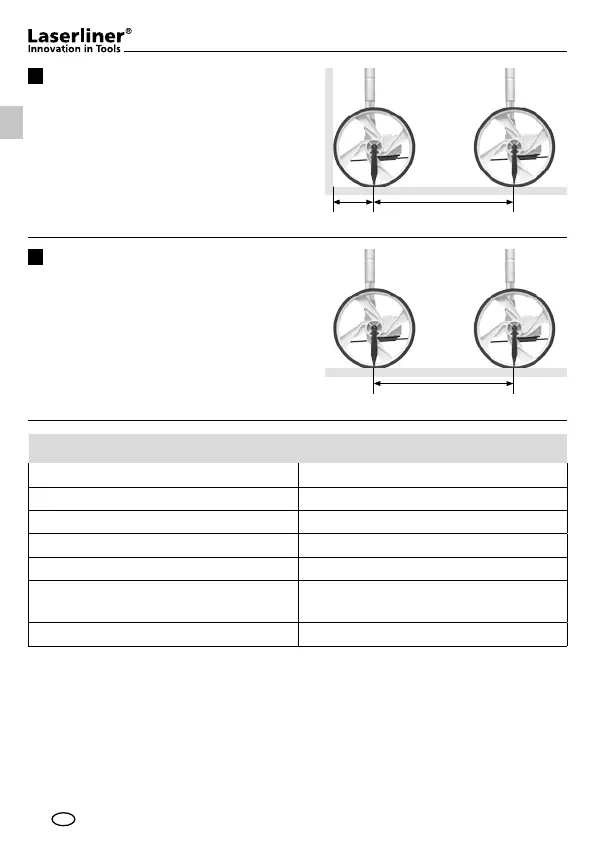

1. Position the pointer (7) on the rst
marked spot.
2. Move the measuring wheel straight
to the other marked spot.
3. Read off measured value.
To measure from spot to spot
Measurement
1. Position the device with the rear of
the measuring wheel against the
wall.
2. Move the measuring wheel straight
to the marked spot.
3. Read off the measured value and
add the radius of the wheel.
To measure from wall to spot
R Measurement
