SuperLine 2D
09
321
9
5
6
4
7
8
7
2

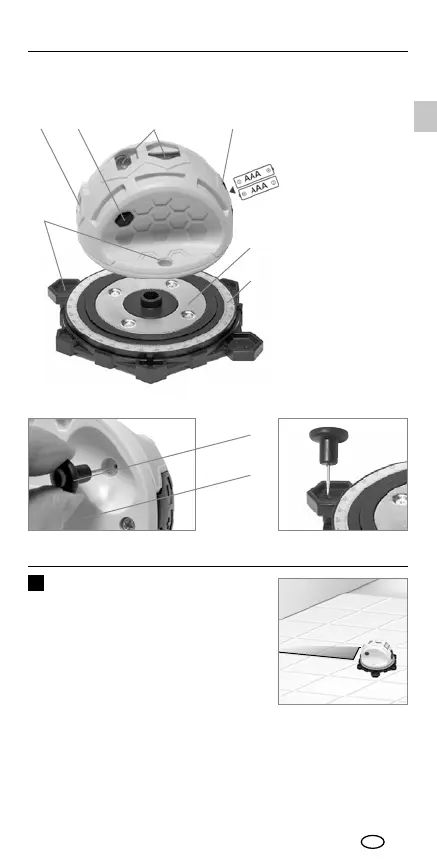

On-oor applications
Place the device with its base plate
on the oor and turn it on. The spirit
levels (3) are not needed for this type
of application. The spirit levels are not
adjusted to the supporting surface
(oor) therefore the unit cannot be
used as a level.
1
Laser output
opening
2
ON / OFF switch
3
Illuminated spirit
levels
4
Battery
compartment
5
Base plate
6
Scale ring
7
Special pins
8
Magnetised
device bott
9
Fastening points
for special pins
EN
