26
1
3
2
4
6
5
7
11
10
9
8
aa e b
3
8
c
e
d
f
f
g
h
i
j
GB
Read the operating instructions and the enclosed brochure „Guarantee and
additional notices“ completely. Follow the instructions they contain. Safely
keep these documents for future reference.
!
This thermographics camera allows for non-contact temperature measurement on
surfaces by means of radiation in the infrared wavelength range via the integrated
non-chilled microbolometer. The imaging technology of the sensor provides a visual
image of the temperatures surrounding the inspected object. The temperature
differences can be visualised by colour-coding the individual temperatures in a
thermogram with false colour display. At the same time, the additional digital camera
can capture images of the inspection area, which can then either documented later
in the device or processed further using the included software. Possible application
options include detecting thermal bridges and insulation aws, locating overheating
spots in electrical or mechanical building elements, nding heating pipes in walls or
oors, detecting leaks, locating defective solar cells in PV modules etc.

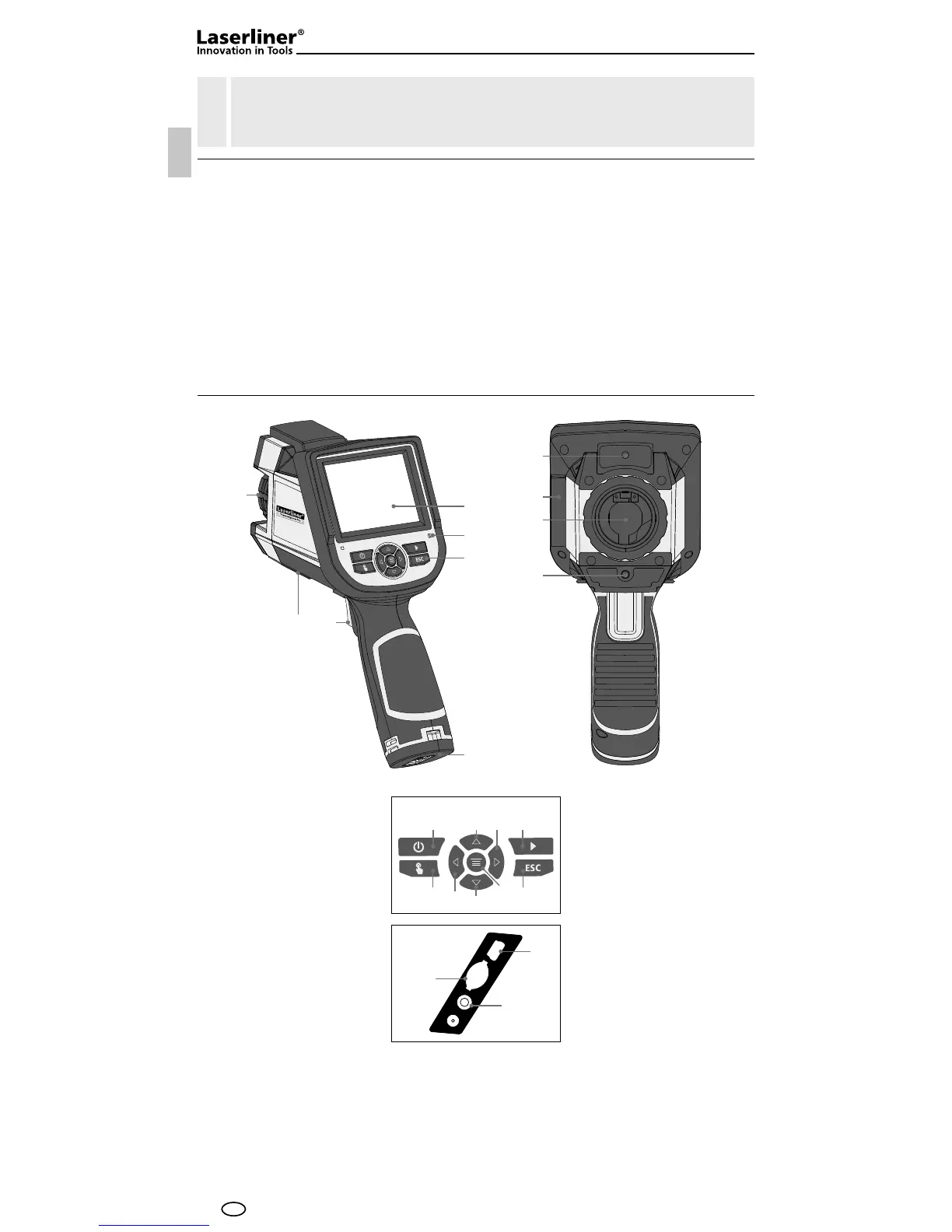

Function / Application
1 3.5“ TFT colour
display
2 Integrated
microphone
3 Hot keys
4 Battery compartment
5 Trigger:
Save
IR/CCD
Laser
Spot temperature
Area temperature
6 1/4" tripod
connection
7 Lens
8 Camera
9 Shaft
10 Infrared camera lens
11 Laser output
a ON/OFF
b Media gallery
c Select target objects
d Cancel
e Control menu /
Zoom on/off
f Control menu /
IR/digital image
changeover
g Main menu
h Micro-SD card slot
i USB interface
j Video output
