LaserPerformance Sunfish - Sunfish Mast Kit

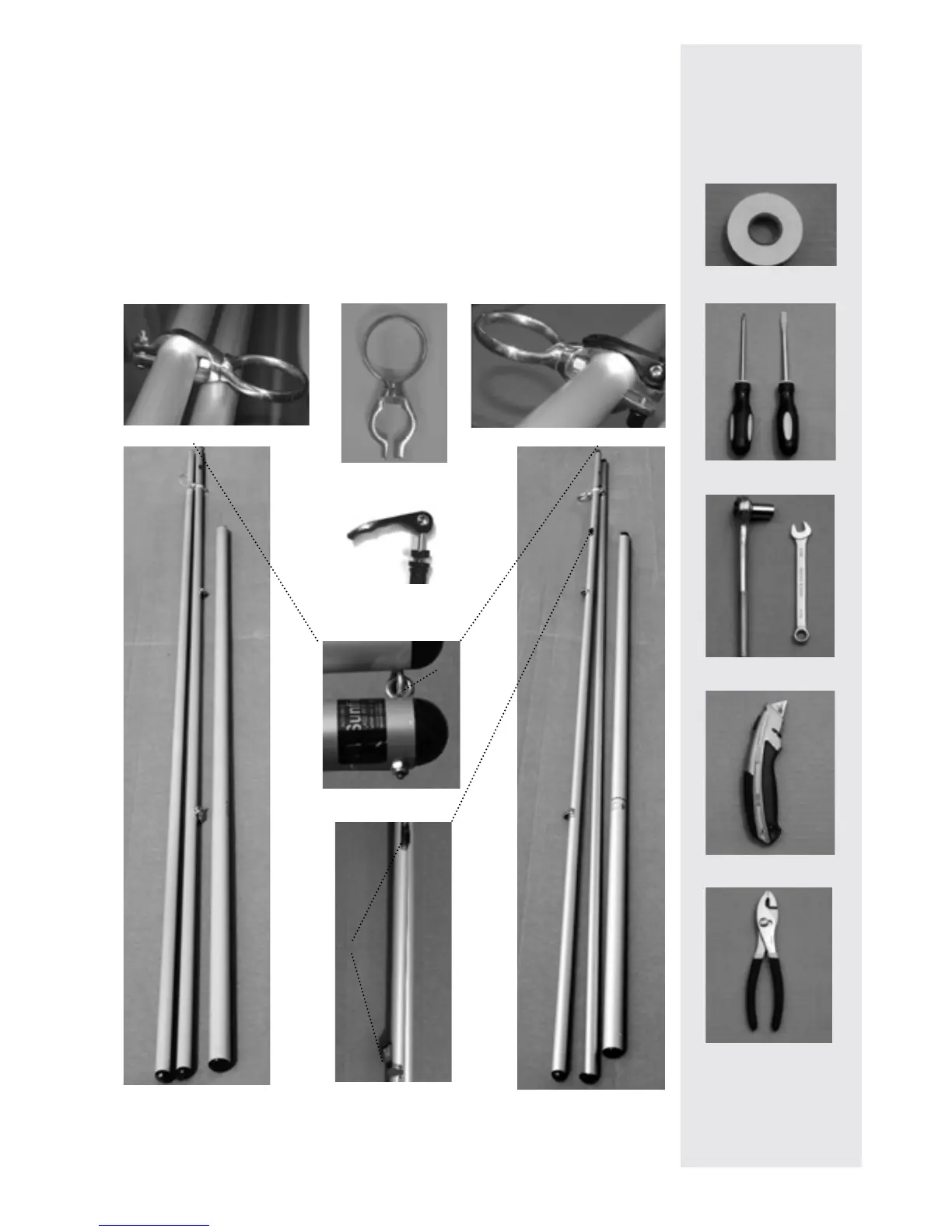

Locate the mast, upper and lower boom. e upper and lower boom will be connected at
one end with two interlocking eye bolts (figure 3). e gooseneck (figure 4) will come as
-
sembled on the lower boom. Depending on the model that you purchased, the gooseneck
bolt may dier in appearance. On the Sunfish Race model the gooseneck comes equipped
with a quick adjust lever (figure 5). is lever can easily be released in order to adjust the
positioning of the gooseneck on the lower boom. Also located on the Sunfish Race lower
boom are two outhaul clam cleats (figure 6).
3. Sunfish Mast Kit
Here is a list
of tools needed
to assemble your
new Sunfish:
ELECTRICAL TAPE
SCREWDRIVERS
WRENCHES
UTILITY KNIFE
PLIERS
Sunfish Mast Kit Standard Sunfish Mast Kit Race
figure 4
CLEATS
INTERLOCKING
EYE BOLTS
figure 5
figure 3
figure 6
STANDARD MAST AND BOOM SET
RACE MAST AND BOOM SET
Be sure to remove any bubble wrap and plastic coating before rigging.
