- 28 -
CD-
Elementy systemu domofonowego2500
E T-E T
Electronic casette
B+ B- PR R- R+
AC1 AC2
Accumulator
+
-
12V AC
E T-E T
B+ B- PR R- R+
AC1 AC2
AKUMULATOR
+
-
12V AC
E T-E T
B+ B- PR R- R+
AC1 AC2
Accumulator
+
-
12V AC
E T-E T
B+ B- PR R- R+
AC1 AC2
Accumulator
+
-
12V AC
Electromagnetic Lock
Power supply
TOUCH
MEMORY
A
B
C
D
A with DC electric door relase (3A max.) and emergency power supply
B with DC electric door relase (0.8A max.) and emergency power supply
C with AC electric door relase and one-coil transformer
D with electromagnetic lock and recommended independent emergency power supply for electromagnetic lock

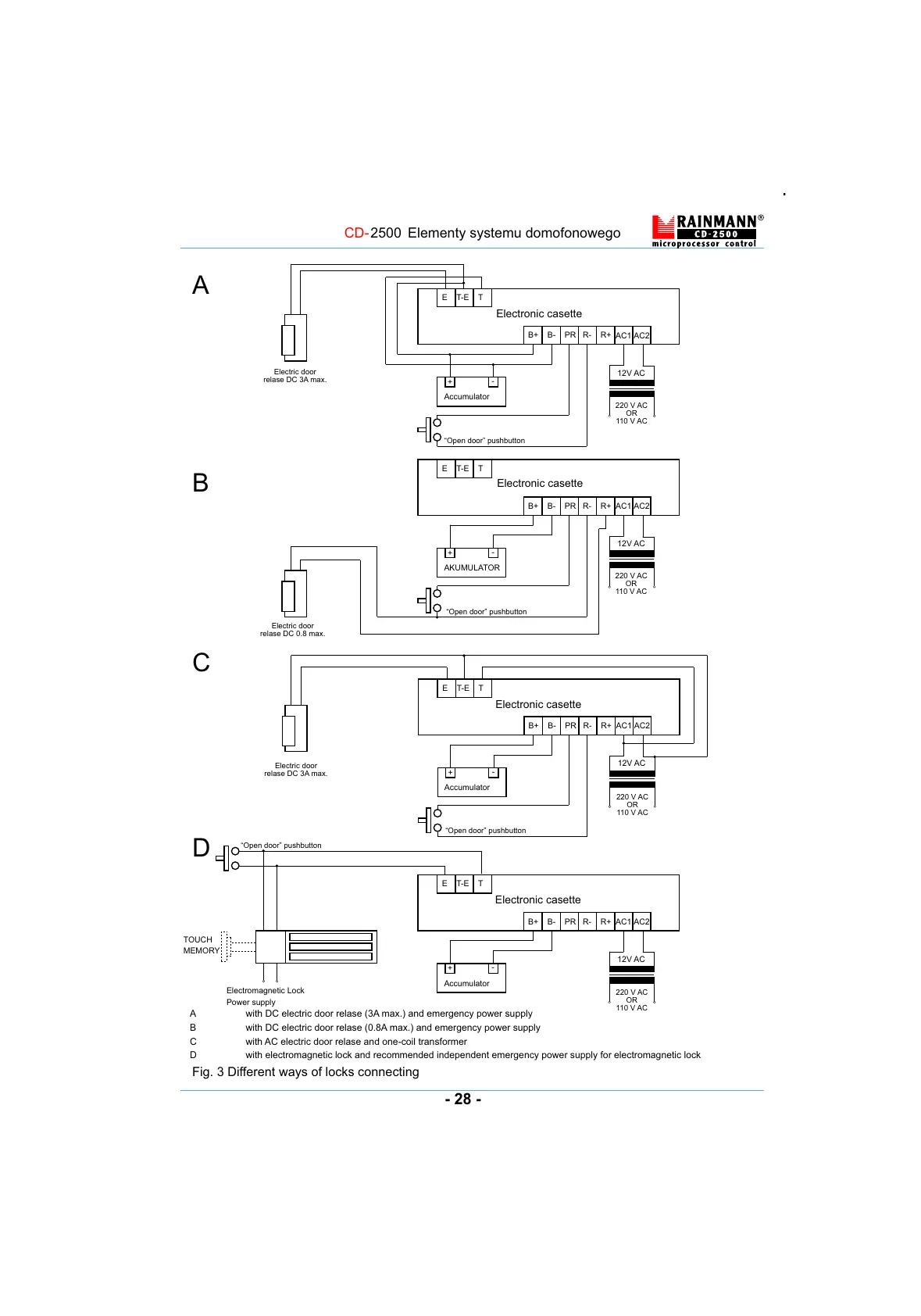

Fig. 3 Different ways of locks connecting
Electronic casette
Electronic casette
Electronic casette
Open door pushbutton
Open door pushbutton
Open door pushbutton
Open door pushbutton
Electric door
relase DC 3A max.
Electric door
relase DC 0.8 max.
Electric door
relase DC 3A max.
220 V AC
OR
110 V AC
220 V AC
OR
110 V AC
220 V AC
OR
110 V AC
220 V AC
OR
110 V AC
