Lastec 2961AGC - Lubrication Points and Belt Routing

Maintenance
Lubrication Points and Deck Belt Routing
5
5-10 Lastec//020515 Maintenance
5.16 Lubrication Points and Deck Belt Routing

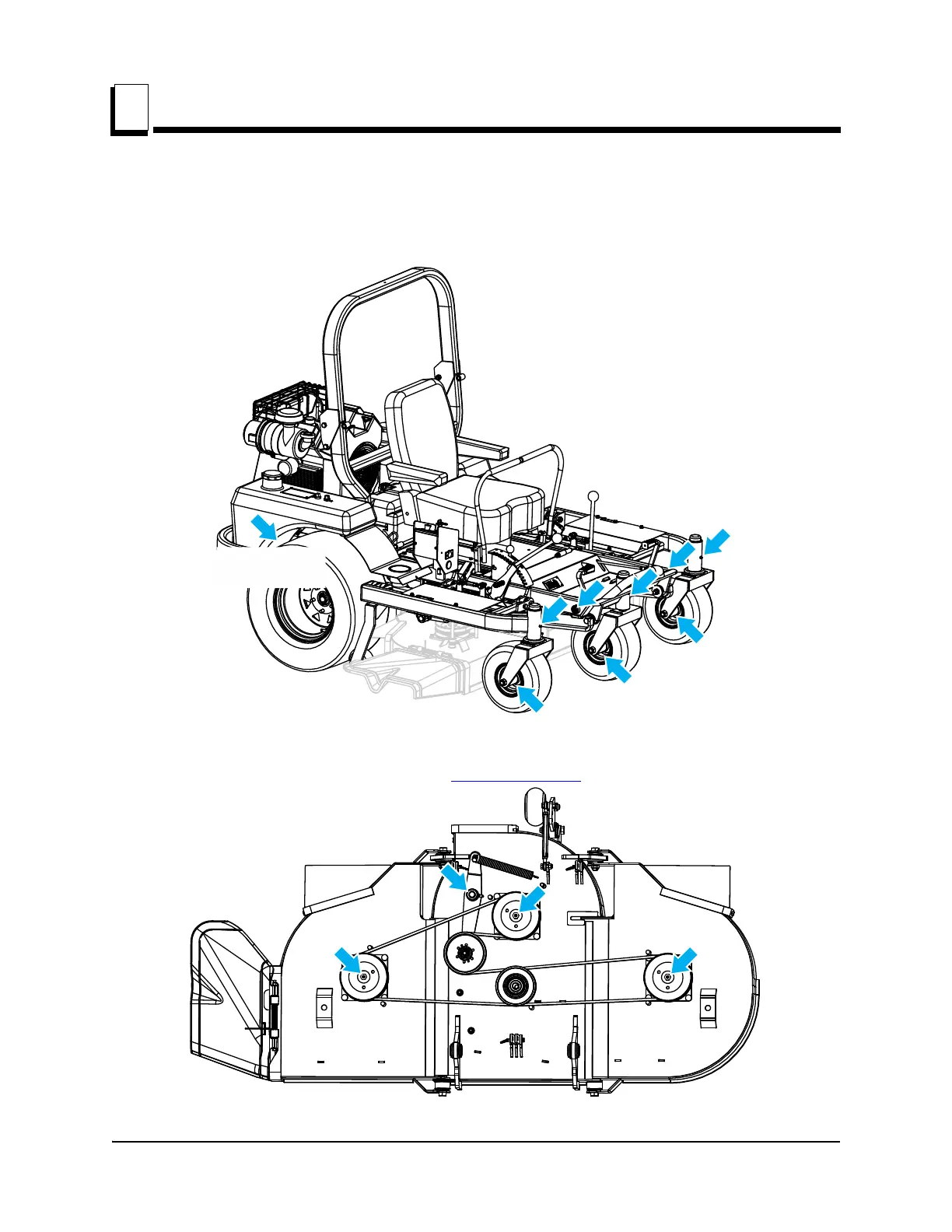

See Figure 5-1. The drive unit lubrications points are shown below. Lubricate every 8
hours of operation.
LT0093
Drive Belt Idler,
Lower Rear
See Figure 5-2. The deck lubrications points and deck belt routing are shown below.
Lubricate every 8 hours of operation.
See Section 5.13 for the deck belt part number.
LT0094
