Lastec 2961AGC - Hydraulic System Diagram

Maintenance
Hydraulic System Diagram
5
5-8 Lastec//020515 Maintenance

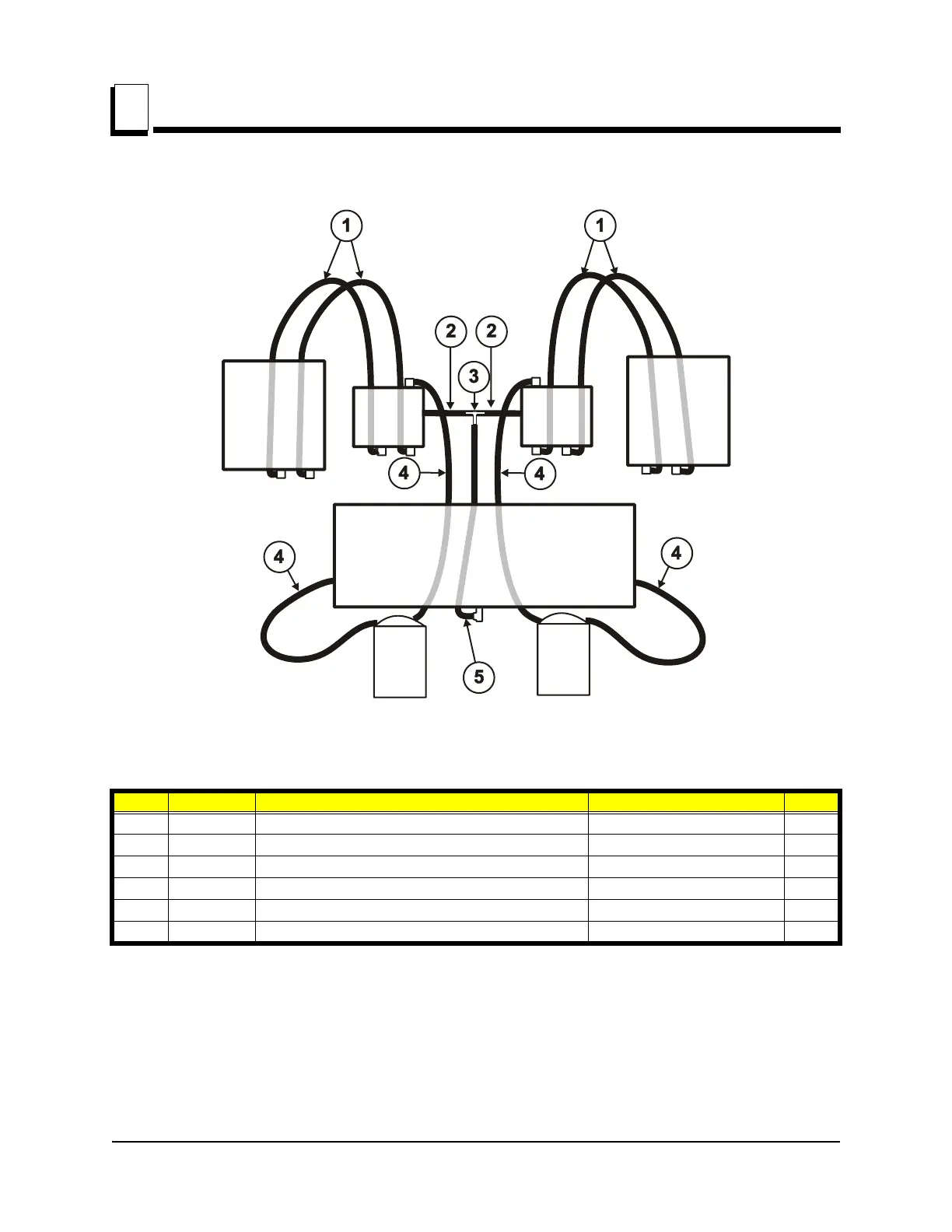

5.14 Hydraulic System Diagram
F
F
P
P
Tank
Motor
Motor
LT0104
REF PART # DESCRIPTION COMMENTS QTY.
1 041180 Hose Assembly, 26” OAL x 1/2” Hyd 4
2 045970 Hose, 3/8” Hyd x 3-1/4” Low Press 2
3 015485 Fitting, 3/8” Barb Tee 1
4 049857 Hose, 3/8” Hyd x 12” Low Pressure 4
5 045972 Hose, 3/8” Hyd x 9-1/2” Low Press 1
061807 Hose Clamp, Dixon Worm Gear HSS6 Not Shown 12
