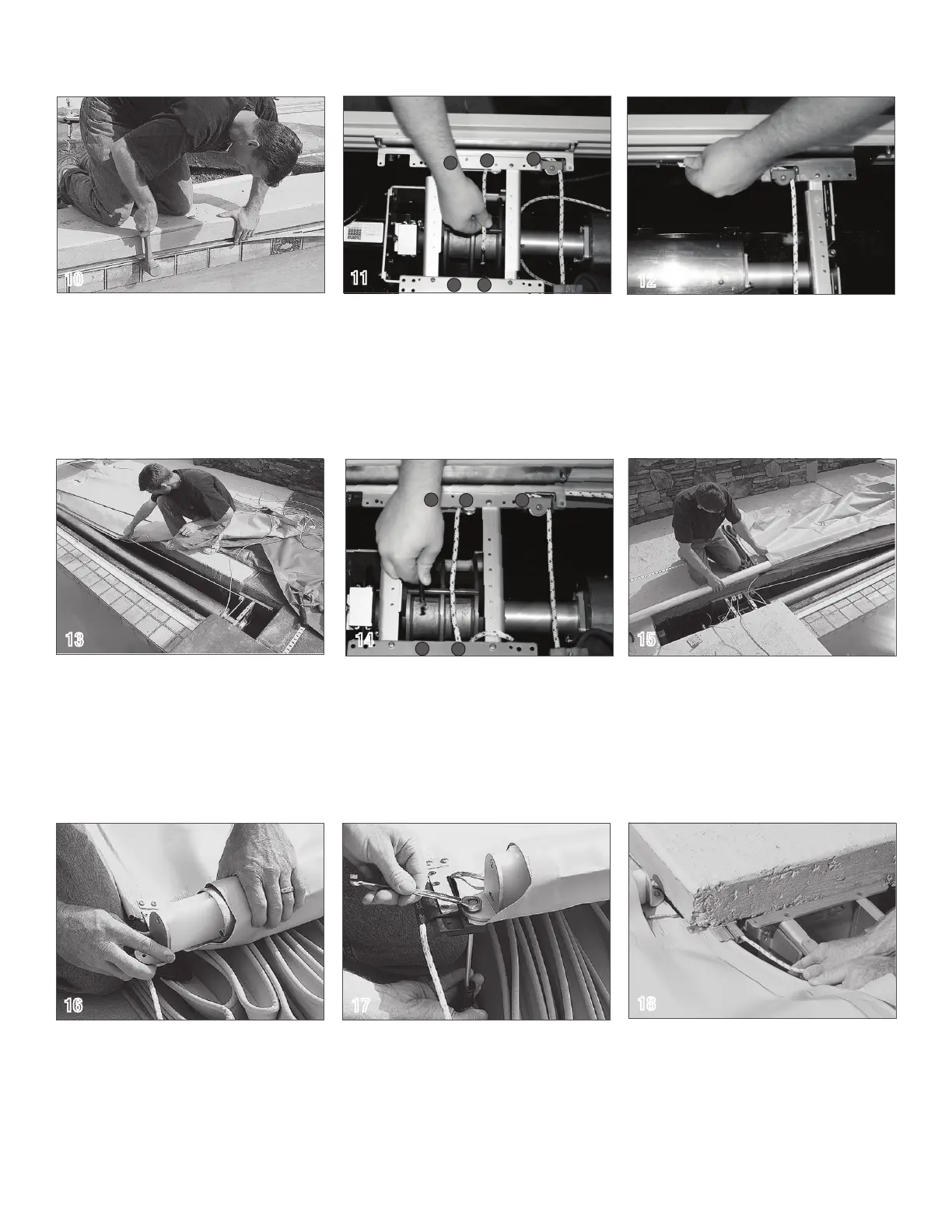

Insert and tap the spacer into place
underneath the track along the entire length
of the track. Do this along both sides of the
pool. The spacer needs to end at the inside
edge of the housing
Routing the Ropes
Begin on the motor end. Pull the rope from
the back channel of the track around pulleys
#1 and #2. Continue pulling the rope to the
front side of the mechanism. Run the rope
around pulley #4 with the rope coming off the
bottom of the pulley. Pull the slack out of the
rope.
On the non-motor end, run the rope from
the back channel of the track around the
pulley.
Pull the rope along the back of the housing
to the motor side.
Run the non-motor end rope behind the
motor end rope as it passes behind pulleys #1
and #2 and around pulley #3. Continue
pulling the rope to the front side of the
mechanism. Run the rope around pulley #5
with the rope coming off the bottom of the
pulley. Pull all the excess rope through and
lay it on the deck in front of the mechanism.
Attaching the Cover Leading Edge
Lay the front of the cover in front of the
housing. Slide the leading edge through the
loop on the front of the cover.
10
12
13
15
Place the nylon leading edge inserts (10) into
the ends of the leading edge tube. Make
sure they can slide freely inside the leading
edge tube. The grooves in the leading edge
insert should line up with the tongues in the
leading edge tube.
Secure the leading edge support bracket to
the slider by placing the 10-32 X 1” (41) screw
up through the slider, the hole in the front
corner of the cover, and through the support
bracket. Tighten completely using 10-32
nylock (29), then back the nut off 1⁄2 turn.
16 17
Pull the rope where it comes out of the track
as you feed the slider and cover into the track
a short distance. The guide feed should not
be installed on the cover track at this point.
18
© Latham Pool Products, Inc. 2019. All rights reserved.
Step By Step Instructions
Numbers in parenthesis refer to hardware shown on page 3.
11
1
2
5 4
3
14
12
5
4
3
