Mechanical Time Recorder User’s Guide
Page 11
Replacing the Type Section
If your type section needs servicing, you can easily remove and
replace it without sending the entire machine for service.

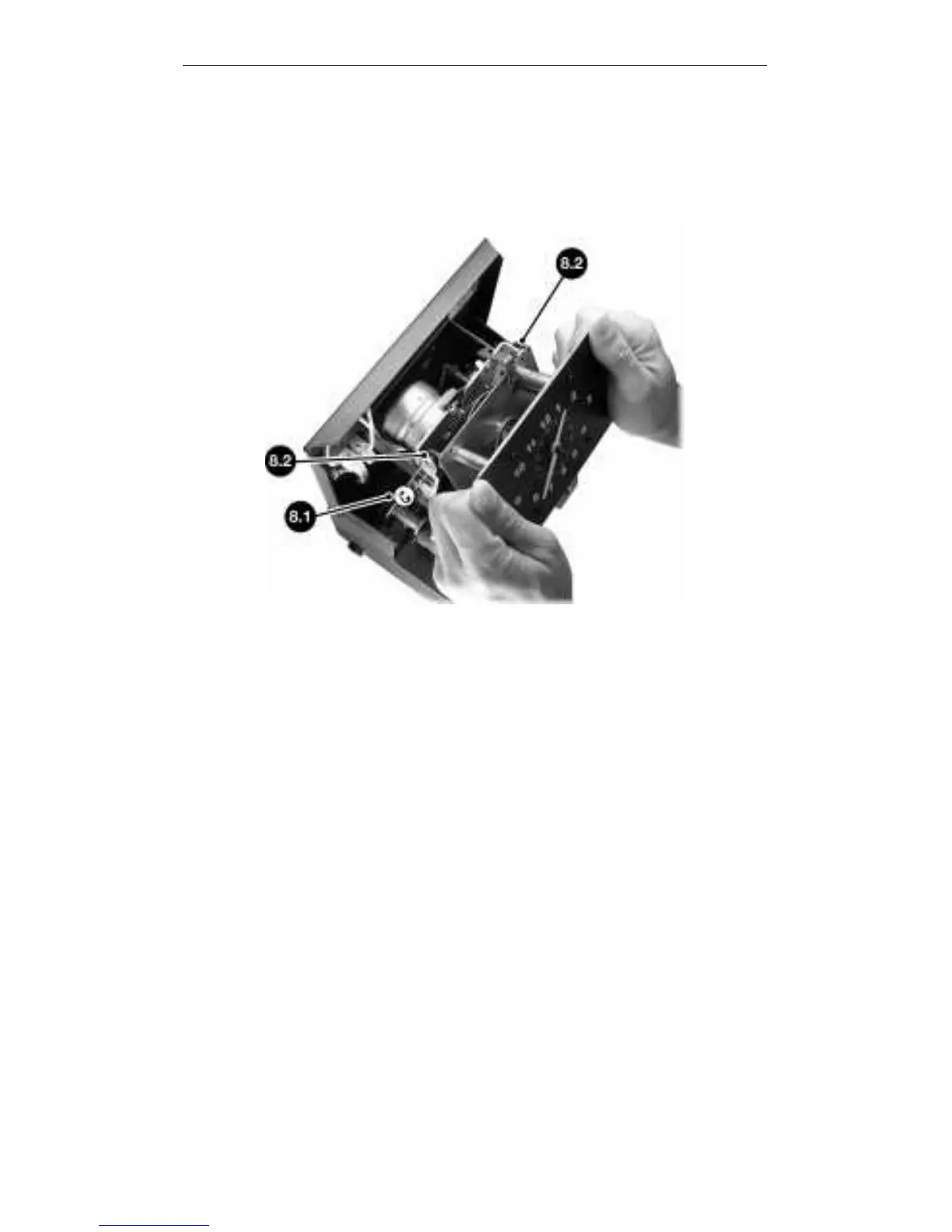

Figure 8
1. Remove the top cover.
2. Remove Type Section Retaining Ring – 8.1.
3. Unplug connectors if type section has digital time display
(not shown).
4. Lift type section slightly and move it to the right to
release Hinge Pins – 8.2 from their sockets. Unit will lift
out.
