3 Structure and function
3.1 Structure
3.1.1 Structure of the bath thermostat

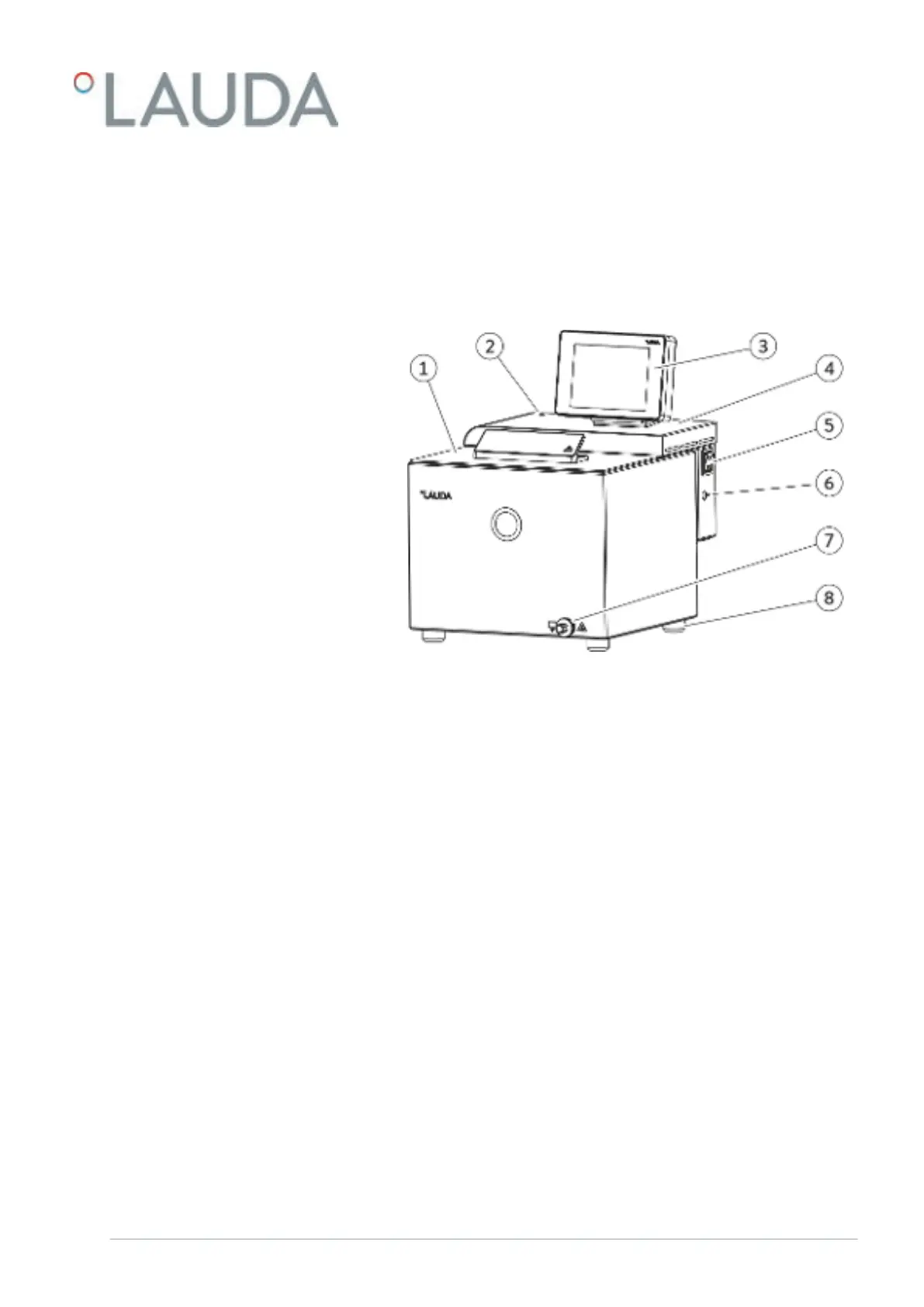

Fig. 1: Thermal bath thermostat, front view
1 Bath cover
2 Visual operation and fault indicator (LED)
3 Command Touch remote control unit
4 Component bridge
5 Mains switch
6 LiBus interface for connecting the operating unit
7 Draining nozzle for connecting a hose
8 4 feet
Front view
